Airtac Mini cylinder MAL series Aluminium barrel MAL 25*100 Double acting

MAL series cylinders have different bore and storkes. Bore: 20mm, 25mm, 30mm, 40mm. Stroke: From 25mm to 500mm are all available.

Quantity:
  • MAL 25*100
  • Airtac
  • 0013
  • Aluminium
  • 25mm
  • 100mm
  • 0.1~1.0MPa
  • -10 to +70℃
  • Bumper
1: Product Name: Airtac Mini cylinder MAL series Aluminium barrel MAL 25*100 Double acting

2: Order Code
order code3: Product Features

1.Manufactured by our enterprise.
2.Piston adopts heterogeneous two-way seal structure. It has compact size and has the function of grease reservation.
3.There are several modes of back cover, which makes the installation of cylinder more convenient.
4.Front and back cover and cylinder tube are connected by threads.
5.Front cover adopts self-lubrication bearing guide that has good performance of lubrication and guide.
6.There are cylinders and mounting accessories with several specifications for your choice.
4: Specification
Bore size(mm) 20 25 32 40
Acting type MSAL, MTAL Singel actiong
Others Double actiong
Fluid Air (to be filtered by 40 μm filter element)
Operating pressure Double acting 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Single actiong 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature ℃ -20~70
Speed range mm/s Double actiong: 30~800  Single actiong: 50~800
Stroke tolerance 0~150(+1.0 0)>150(+1.0 0)
Cushion type Bumper
Port size 1/8" 1/4"
5: Structures
1. MAL series cylinders
MAL dimension
2. MSAL series cylinders

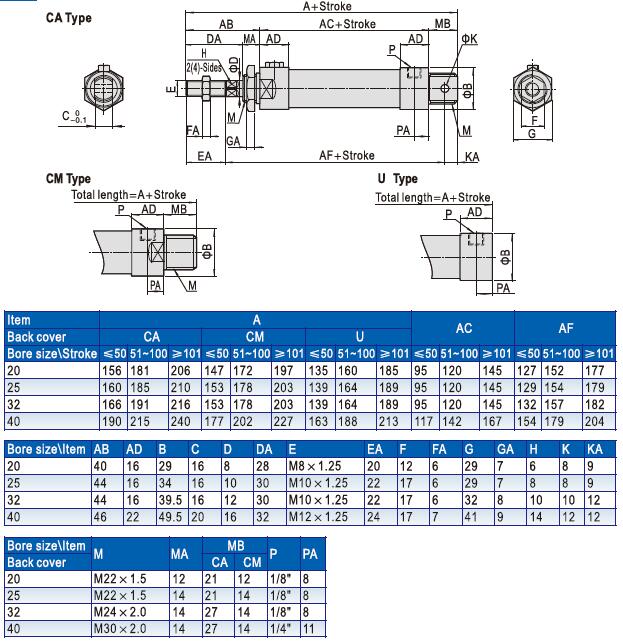

MSAL dimension
6: Installation usage
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. The medium used by cylinder shall be filtered to 40μm or below.
5. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
6. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
7. To avoid side load, otherwise, piston rod will be bent and deformed and damage the thread at the end of the rod. Single-acting type can not be added in return.
8. If the cylinder is dismantled and stored for a long time, please to conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.
7: Serves time
0:00 - 23:59
From Monday to Sunday
8: After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
9: Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
