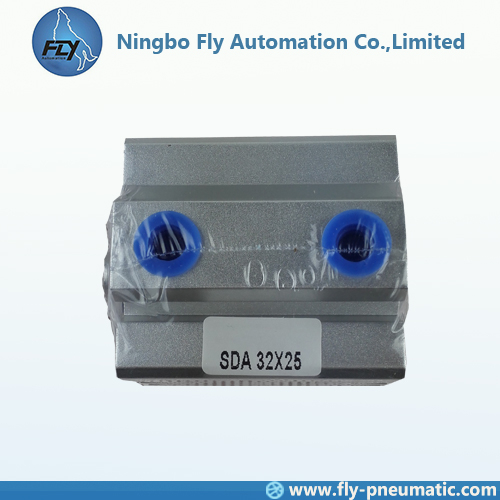

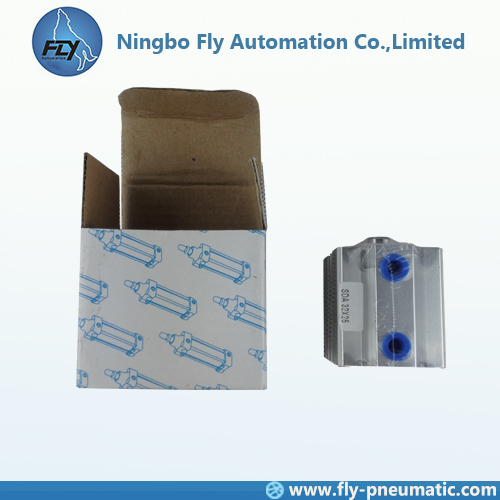

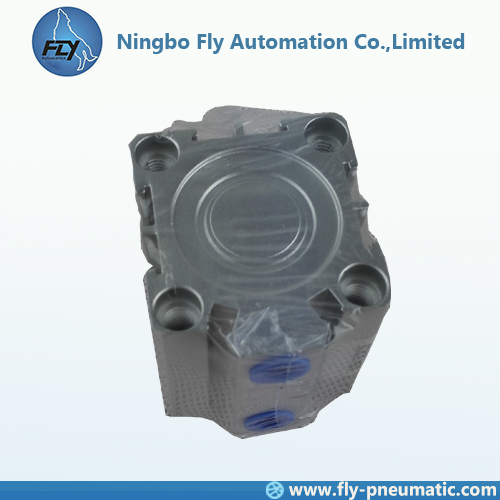

Airtac SDA series Compact cylinder SDA 32x25 Double acting type

If you want a compact cylinder with adjust stroke, you can choose the type SDAJ series. If you want a single acting-push cylinder, you can choose the type SSA series. If you want a single acting-pull cylinder, you can choose the type STA series. If you want a double-rod cylinder, you can choose the type SDAD series.

Quantity:
  • SDA 32x25
  • Airtac
  • 0014
  • Aluminium
  • 32mm
  • 25mm
  • -10 to +70℃
  • 0.1~1.0MPa
  • Bumper
1: Product Name: Airtac SDA series Compact cylinder SDA 32x25 Double acting type

2: Order Code

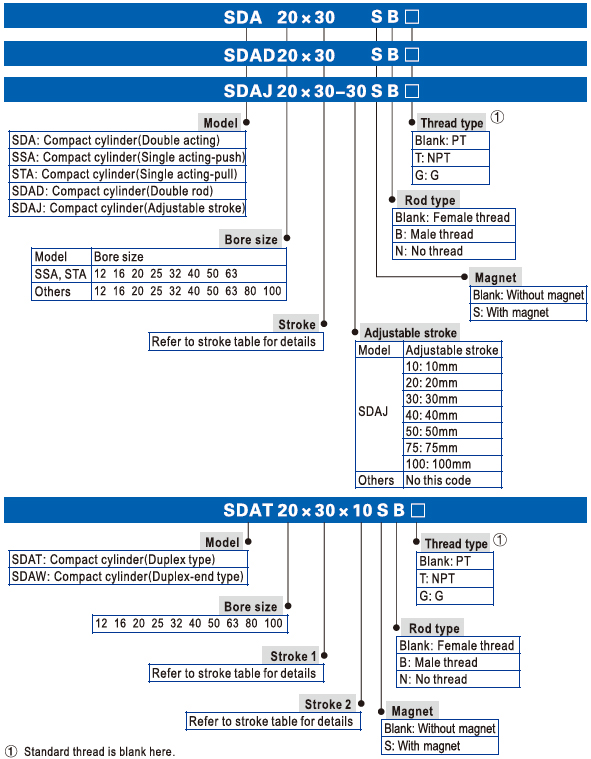

order code3: Specification

Bore size(mm) 12 16 20 25 32 40 50 63 80 100
Acting type Double acting
Single acting-Push type, Single acting-Pull type
Fluid Air (to be filtered by 40 μm filter element)
Operating pressure Double acting 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Single acting 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature  °c -20~80
Speed range mm/s Double acting 30~500  Single acting: 50~500
Cushion type Bumper
Port size M5 X 0.8 1/8" 1/4" 3/8"
4: Product Features
1. Manufactured by our enterprise;
2. Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable;
3. The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability;
4. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation;
5. Compact structure can effectively save installation space;
6. There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch;
7. Mounting accessories with various specifications are optional.
5: Installation Usage
1. According to the operating load, the suitable cylinder bore size. Under the high-temperature environment, use the high-temperature type cylinder.
2. Before fitting correct fittings in, make sure the thread ports and fittings are clean. Be aware of dust or fitting tap falling into the cylinder.
3. It is suggested to use the medium lubricated by 40um filter element.
4. Under the low-temperature environment, take measures to avoid frozen fluid inside system.
5. In order for the cylinder to achieve long service life, do not side-load cylinder.
6. If the fittings were removed from the cylinder for a period of time, be sure to block the thread port with protecting cap to keep the dust away.
6: Structure and Dimension

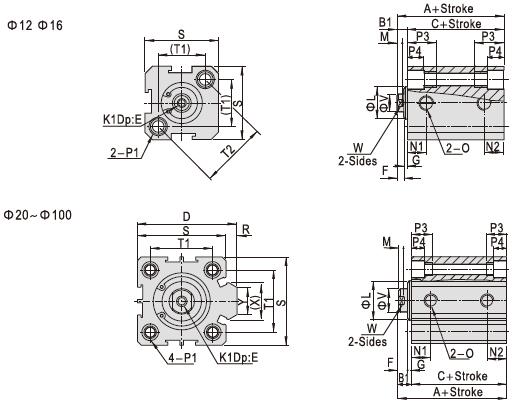

structure
dimension
7: Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
8: Serves time
0:00 - 23:59
From Monday to Sunday
9: After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
