BF3000
Airtac

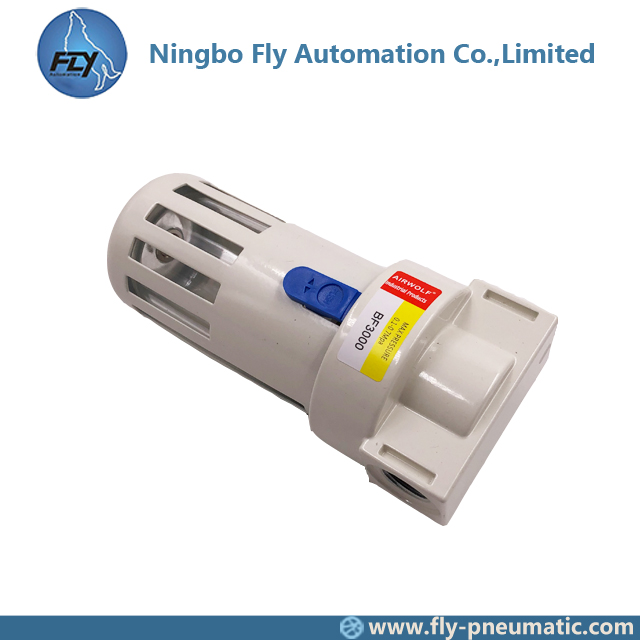

1. Product name: BF3000 Airtac Preparation unit 3/8 inch Pneumatic Components Air source Aluminum alloy Filter
2. Drawing
3. Product feature
AF Series
1. The structure is delicate and compact.
2. The pressure loss is low and the efficiency of water separating is high;
3. The filter precision includes 5 u m and 40 u m(optional);
BF Series
1. The pressure loss is low and the efficiency of water separating is high.
2. The bowl has high-strength plastic shields outside ,which is more safe and reliable to use.3. The filter precision includes 5 u m and 40 u m(optional).
4. Specification
Model | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
Fluid | Air | ||||
Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
Filtering grade | 40μm or 5 μm | ||||
Pressure range | Semi-auto and automatic drain: 0.15~1.0MPa(20~145Psi) Manual drain: 0~1.0Mpa(0~145Psi) | ||||
Prof pressure | 1.5MPa(215Psi) | ||||
Temperature range | 5~70℃(unfreeze) | ||||
Capacity of drain bowl | 15CC | 60CC | |||
Weight | 140g | 330g |
5. Order code
6. Inner structure
No. | Item | Material | No. | Item | Material | |
1 | Drain bowl O-ring | NBR | 8 | Drain pillar | POM | |
2 | Body | Aluminum alloy | 9 | Return spring | Stainless steel | |
3 | Filter element | 5μm | Makrolon fiber | 10 | Gasket | POM |
40μm | Agglomerated by bronze grain | 11 | Air guider | POM | ||
4 | Umbrella baffle | POM | 12 | Bowl guard switch | POM | |
5 | Drain bowl | PC | 13 | Bowl guard | PA6 | |
6 | Drain kit | POM | 14 | Drain seat O-ring | NBR | |
7 | Drain seat | POM | 15 | Clip | Spring steel |
7. Other products
Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
8. Product show
9. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
