1. Product name: BFC3000 Airtac Pneumatic Components control source treatment unit 3/8" BFC series Aluminum alloy precision Regulator filter
2. Order code
3. Drawing
4. Specification
| Model | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Filtering grade | 40μm or 5 μm | ||||
| Pressure range | Semi-auto and automatic drain: 0.15~0.9MPa(20~130Psi) Manual drain: 0.05~0.9Mpa(7~130Psi) | ||||
| Max. pressure | 1.0MPa(145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣5~70℃(unfreeze) | ||||
| Capacity of drain bowl | 15CC | 60CC | |||
| Capacity of oil bowl | 25CC | 90CC | |||
| Recommend lubricant | ISO VG 32 or equivalent | ||||
| Weight | 500g | 700g | |||
| Constitute | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |

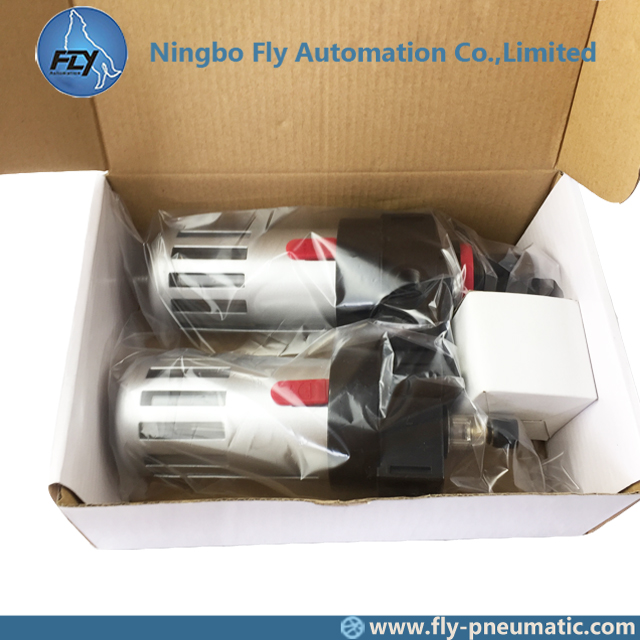

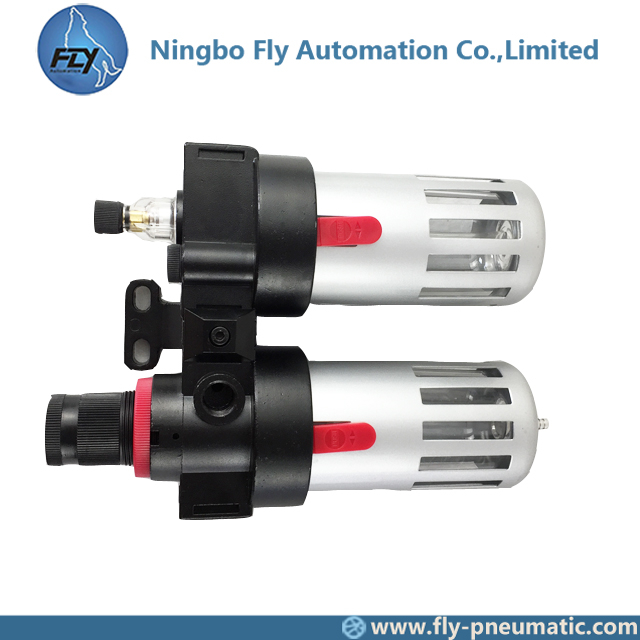

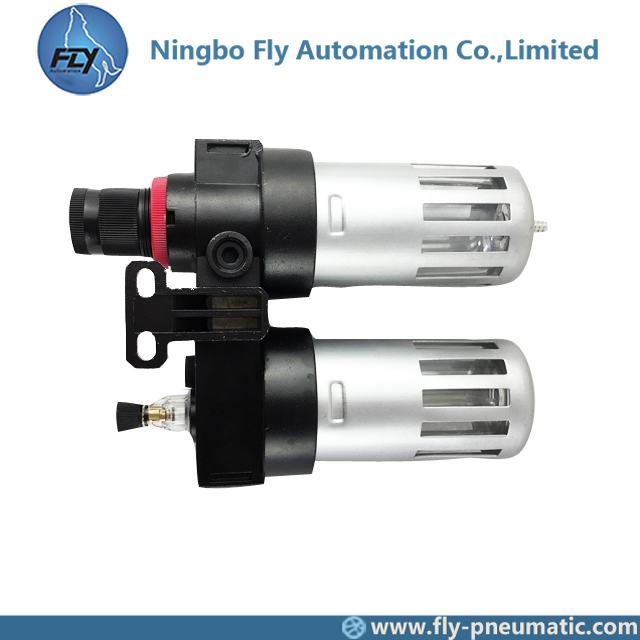

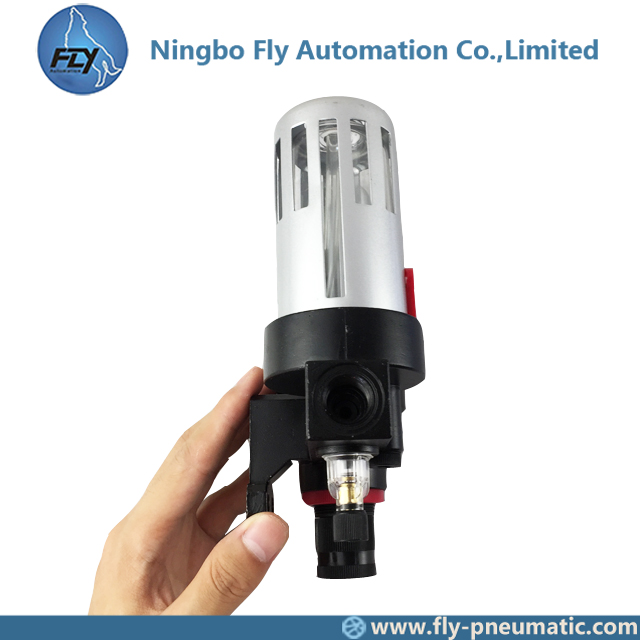

5. Product show
6. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
7. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
8. Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high. .
4. The quantity of oil dripping can be directly observed through transparent check dome.
5. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0. 4MPa).
9. Inner structure
| No. | Item |
| 1 | AFR, BFR Series filter & regulator |
| 2 | A, B Series bracket |
| 3 | A, B Series gasket |
| 4 | A, B Series fixed kit |
| 5 | Screw |
| 6 | AL, BL Series lubricator |
