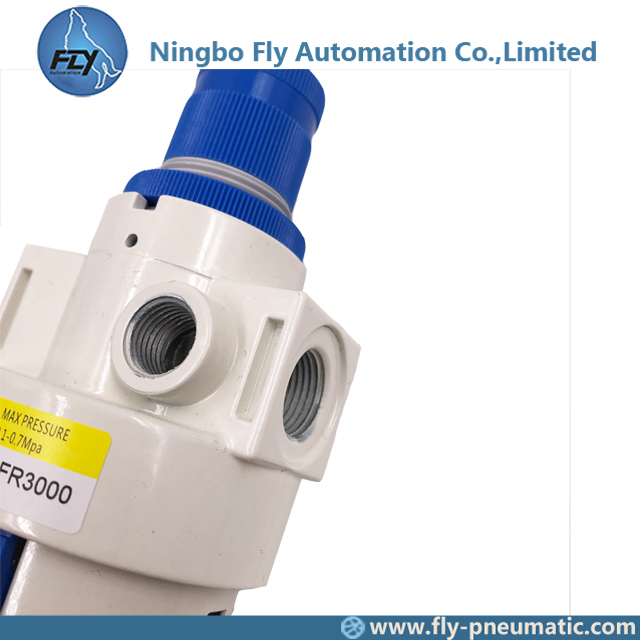

1. Product name: BFR3000 Airtac automatic air group unit 3/8" BFR series source control precision Filter Regulator
2. Inner structure
| No. | Item | Material | No. | Item | Material | |
| 1 | Push button | POM | 14 | Drain kit | POM | |
| 2 | Adjusting button | POM | 15 | Return spring | Stainless steel | |
| 3 | Adjusting nut | Steel | 16 | Drain seat | POM | |
| 4 | Adjusting seat | POM | 17 | Drain pillar | POM | |
| 5 | Adjust spring | SWC | 18 | Drain O-ring | NBR | |
| 6 | Flxed ring | POM | 19 | Filter element | 5μm | Makrolon fiber |
| 7 | Body | Aluminum alloy | 40μm | Agglomerated by bronze grain | ||
| 8 | Diaphragm | SUS304 & rubber | 20 | Return spring | Stainless steel | |
| 9 | Balance needle | POM | 21 | Drain bowl O-ring | NBR | |
| 10 | Needle gasket | Aluminum alloy & rubber | 22 | Needle O-ring | NBR | |
| 11 | Air guider | POM | 23 | Bowl guard switch | POM | |
| 12 | Umbrella baffle | POM | 24 | Gasket | POM | |
| 13 | Drain bowl | PC | 25 | Bowl guard | PA66 | |
| 26 | Clip | Spring steel | ||||
3. Specification
| Model | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Filtering grade | 40μm or 5 μm | ||||
| Pressure range | Semi-auto and automatic drain: 0.15~0.9MPa(20~130Psi) Manual drain: 0.05~0.9Mpa(7~130Psi) | ||||
| Max. pressure | 1.0MPa(145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣5~70℃(unfreeze) | ||||
| Capacity of oil bowl | 15CC | 60CC | |||
| Weight | 260g | 400g | |||
4. Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high;4. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).
