1. Product name: BFR4000 Airtac automatic Air source treatment unit 1/2" BFR series precision Pneumatic Components Filter Regulator
2. Inner structure
| No. | Item | Material | No. | Item | Material | |
| 1 | Push button | POM | 14 | Drain kit | POM | |
| 2 | Adjusting button | POM | 15 | Return spring | Stainless steel | |
| 3 | Adjusting nut | Steel | 16 | Drain seat | POM | |
| 4 | Adjusting seat | POM | 17 | Drain pillar | POM | |
| 5 | Adjust spring | SWC | 18 | Drain O-ring | NBR | |
| 6 | Flxed ring | POM | 19 | Filter element | 5μm | Makrolon fiber |
| 7 | Body | Aluminum alloy | 40μm | Agglomerated by bronze grain | ||
| 8 | Diaphragm | SUS304 & rubber | 20 | Return spring | Stainless steel | |
| 9 | Balance needle | POM | 21 | Drain bowl O-ring | NBR | |
| 10 | Needle gasket | Aluminum alloy & rubber | 22 | Needle O-ring | NBR | |
| 11 | Air guider | POM | 23 | Bowl guard switch | POM | |
| 12 | Umbrella baffle | POM | 24 | Gasket | POM | |
| 13 | Drain bowl | PC | 25 | Bowl guard | PA66 | |
| 26 | Clip | Spring steel | ||||

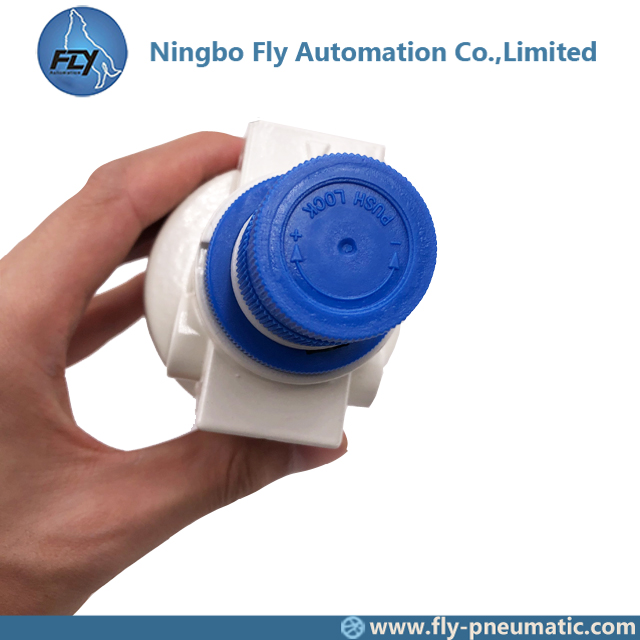

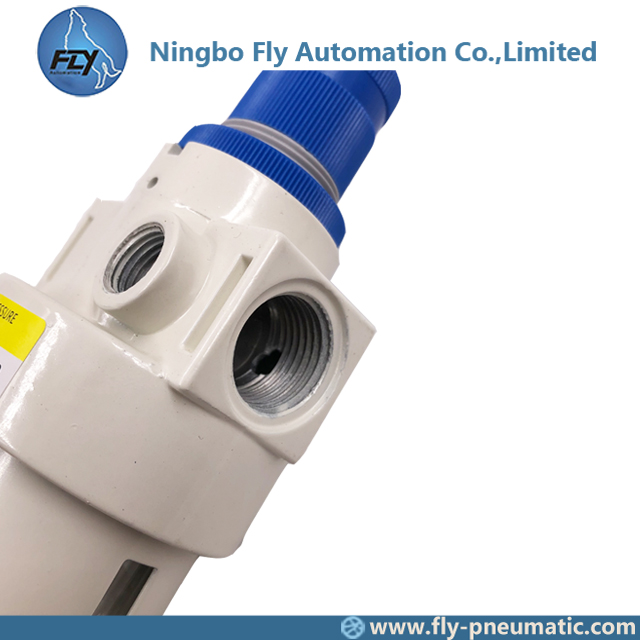

3. Product show

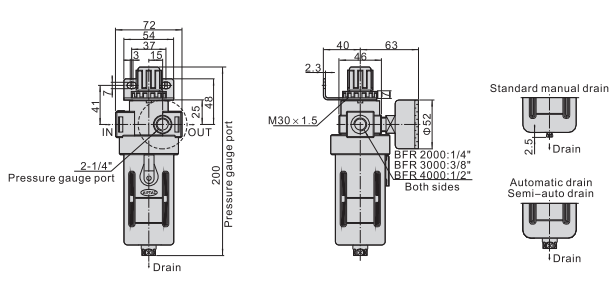

4. Drawing

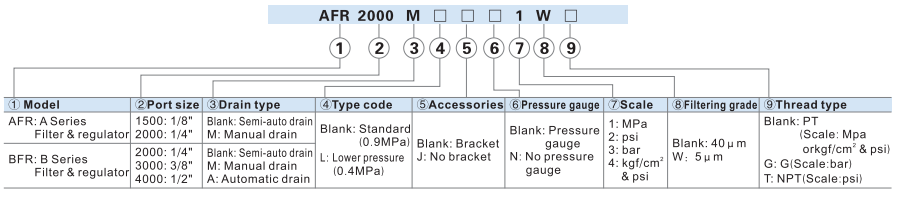

5. Order code
6. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
7. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
8. Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high;4. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).
9. Specification
| Model | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Filtering grade | 40μm or 5 μm | ||||
| Pressure range | Semi-auto and automatic drain: 0.15~0.9MPa(20~130Psi) Manual drain: 0.05~0.9Mpa(7~130Psi) | ||||
| Max. pressure | 1.0MPa(145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣5~70℃(unfreeze) | ||||
| Capacity of oil bowl | 15CC | 60CC | |||
| Weight | 260g | 400g | |||
