1. Product name: BL2000 Airtac precision BR series automatic Air source 1/4" Aluminum Preparation unit group Lubricator
2. Drawing
3. Product feature
1. The structure is delicate and compact.
2. The quantity of oil dripping can be directly observed through transparent inspection sheet.
3. BL has high-strength plastic shields, which is more safe and reliable to use.4. The pressure loss and the flow of miststart is low.
4. Order code
5. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |

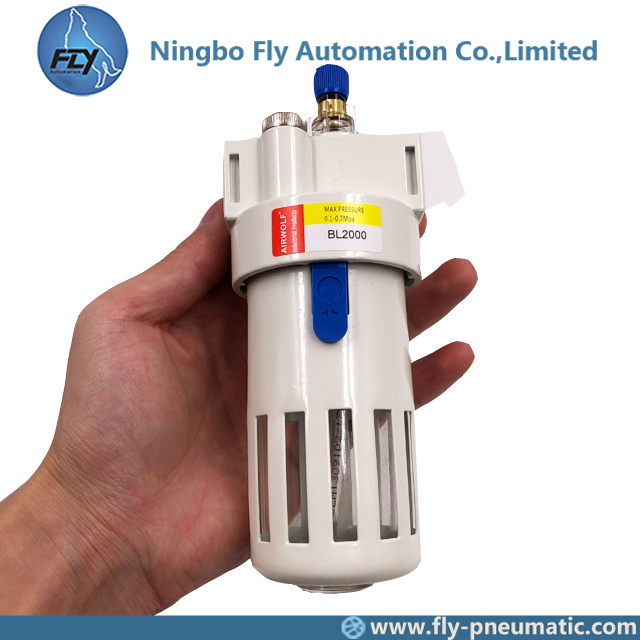

6. Product show
7. Specification
| Model | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Pressure range | 0.05~1.0MPa(7~145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣5~70℃(unfreeze) | ||||
| Capacity of oil bowl | 25CC | 90CC | |||
| Recommend lubricant | ISO VG 32 or equivalent | ||||
| Weight | 170g | 250g | |||
8. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
9. Inner structure
| No. | Item | Material | No. | Item | Material |
| 1 | Drip pipe | PC | 13 | Ball | Stainless steel |
| 2 | Dripper O-ring | NBR | 14 | Lubricator fixed plate | SPCC |
| 3 | Oil adjusting dial | POM | 15 | Oil bowl O-ring | NBR |
| 4 | Adjusting ring | NBR | 16 | Body | Aluminum alloy |
| 5 | Lubricator seat | POM | 17 | Oil filling nut O-ring | NBR |
| 6 | Partition | PU | 18 | Oil filling plug | Steel |
| 7 | Lubricator kit gasket | NBR | 19 | Needle spring | Stainless steel |
| 8 | Adjustor | HDPE | 20 | Injector pin | Bronze |
| 9 | Return spring | Stainless steel | 21 | Check-dome | PC |
| 10 | Oil bowl | PC | 22 | Bowl guard switch | POM |
| 11 | Sunk tube | PU | 23 | Bowl guard | PA6 |
| 12 | Lubricator kit | POM |
