BL3000
Airtac
1. Product name: BL3000 precision Airtac Air source BR series control unit 1/4" unit group Lubricator
2. Specification
| Model | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Pressure range | 0.05~1.0MPa(7~145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣5~70℃(unfreeze) | ||||
| Capacity of oil bowl | 25CC | 90CC | |||
| Recommend lubricant | ISO VG 32 or equivalent | ||||
| Weight | 170g | 250g | |||
3. Order code
4. Product feature
1. The structure is delicate and compact.
2. The quantity of oil dripping can be directly observed through transparent inspection sheet.
3. BL has high-strength plastic shields, which is more safe and reliable to use.4. The pressure loss and the flow of miststart is low.

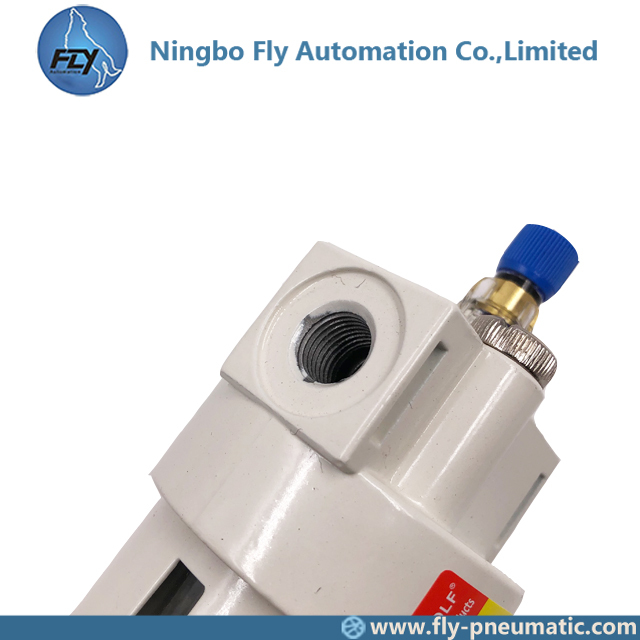

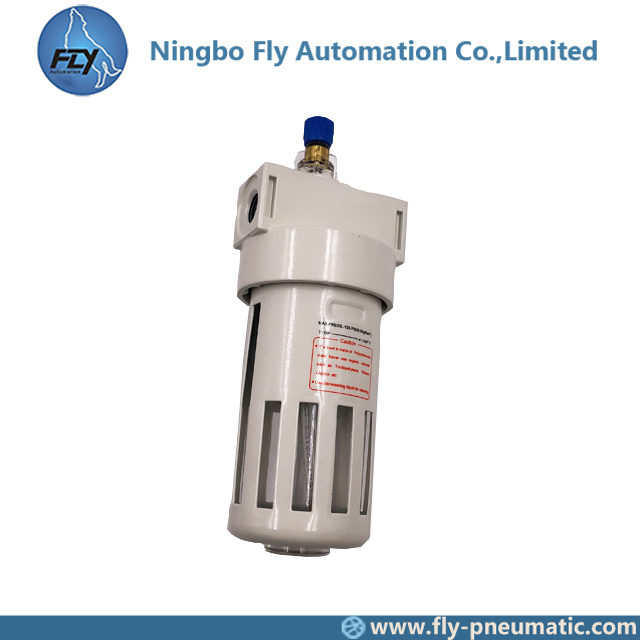

5. Product show
6. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
7. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
8. Inner structure
| No. | Item | Material | No. | Item | Material |
| 1 | Drip pipe | PC | 13 | Ball | Stainless steel |
| 2 | Dripper O-ring | NBR | 14 | Lubricator fixed plate | SPCC |
| 3 | Oil adjusting dial | POM | 15 | Oil bowl O-ring | NBR |
| 4 | Adjusting ring | NBR | 16 | Body | Aluminum alloy |
| 5 | Lubricator seat | POM | 17 | Oil filling nut O-ring | NBR |
| 6 | Partition | PU | 18 | Oil filling plug | Steel |
| 7 | Lubricator kit gasket | NBR | 19 | Needle spring | Stainless steel |
| 8 | Adjustor | HDPE | 20 | Injector pin | Bronze |
| 9 | Return spring | Stainless steel | 21 | Check-dome | PC |
| 10 | Oil bowl | PC | 22 | Bowl guard switch | POM |
| 11 | Sunk tube | PU | 23 | Bowl guard | PA6 |
| 12 | Lubricator kit | POM |
9. Drawing
