1. Product name: BL4000 precision Airtac group unit DN15 Air source BR series Pneumatic Components Lubricator

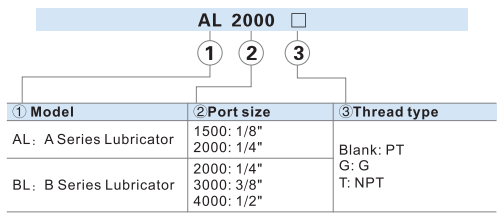

2. Order code
3. Product feature
1. The structure is delicate and compact.
2. The quantity of oil dripping can be directly observed through transparent inspection sheet.
3. BL has high-strength plastic shields, which is more safe and reliable to use.4. The pressure loss and the flow of miststart is low.

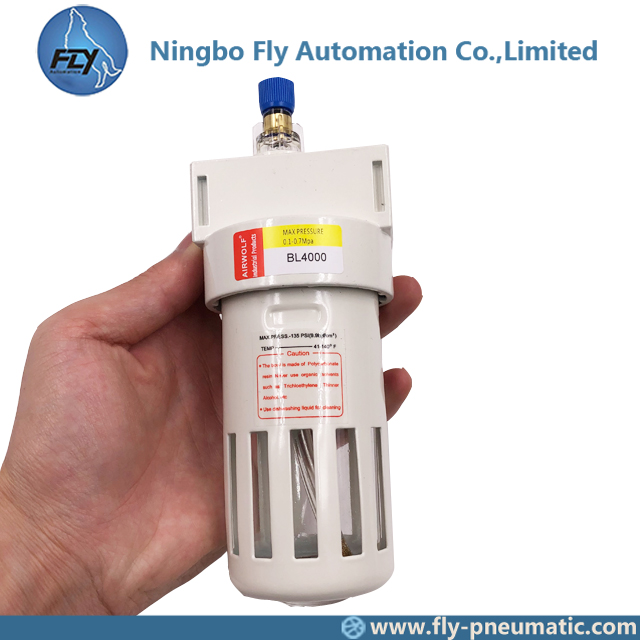

4. Product show
5. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
6. Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
7. Specification
| Model | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Pressure range | 0.05~1.0MPa(7~145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣5~70℃(unfreeze) | ||||
| Capacity of oil bowl | 25CC | 90CC | |||
| Recommend lubricant | ISO VG 32 or equivalent | ||||
| Weight | 170g | 250g | |||

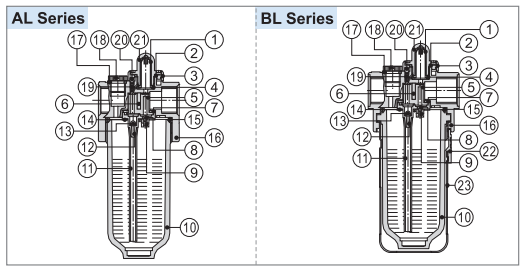

8. Inner structure
| No. | Item | Material | No. | Item | Material |
| 1 | Drip pipe | PC | 13 | Ball | Stainless steel |
| 2 | Dripper O-ring | NBR | 14 | Lubricator fixed plate | SPCC |
| 3 | Oil adjusting dial | POM | 15 | Oil bowl O-ring | NBR |
| 4 | Adjusting ring | NBR | 16 | Body | Aluminum alloy |
| 5 | Lubricator seat | POM | 17 | Oil filling nut O-ring | NBR |
| 6 | Partition | PU | 18 | Oil filling plug | Steel |
| 7 | Lubricator kit gasket | NBR | 19 | Needle spring | Stainless steel |
| 8 | Adjustor | HDPE | 20 | Injector pin | Bronze |
| 9 | Return spring | Stainless steel | 21 | Check-dome | PC |
| 10 | Oil bowl | PC | 22 | Bowl guard switch | POM |
| 11 | Sunk tube | PU | 23 | Bowl guard | PA6 |
| 12 | Lubricator kit | POM |

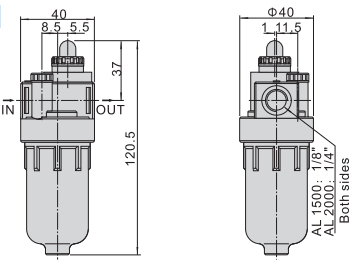

9. Drawing
