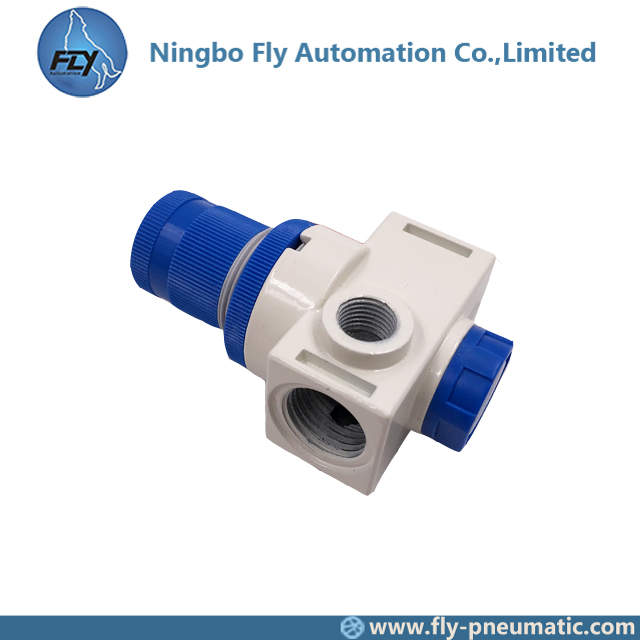

BR4000 Airtac source treatment BR series Air source 1/2" Aluminum precision control unit Regulator

1. Fluid: Air
2. Pressure range: 0.05~0.9MPa(7~130Psi)
3. Temperature range: ﹣20~70℃

Quantity:
  • BR4000
  • Airtac

1. Product name: BR4000 Airtac source treatment BR series Air source 1/2" Aluminum precision control unit Regulator


2. Product feature

1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0. 4MPa).


3. Drawing

BR Drawing

4. Other products

Filter Regulator Lubricator Filter Regulator FR.L unit F.R.L unit
AF1500 AR1500 AL1500 AFR1500 AFC1500 AC1500
AF2000 AR2000 AL2000 AFR2000 AFC2000 AC2000
BF2000 BR2000 BL2000 BFR2000 BFC2000 BC2000
BF3000 BR3000 BL3000 BFR3000 BFC3000 BC3000
BF4000 BR4000 BL4000 BFR4000 BFC4000 BC4000


5. Order code

Order code


6. Specification

Model AR1500 AR2000 BR2000 BR3000 BR4000
Fluid Air
Port size 1/8" 1/4" 1/4" 3/8" 1/2"
Pressure range 0.05~0.9MPa(7~130Psi)
Max. pressure 1.0MPa(145Psi)
Proof pressure 1.5MPa(215Psi)
Temperature range ﹣20~70℃
Weight 200g 230g


7. Product show

6


8. Inner structure

Inner structure

NO. Item Material
1 Push button POM
2 Adjusting button POM
3 Adjusting nut Steel
4 Adjusting pillar Steel
5 Adjust spring SWC
6 Fixed ring POM
7 Adjusting seat POM
8 Body Aluminum alloy
9 Diaphragm SUS304 & rubber
10 Needle O-ring NBR
11 Balance needle POM
12 Needle gasket Aluminum alloy & rubber
13 Cap O-ring NBR
14 Return spring Stainless steel
15 Regulator cap POM


9. Delivery

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.

4. Also we can send by your delivery acount if you want.
