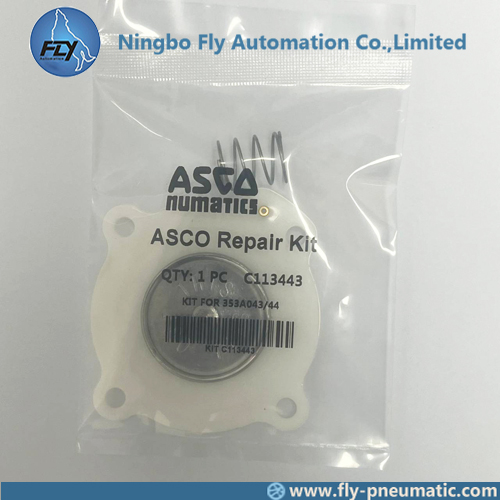

C113443 ASCO NUMATICS 3/4" Pulse valve SCG353A043 G353A041 Diaphragm Repair Kit

1. Material: TPE
2. Temperature: -10~70℃
3. Suitable for: ASCO SCG353A043, G353A041
  • C113443

  • ASCO numatics

1. Product Name: C113443 ASCO NUMATICS 3/4" Pulse valve SCG353A043 G353A041 Diaphragm Repair Kit

2. Order code: C113443

3. ASCO diaphragms

 Ordering Code Fitted Valve Code Valve port size Material
C113443 G353A041, G353042 3/4", 1" TPU / NBR
C113444 SCG353A043, SCG353A044 3/4", 1" TPU / NBR
C113825 G353A045 1 1/2" NBR / BUNA
C113826 G353A046 1 1/2" NBR / BUNA
C113827 SCG353A047 1 1/2" NBR / BUNA
C113685  SCG353A050, SCG353A051
G353A048, G353A049
2" , 2 1/2" NBR / BUNA
C113928 SCEX353.060 3" NBR / BUNA
Differential pressure (PS): 0,35 - 8,5 bar [1 bar = 100kPa]
Ambient temperature range: -20 to +85°C
1. Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE 10
2. Explosionproof solenoids for hazardous locations according to “ATEX” and national standards
3. Explosionproof and watertight solenoids according to “NEMA” standards
4. Compliance with “UL” standards
5. Plug with visual indication and/or peak voltage suppression
6. Electronic timer
7. Valves can also be supplied with FPM (fluorelastomer / viton) diaphragm and sealings. Use the appropriate optional suffix letter for identification
6.  Pulse jet valve installation
1. The valves can be mounted in any position without affecting operation
2. Pipe connection identifier is: G = G (ISO 228/1) or compression fitting
3. For compression fitting types tightness is achieved by the compressed gasket on the blow tube
4. The use of the rubber gaskets as sealing members will allow a slight misalignment in piping when using compression fittings
5. Other pipe threads are available on request
6. Installation/maintenance instructions are included with each valve
7. Spare Parts Kit and replacement coils are available

7. Structure
catalogue number A B C D E F G H J K weight
SCG353A043 75 45 27 51 89 75 39 92 113 130 0.7
SCG353A044 75 45 27 51 89 75 39 92 113 130 0.65

8. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
9. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
