You are here: Home » Products » Pulse Jet Valve » BFEC Pulse Jet Valve » DMF-Z-50S Diaphragm Valves BFEC 2 inches Aluminium Pulse Valve
Share to:

DMF-Z-50S Diaphragm Valves BFEC 2 inches Aluminium Pulse Valve

1. Material: Aluminium
2. Size: 2 inches

Quantity:
  • DMF-Z-50S
  • BFEC

1. Product name: DMF-Z-50S Diaphragm Valves BFEC 2 inches Aluminium Pulse Valve


2. Samples

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.


3. Suitable for

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.


4. Operation

Recommended  on time range: 50-500ms

Recommended time  between pulses: 1 minute or greater


5. Products shopping guide

For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.


6. Serves time

0:00 - 23:59

From Monday to Sunday

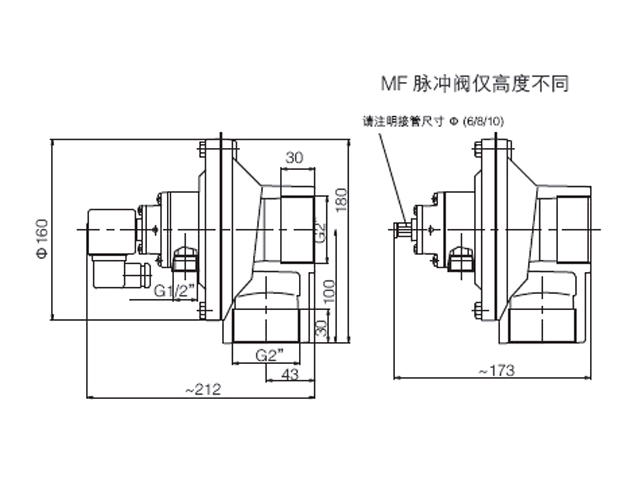

7. Drawing

尺寸

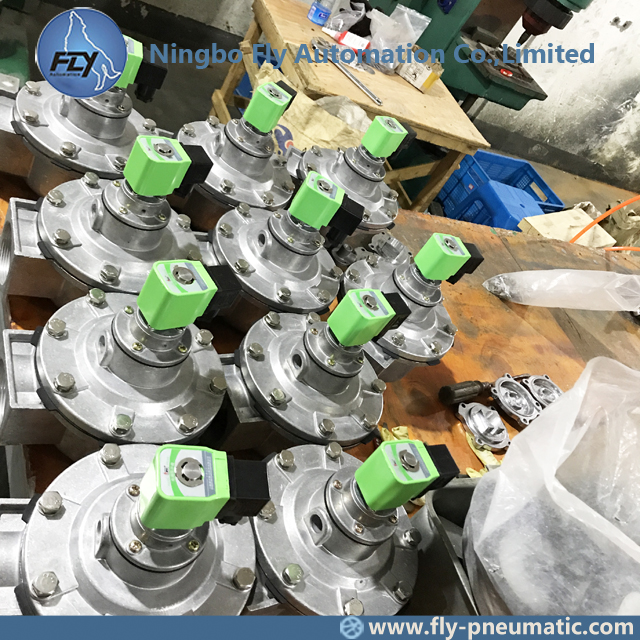

8. Product show

袋配50IMG_0926

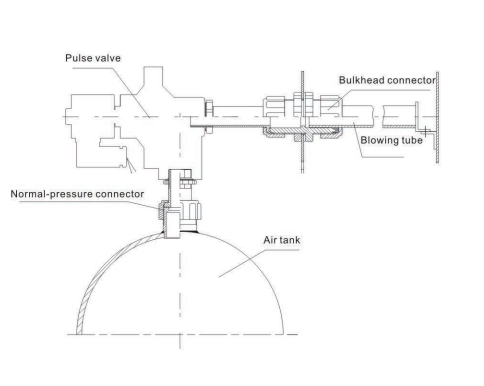

9. Installation Drawing

Installation Drawing
