EFXG327B001 G327B001 ASCO 8327 Series Brass Body Direct Operated Balanced Poppet Solenoid Valve

1. Product Name: EFXG327B001 G327B001 ASCO 8327 Series Brass Body Direct Operated Balanced Poppet Solenoid Valve

2. After-sale service

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

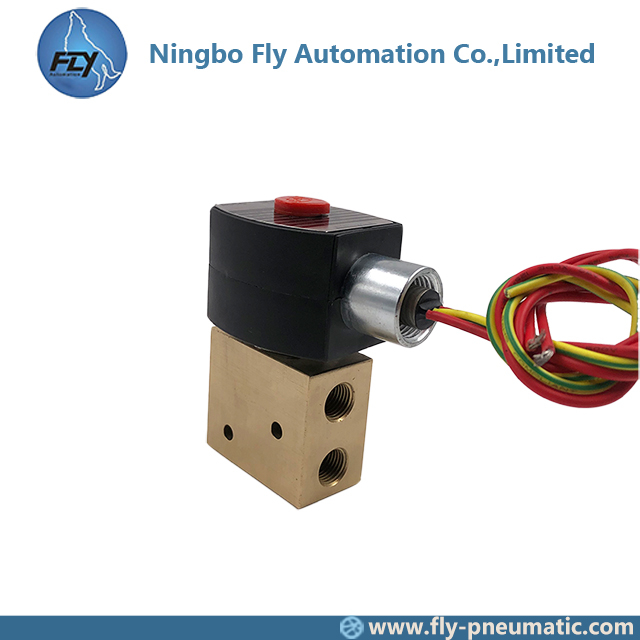

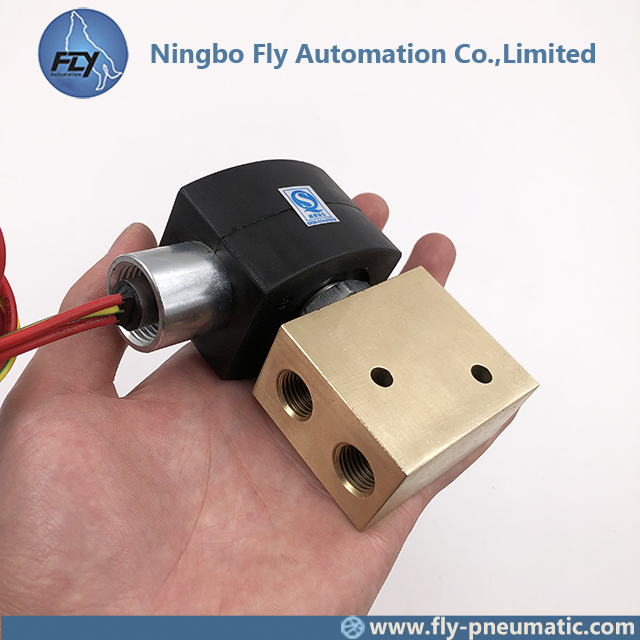

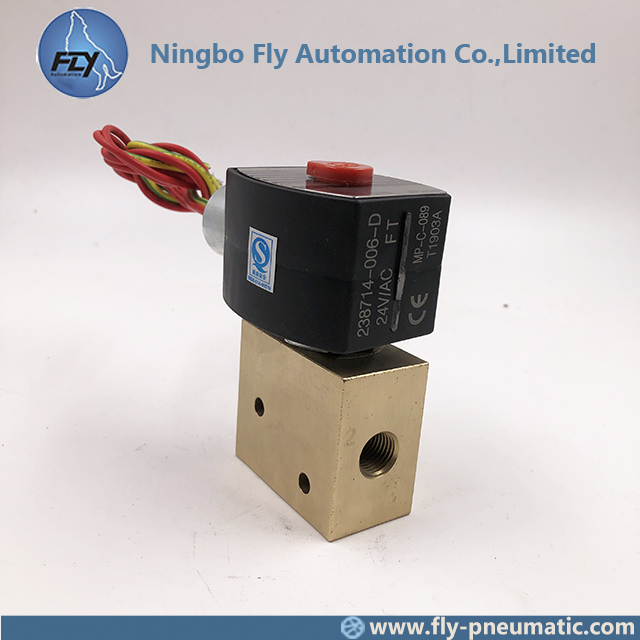

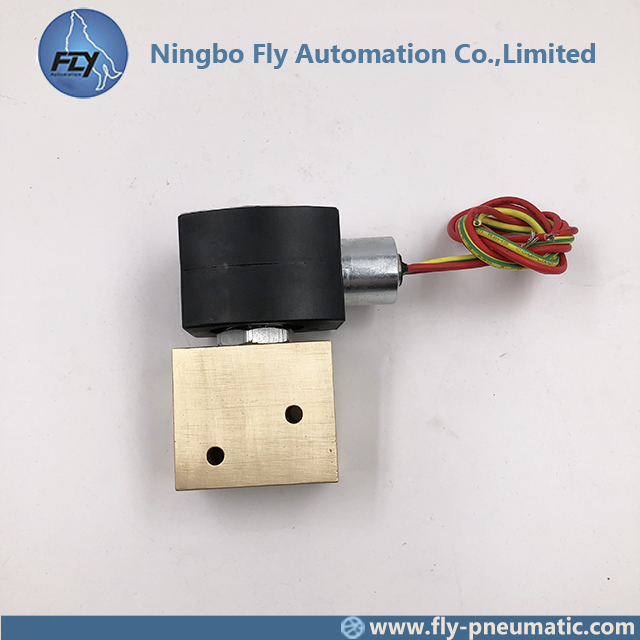

3. Product show

4. FEATURES

• The valves are certified according to IEC 61508 Functional Safety data and have SIL-3 capability (TÜV & Exida certification)

• The solenoid valves are recommended for pilot applications with basic flow, wide pressure ranges and no minimum operating pressure

• PTFE rider rings and graphite-filled PTFE seals reduce friction and eliminate sticking

• Coils used in metal enclosures have class H insulation materials

• Dedicated execution for low power

• Dedicated execution for extreme low ambient temperatures

• Peak voltage suppression diodes are standard in DC solenoids with metal enclosures

• The solenoid valves satisfy all relevant EC Directives

• Manual Operators are optional including an under pressure removable type

• Environmental NACE compliant and certified vibration resistant in combination with WSCR solenoids

5. GENERAL

Differential pressure     0 - 10 bar [1 bar = 100kPa]

Maximum viscosity         65cST (mm2/s)

Response times            75 - 100 ms(1)

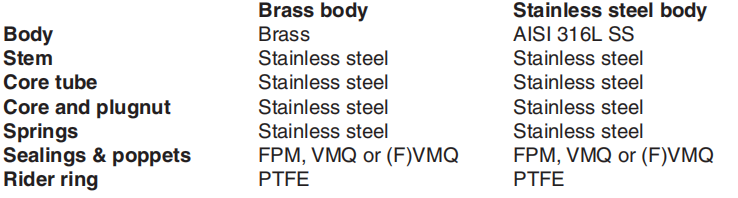

6. MATERIALS IN CONTACT WITH FLUID

7. In addition

If you have received a product which has a problem ,please contact us the fist time.
