Festo ISO6431 Standard DNC series Air cylinder DNC-50x125-S Double action

Festo DNC series cylinders can be applied to different working environment, usually the the working pressure range from 0.1 to 1.0MPa, working temperature from -5℃ to +70℃.

Quantity:
  • DNC-50x125-S
  • Festo
  • 0002
  • Double action
  • Filtered air
  • 1.5MPa
  • 1
  • 0.1MPa
  • Air buffer(standard)
  • -5~+70℃
  • 50~800mm/s
1: Product name: Festo ISO6431 Standard DNC series Air cylinder DNC-50x125-S Double action

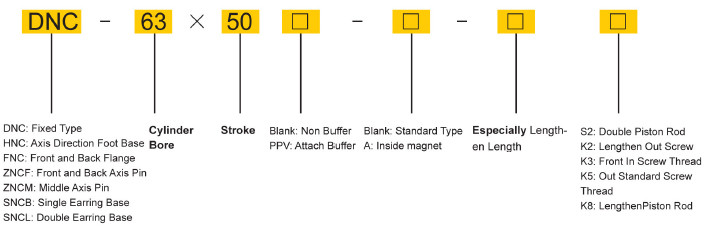

2: Ordering code
ordering code
3: Specification

Bore (mm) 32 40 50 63 80 100
Motion Pattern Double Action
Working Medium Fitered Air
Compression Pressure 1.5 MPa
Max. Operating Press 1.0 Mpa
Min. Operating Press 0.1 Mpa
Buffer Air Buffer (Standard)
Ambient Temp 5~60
Operating Speed 50~500 mm/s
Operating life Not less than 4000 Km
Lubricate Not Necessary
Joint Pipe Bore 1/8" 1/4" 3/8" 1/2"
4: Instruction
1. Bore size 32, 40, 50, 63, 80, 100, and many strokes are available, 32, 40, 50, 75, 80, 100, 125,150, 160, 175,
200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.
2. If you have a need for special, you can contact freely. Of course, different types means different prices. Whatever you want we can customize it.

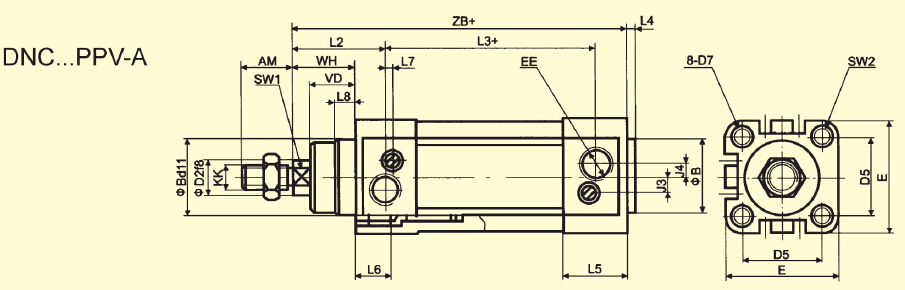

5: structure
结构
Bore AM B D2 D5 D7 E EE(G) J3 J4 KK
32 22 30 12 32.5 M6 45  1/8 6 5.2 M10X1.25
40 24 35 16 38 M6 54  1/4 8 6 M12X1.25
50 32 40 20 46.5 M8 64  1/4 10 8.5 M16X1.5
63 32 45 20 56.5 M8 75  3/8 12.4 10 M16X1.5
80 40 45 25 72 M10 93  3/8 12.5 8 M20X1.5
100 40 55 25 89 M10 110  1/2 11.8 10 M20X1.5
L2 L3 L4 L5 L6 L7 L8 SW1 SW2 VD WH ZB
41.6 62.8 4 25.1 16 3.3 10 10 6 18 26 120
44 77 4 29.6 16 3.6 10.5 13 6 21.5 30 135
51 78 4 29.6 17 5.1 11.5 17 8 28 37 143
54 87 4 35.6 17 6.6 15 17 8 28.5 37 158
62.4 95.2 4 35.9 17 10.5 15.7 22 10 34.7 46 174
69.8 100.4 4 38.8 17 8 19.2 22 10 38.2 51 189
6: Photos Show

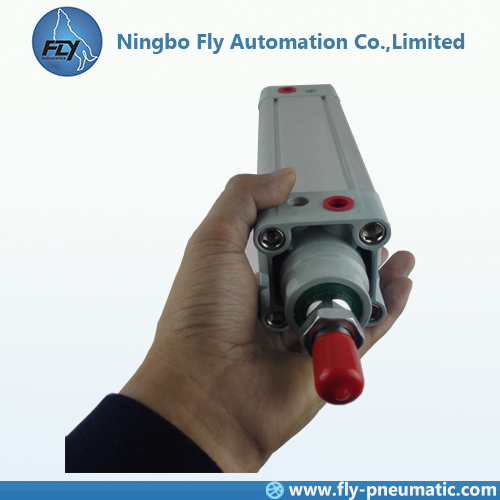

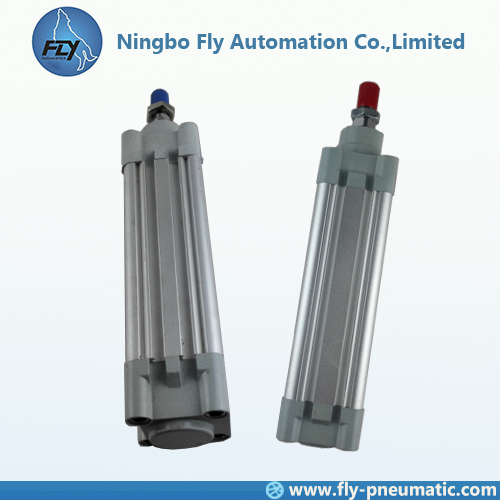

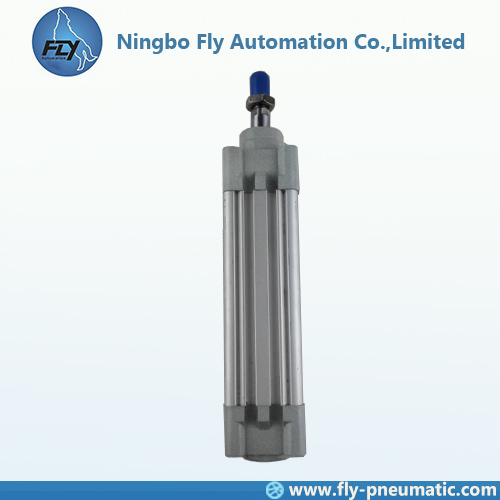

1. The shape of the cylinder
1
2

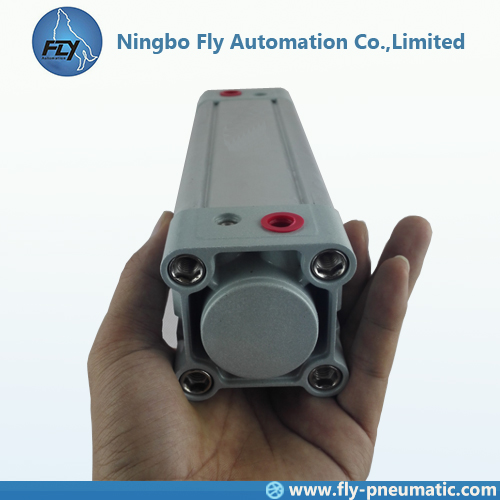

2. The front cover, back cover and piston

3
4

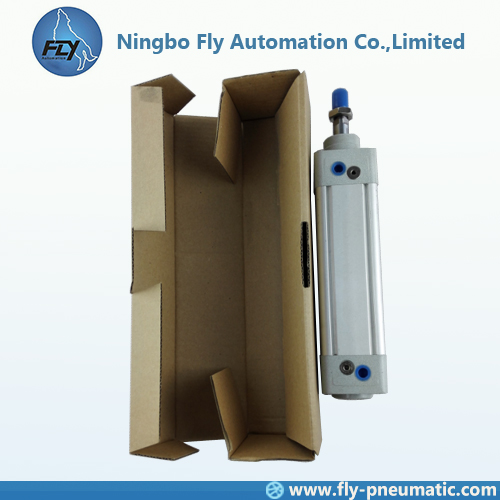

3. The package
5
7: Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

8: Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.

9: Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
