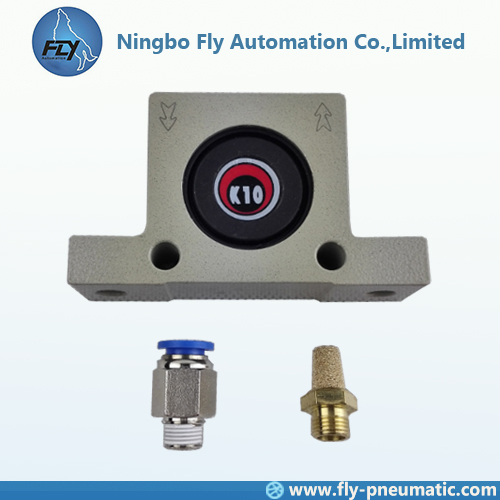

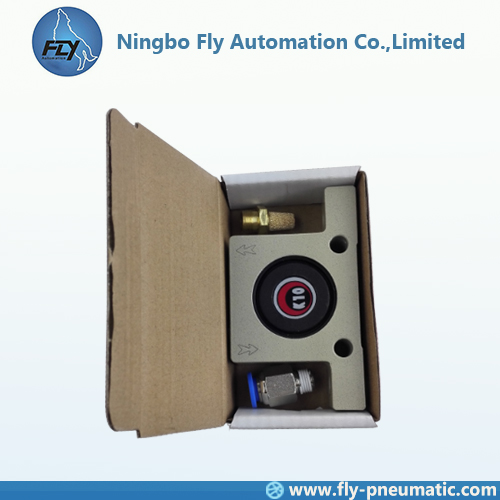

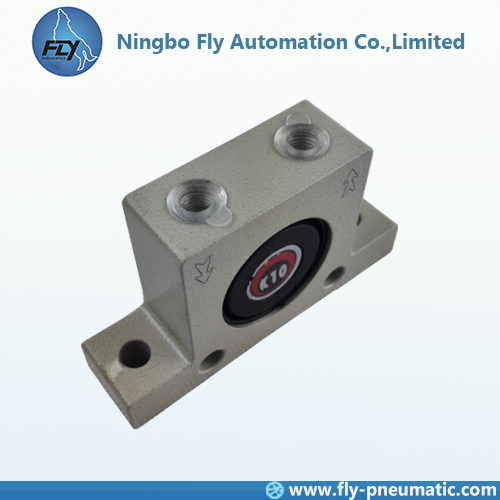

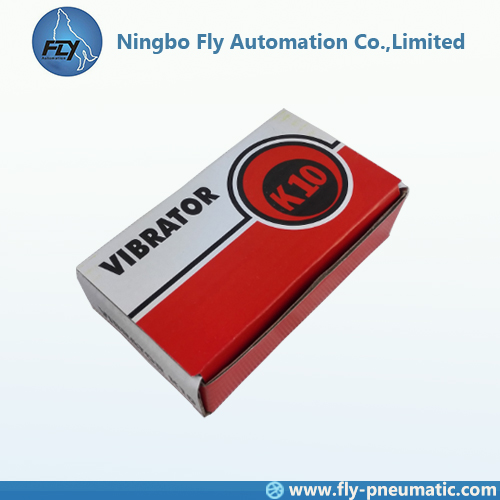

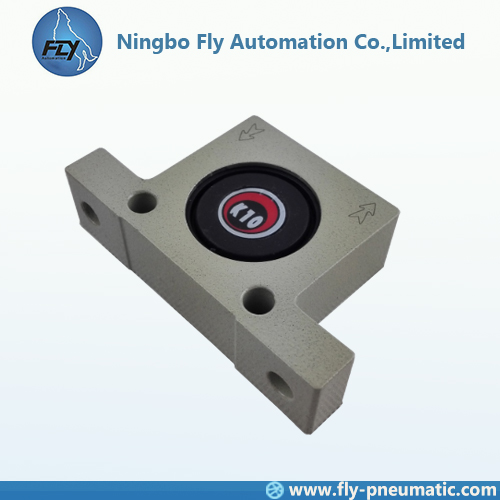

Findeva K series Pneumatic ball vibrator K8 K10 Aluminium Body Rotary Vibrator

1. Aluminium Body

2. Rotary Vibrator

3. 2 Sets of mounting holes

4. Frequency / Force adjustable by air pressure

5. Suitable for temperature up to 100oC

6. Force 130 N to 4050 N

2.  Structure and material

1. Extruded aluminium alloy body

2. Hardened ground steel alloy races

3. Nylon Endplates

4. Hardened lapped ball

5. Air Inlet

6. Air exhaust

7. Base mounting holes

8. Lateral Mounting

Standard Units K8 to K36 with nylon endplates

Max Temperature 100oC=212oF

Special Units K20HT to K36HT

Max Temperature 150oC=300oF


3. Performance


4. Dimension

Model	A	B	C	D	E	F	G	H	Weight
	mm	mm	mm	mm	mm	mm	mm	BSP	KG
K-8	50	20	86	68	12	7	40	G1/4"	0.2
K10									0.2
K-13	65	27	113	90	16	9	50	G1/4"	0.3
K-16									0.3
K-20	80	38	128	104	16	9	60	G1/4"	0.6
K-25									0.6
K-30	100	50	160	130	20	11	80	G3/8"	1.2
K-36									1.4
