GC300-08 GC300-10 GC300-15
1. Product name: GC300-08 GC300-10 GC300-15 precision air Airtac Preparation unit GC series Aluminum alloy Filter regulator lubricator

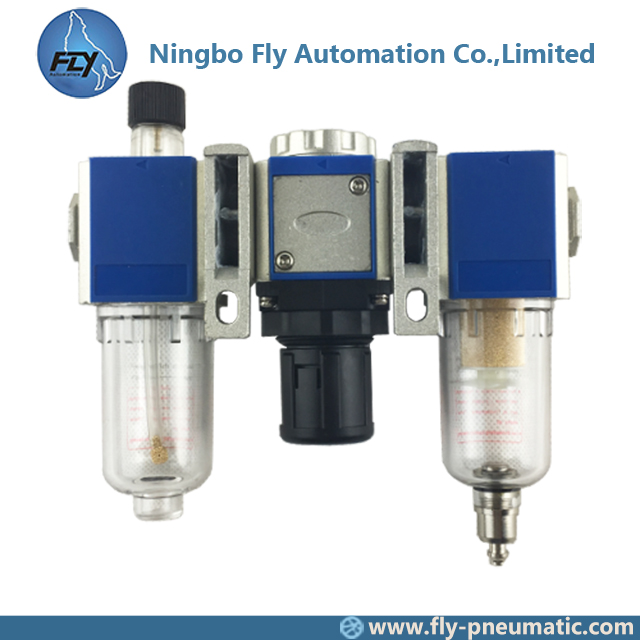

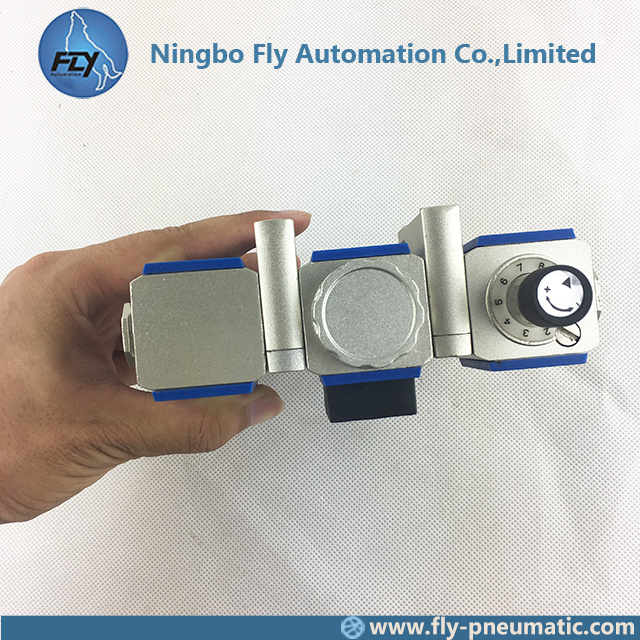

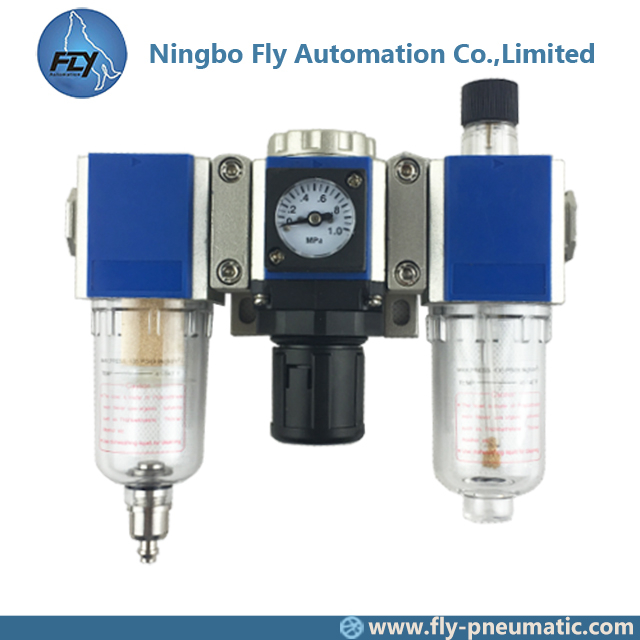

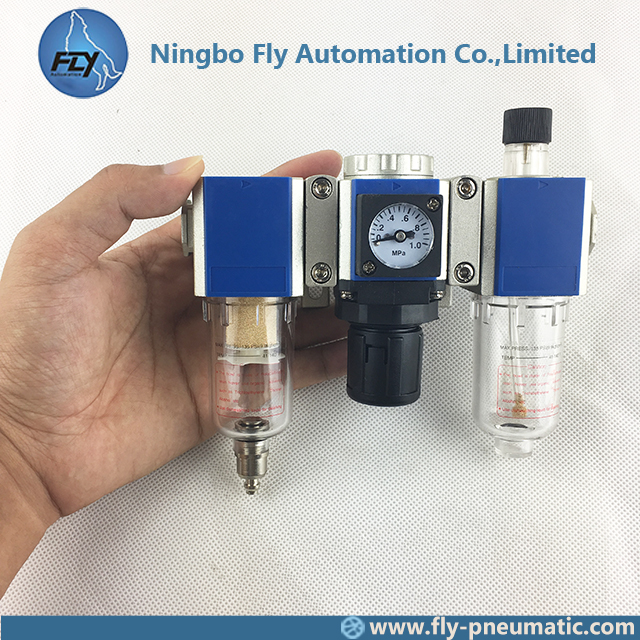

2. Product show
3. Product feature
1. Oil dripping adopts gap seal structure, which makes the adjustment of oil supply more reliable.
2. Oil feed ring can only make one full turn. The quantity of oil supply, basically taking on linear distribution. The quantity of oil supply can be generally calculated according to the position of gtaduation ring.
3. Filling of while the lubricator is under pressure is made possible.
4. Special drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow is minimal.
5. Quick and reliable mounting clamps makes it convinent to install and use.
6. The preformance of pressure adjustment is reliable with high precision.
7. The efficiency of eliminating moisture and solid grain is high.
8. Three drain types are available: manual drain, semi-auto drain and automatic drain.

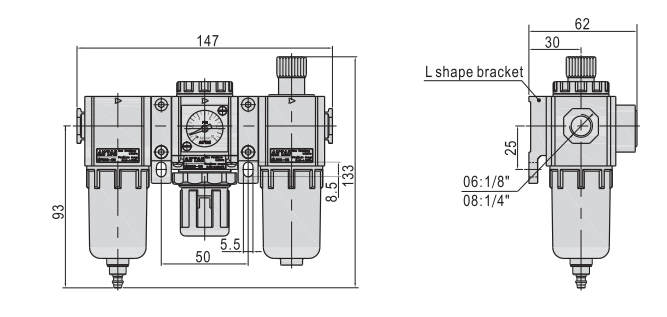

4. Drawing
5. Specification
| Model | GC200-06 | GC200-08 | GC300-08 | GC300-10 | GC300-15 | |
| Fluid | Air | |||||
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | |
| Filtering grade | 40μm or 5μm | |||||
| Pressure range | Semi-auto and automatic drain: 0.15~0.9 Mpa Manual drain: 0.05~0.9 Mpa | |||||
| Max. pressure | 1.0 Mpa | |||||
| Proof pressure | 1.5 Mpa | |||||
| Temperature range | -5~70℃ | |||||
| Capacity of drain bowl | 10CC | 40CC | ||||
| Capacity of oil bowl | 25CC | 75CC | ||||
| Recommended lubricant | ISO VG 32 or equivalent | |||||
| Weight | 580g | 1300g | ||||
| Constitute | Filter | GF200-06 | GF200-08 | GF300-08 | GF300-10 | GF300-15 |
| Regulator | GR200-06 | GR200-08 | GR300-08 | GR300-10 | GR300-15 | |
| Lubricator | GL200-06 | GL200-08 | GL300-08 | GL300-10 | GL300-15 | |
6. Other products
| Filter | Regulator | Lubricator | Filter Regulator | Regulator filter | Filter regulator lubricator |
| GF200-06 | GR200-06 | GL200-06 | GFR200-06 | GFC200-06 | GC200-06 |
| GF200-08 | GR200-08 | GL200-08 | GFR200-08 | GFC200-08 | GC200-08 |
| GF300-08 | GR300-08 | GL300-08 | GFR300-08 | GFC300-08 | GC300-08 |
| GF300-10 | GR300-10 | GL300-10 | GFR300-10 | GFC300-10 | GC300-10 |
| GF300-15 | GR300-15 | GL300-15 | GFR300-15 | GFC300-15 | GC300-15 |
| GF400-10 | GR400-10 | GL400-10 | GFR400-10 | GFC400-10 | GC400-10 |
| GF400-15 | GR400-15 | GL400-15 | GFR400-15 | GFC400-15 | GC400-15 |
| GF600-20 | GR600-20 | GL600-20 | GFR600-20 | GFC600-20 | GC600-20 |
| GF600-25 | GR600-25 | GL600-25 | GFR600-25 | GFC600-25 | GC600-25 |

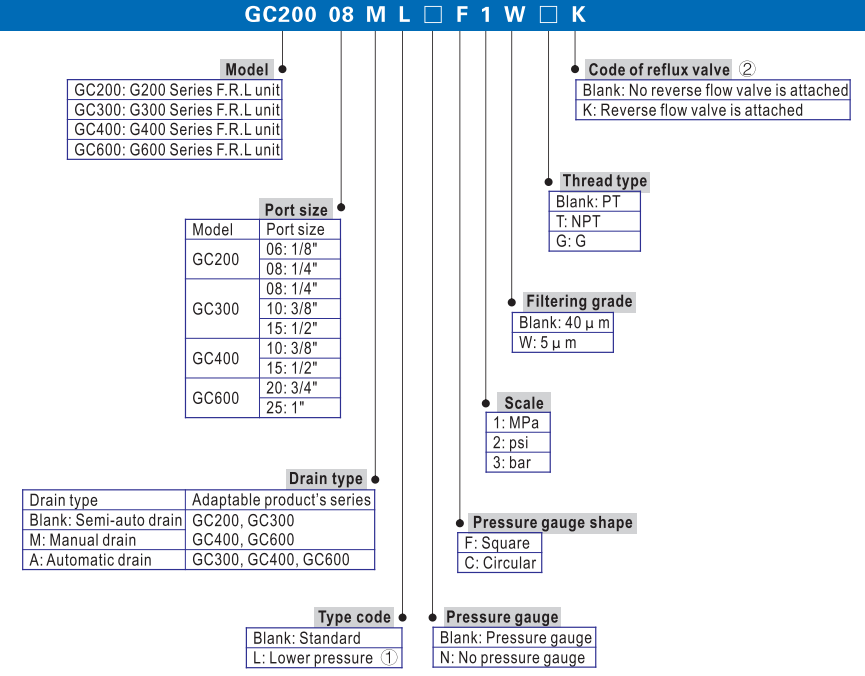

7. Order code
8. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

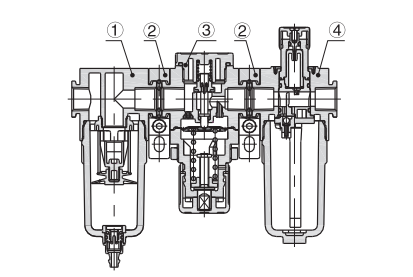

9. Inner structure
| No. | Item | No. | Item |
| ① | G series filter | ③ | G series regulator |
| ② | Bracket | ④ | G series lubricator |
