GF300-08 GF300-10 GF300-15

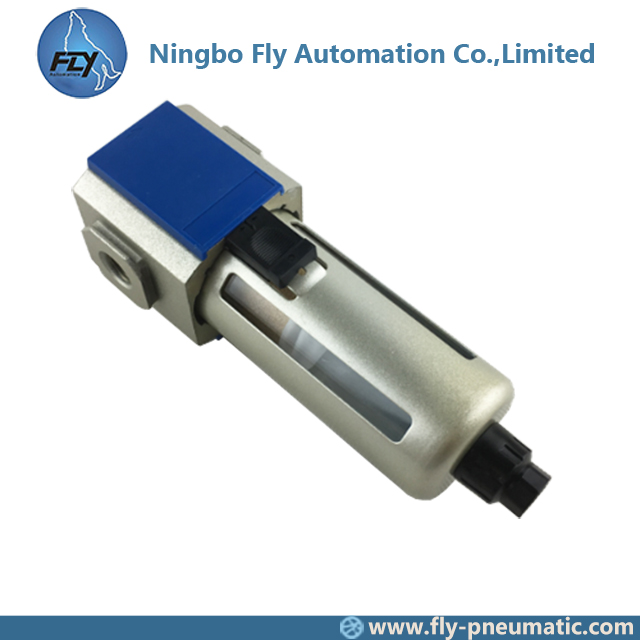

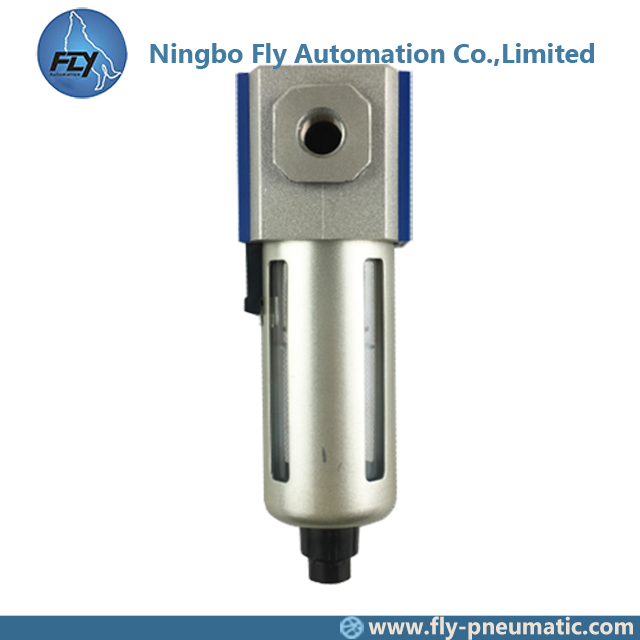

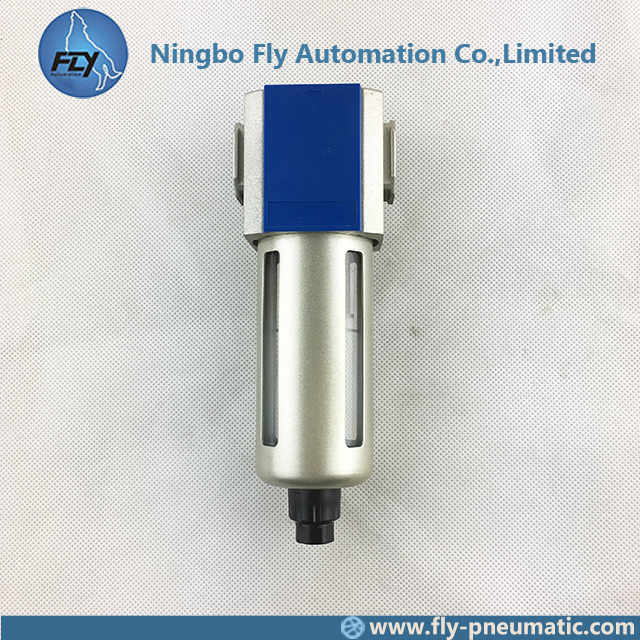

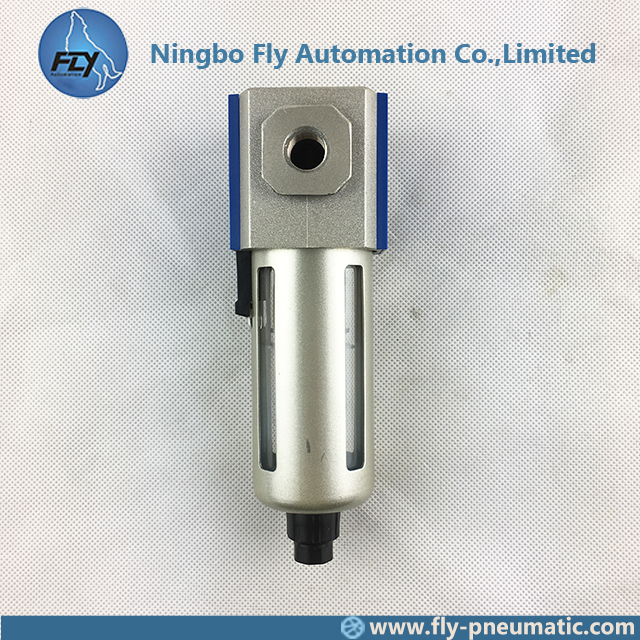

1. Product name: GF300-08 GF300-10 GF300-15 automatic Airtac precision GF series air control Filter

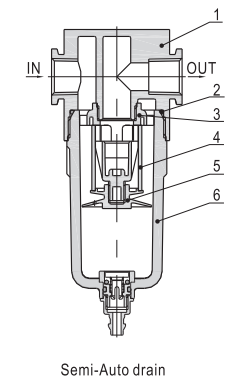

2. Inner structure and Material of major parts
| No. | Item | Material |
| 1 | Body | Aluminum alloy |
| 2 | O-ring | NBR |
| 3 | Air guide | High viscosity POM |
| 4 | Filter core | 40μm: Agglomerated by bronze grain/5μm: Makrolon fiber |
| 5 | Umbrella baffle | high viscosity POM |
| 6 | Drain bowl | Aluminum alloy(GF600)/PC(Others) |
| 7 | Liquid meter cover | SPCC |
| 8 | Liquid meter seal | VITON |
| 9 | Liquid meter inside cover | PC |
3. Specification
| Model | GF200-06 | GF200-08 | GF300-08 | GF300-10 | GF300-15 | |
| Fluid | Air | |||||
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | |
| Filtering grade | 40μm or 5μm | |||||
| Pressure range | Semi-auto and automatic drain: 0.15~0.9 Mpa Manual drain: 0.05~0.9 Mpa | |||||
| Proof pressure | 1.5 Mpa | |||||
| Temperature range | -5~70℃ | |||||
| Capacity of drain bowl | 10CC | 40CC | ||||
| Weight | 135g | 360g | ||||

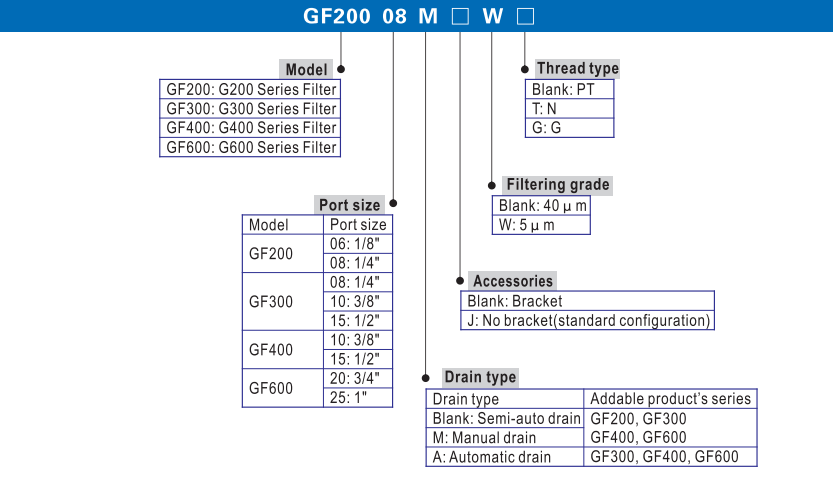

4. Order code

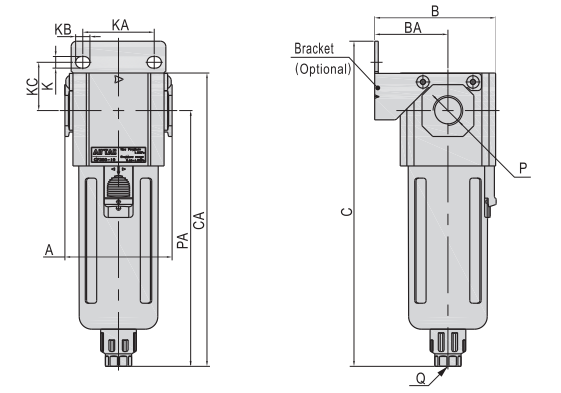

5. Drawing
| Model/Item | A | B | BA | C | CA | K | KA | KB | KC | P | PA | Q |
| GF300-08 | 60 | 67.5 | 41 | 182 | 164 | 6.5 | 40 | 8 | 27 | 1/4" | 143 | 1/8" |
| GF300-10 | 60 | 67.5 | 41 | 182 | 164 | 6.5 | 40 | 8 | 27 | 3/8" | 143 | 1/8" |
| GF300-15 | 60 | 67.5 | 41 | 182 | 164 | 6.5 | 40 | 8 | 27 | 1/2" | 143 | 1/8" |
| GF400-10 | 80 | 85.5 | 50 | 208 | 191.5 | 8.5 | 55 | 11 | 33.5 | 3/8" | 166.5 | 1/4" |
| GF400-15 | 80 | 85.5 | 50 | 208 | 191.5 | 8.5 | 55 | 11 | 33.5 | 1/2" | 166.5 | 1/4" |
6. Product feature
1. Unique diversion structure spins the air flowing through to effectively separate the liquid from the air and reliably filter the solid grain.
2. It has low pressure loss, high efficiency in separating water and large drain bowl capacity.
3. Filtering grade includes 5 μm and 40 μm (Optional).
4. Thress drain types are available: manual drain, semi-auto drain and automatic drain.
5. The bracket can be selected for installation.
7. Selection of drain mode
GF series drain mode is the same as the GFR series, please refer to the specific P137.
8. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
9. Other products
| Filter | Regulator | Lubricator | Filter Regulator | Regulator filter | Filter regulator lubricator |
| GF200-06 | GR200-06 | GL200-06 | GFR200-06 | GFC200-06 | GC200-06 |
| GF200-08 | GR200-08 | GL200-08 | GFR200-08 | GFC200-08 | GC200-08 |
| GF300-08 | GR300-08 | GL300-08 | GFR300-08 | GFC300-08 | GC300-08 |
| GF300-10 | GR300-10 | GL300-10 | GFR300-10 | GFC300-10 | GC300-10 |
| GF300-15 | GR300-15 | GL300-15 | GFR300-15 | GFC300-15 | GC300-15 |
| GF400-10 | GR400-10 | GL400-10 | GFR400-10 | GFC400-10 | GC400-10 |
| GF400-15 | GR400-15 | GL400-15 | GFR400-15 | GFC400-15 | GC400-15 |
| GF600-20 | GR600-20 | GL600-20 | GFR600-20 | GFC600-20 | GC600-20 |
| GF600-25 | GR600-25 | GL600-25 | GFR600-25 | GFC600-25 | GC600-25 |
