GFR200-06 GFR200-08
1. Product name: GFR200-06 GFR200-08 group air preparation Airtac precision GFR series automatic Filter Regulator
2. Product feature
1. Embedded square pressure guage is used to save installation space. (External circular pressure gauge is also optional).
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused bu external interfere.
3. Balanced design is adopted for the pressure adjustment mechanism.
4. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa)
5. Unique diversion structure spins the air flowing through to effectively sparete the liquid from the air and reliabily filter the solid grain.
6. The filtering grade includes 5 μm and 40 μm (optional).
7. Three drain types are available: manual drain, semi-auto drain and automatic drain.
8. The bracket can be selected for installation.
3. Inner structure and Material of major parts
No. | Item | Material | |
1 | Drain bowl | Aluminum alloy(GFR600)/PC(others) | |
2 | Umbrella baffle | High viscosity POM | |
3 | Filter core | 40μm | Agglomerated by brass grain |
5μm | Makrolon fiber | ||
4 | Air guider | High viscosity POM | |
5 | O-ring | NBR | |
6 | Body of filter-regulator | Aluminum alloy | |
7 | Adjusting spool | Brass(GFR600)/POM(others) | |
8 | O-ring | NBR | |
9 | Diaphragm | SUS304&Rubber | |
10 | Fixation ring cap | Aluminum alloy(GFR600)/POM(others) | |
11 | Adjusting spindle | Steel | |
12 | Regulator nut | Steel | |
13 | Pressure knob | POM | |
14 | Spring | SWC | |
15 | Adjusting seat | Aluminum alloy(GFR600)/POM(others) | |
16 | Feedback tube | POM | |
17 | Adjusting plug | Brass & Rubber | |
18 | O-ring | NBR | |
19 | Spring | SUS304 | |
20 | Liquid meter cover | SPCC | |
21 | Liquid meter seal | VITON | |
22 | Liquid meter inside | PC |

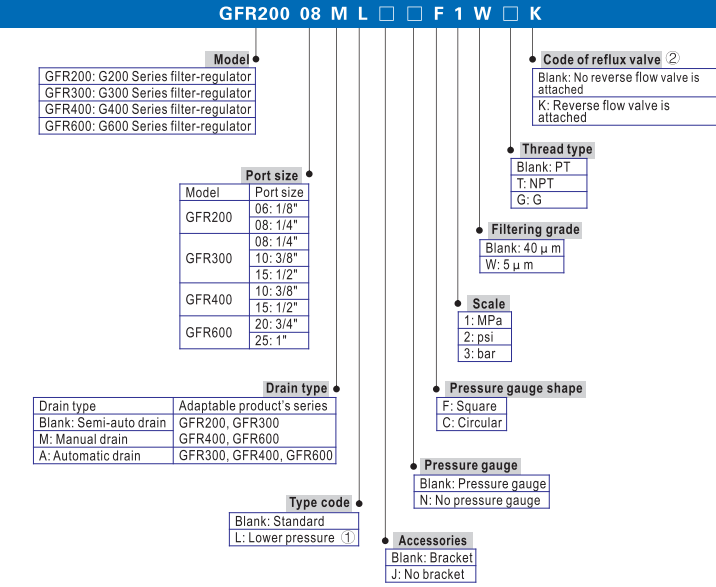

4. Order code

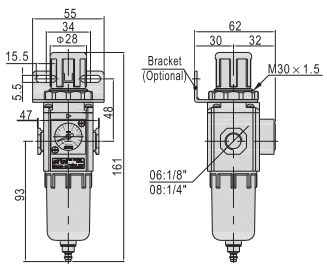

5. Drawing
6. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
7. Specification
Model | GFR200-06 | GFR200-08 | GFR300-08 | GFR300-10 | GFR300-15 | |
Fluid | Air | |||||
Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | |
Filtering grade | 40μm or 5μm | |||||
Pressure range | Semi-auto and automatic drain: 0.15~0.9 Mpa Manual drain: 0.05~0.9 Mpa | |||||
Max. pressure | 1.0 Mpa | |||||
Proof pressure | 1.5 Mpa | |||||
Temperature range | -5~70℃ | |||||
Capacity of drain bowl | 10CC | 40CC | ||||
Weight | 220g | 500g |
8. Other products
Filter | Regulator | Lubricator | Filter Regulator | Regulator filter | Filter regulator lubricator |
GF200-06 | GR200-06 | GL200-06 | GFR200-06 | GFC200-06 | GC200-06 |
GF200-08 | GR200-08 | GL200-08 | GFR200-08 | GFC200-08 | GC200-08 |
GF300-08 | GR300-08 | GL300-08 | GFR300-08 | GFC300-08 | GC300-08 |
GF300-10 | GR300-10 | GL300-10 | GFR300-10 | GFC300-10 | GC300-10 |
GF300-15 | GR300-15 | GL300-15 | GFR300-15 | GFC300-15 | GC300-15 |
GF400-10 | GR400-10 | GL400-10 | GFR400-10 | GFC400-10 | GC400-10 |
GF400-15 | GR400-15 | GL400-15 | GFR400-15 | GFC400-15 | GC400-15 |
GF600-20 | GR600-20 | GL600-20 | GFR600-20 | GFC600-20 | GC600-20 |
GF600-25 | GR600-25 | GL600-25 | GFR600-25 | GFC600-25 | GC600-25 |

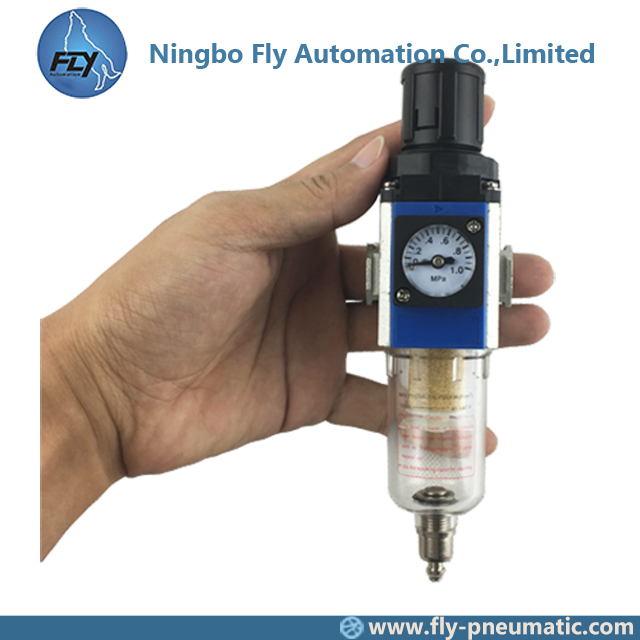

9. Product show

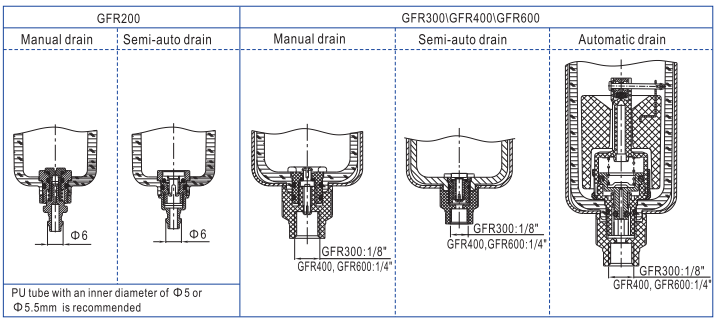

10. Selection of drain mode
