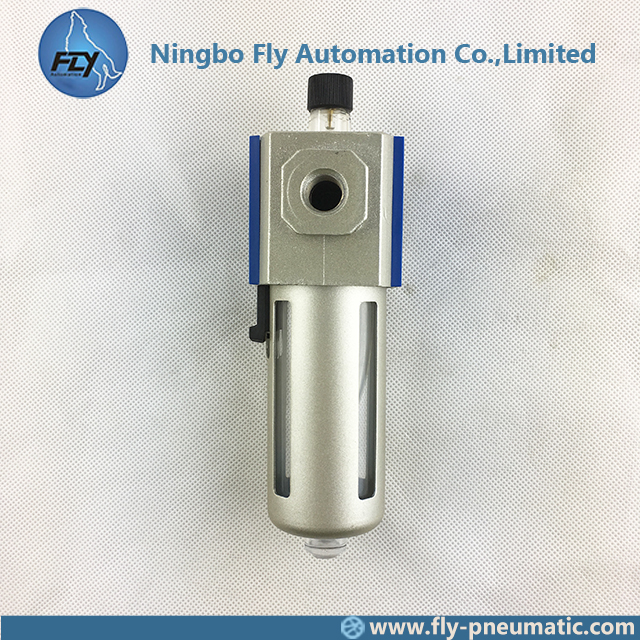

1. Product name: GL300-08 GL300-10 GL300-15 air control Airtac precision automatic GL series unit Lubricator
2. Product feature
1. The structure of oil dripping adopts gap seal type, which makes the adjustment of oil supply more reliable.
2. Oil feed ring can only make one full turn. The quantity of oil supply basically takes on linear distribution. The quantity of oil supply can be generally calculated according to the position of graduation ring.
3. Special drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow is minimal.
4. Filling of oil while the lubricator is under pressure is made possible, and the oil bowl is large.
5. The bracket can be selected for installation.

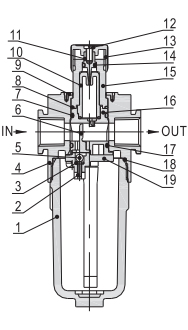

3. Inner structure and Material of major parts
| No. | Item | Material |
| 1 | Oil bowl | Aluminum alloy(GL600)/PC(others) |
| 2 | Adjusting spring | Stainless steel |
| 3 | O-ring | NBR |
| 4 | Body of lubricator | Aluminum alloy |
| 5 | Stell ball | Stainless steel |
| 6 | Distance block | TPU |
| 7 | O-ring | NBR |
| 8 | O-ring | NBR |
| 9 | Indicating ring | POM |
| 10 | Drip pipe | PC |
| 11 | Ejector pin | Brass |
| 12 | Screw | Carbon steel |
| 13 | Adjusting ring | POM |
| 14 | O-ring | NBR |
| 15 | Bowl | PC |
| 16 | Sprayer body | PA66 |
| 17 | O-ring | NBR |
| 18 | O-ring | NBR |
| 19 | Sprayer bottom cap | POM |
| 20 | Liquid meter cover | SPCC |
| 21 | Liquid meter seal | NBR |
| 22 | Liquid meter inside cover | PC |

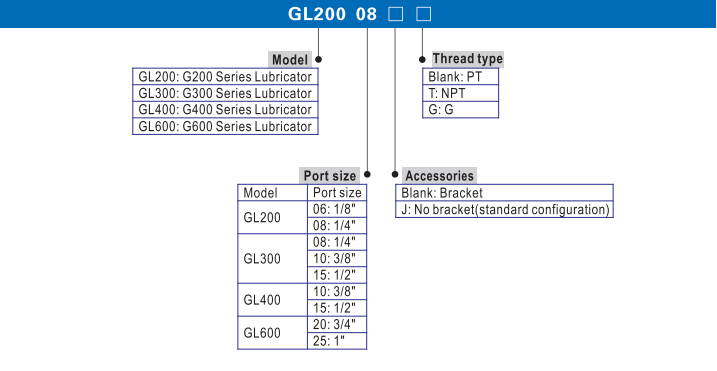

4. Order code
5. Drawing
| Model/Item | A | B | BA | BC | C | K | KA | KB | KC | P | PA |
| GL300-08 | 60 | 68 | 41 | 53.5 | 169 | 6.5 | 40 | 8 | 27 | 1/4" | 125 |
| GL300-10 | 60 | 68 | 41 | 53.5 | 169 | 6.5 | 40 | 8 | 27 | 3/8" | 125 |
| GL300-15 | 60 | 68 | 41 | 53.5 | 169 | 6.5 | 40 | 8 | 27 | 1/2" | 125 |
| GL400-10 | 80 | 85.5 | 50 | 71 | 190 | 8.5 | 55 | 11 | 33.5 | 3/8" | 142 |
| GL400-15 | 80 | 85.5 | 50 | 71 | 190 | 8.5 | 55 | 11 | 33.5 | 1/2" | 142 |
6. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
7. Specification
| Model | GL200-06 | GL200-08 | GL300-08 | GL300-10 | GL300-15 | |
| Fluid | Air | |||||
| Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | |
| Pressure range | Semi-auto and automatic drain: 0.15~0.9 Mpa Manual drain: 0.05~0.9 Mpa | |||||
| Proof pressure | 1.5 Mpa | |||||
| Temperature range | -5~70℃ | |||||
| Recommended lubricant | ISO VG 32 or equivalent | |||||
| Capacity of drain bowl | 25CC | 75CC | ||||
| Weight | 130g | 360g | ||||
8.
Other products
| Filter | Regulator | Lubricator | Filter Regulator | Regulator filter | Filter regulator lubricator |
| GF200-06 | GR200-06 | GL200-06 | GFR200-06 | GFC200-06 | GC200-06 |
| GF200-08 | GR200-08 | GL200-08 | GFR200-08 | GFC200-08 | GC200-08 |
| GF300-08 | GR300-08 | GL300-08 | GFR300-08 | GFC300-08 | GC300-08 |
| GF300-10 | GR300-10 | GL300-10 | GFR300-10 | GFC300-10 | GC300-10 |
| GF300-15 | GR300-15 | GL300-15 | GFR300-15 | GFC300-15 | GC300-15 |
| GF400-10 | GR400-10 | GL400-10 | GFR400-10 | GFC400-10 | GC400-10 |
| GF400-15 | GR400-15 | GL400-15 | GFR400-15 | GFC400-15 | GC400-15 |
| GF600-20 | GR600-20 | GL600-20 | GFR600-20 | GFC600-20 | GC600-20 |
| GF600-25 | GR600-25 | GL600-25 | GFR600-25 | GFC600-25 | GC600-25 |

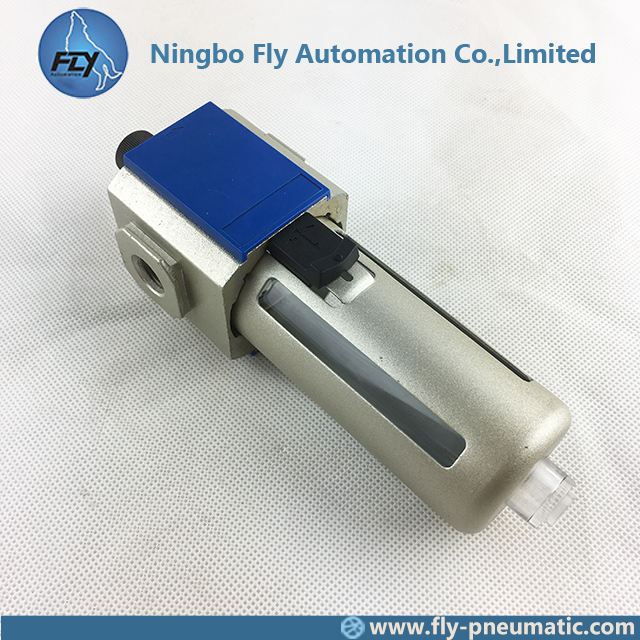

9. Product show
