GR200-06 GR200-08

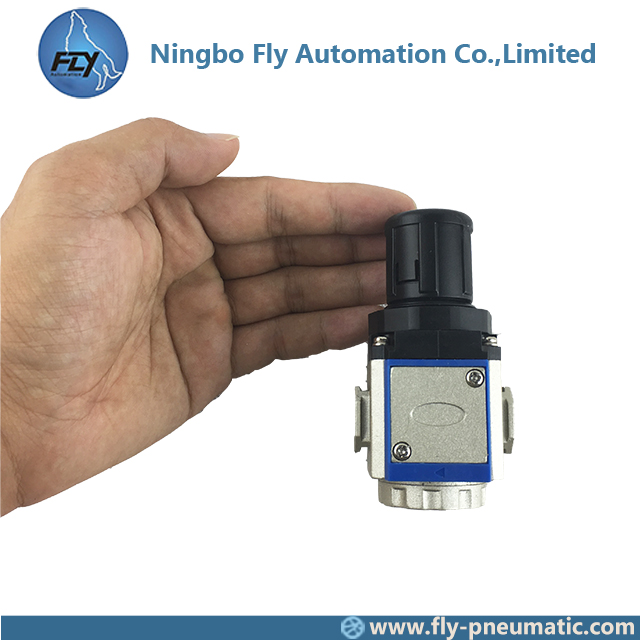

1. Product name: GR200-06 GR200-08 control unit Airtac precision GF series Aluminum alloy Regulator
2. Product feature
1. Embedded square pressure gauge is used to save installation space. (External circular pressure gauge is also optional).
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. Balanced design is adopted for the pressure adjustment mechanism.
4. In addition to panel installation, the bracket is optional for installation.
5. In addition to standard to standard type, lower pressure type is optional (the highest adjustable pressure is 0.4MPa).
3. Drawing
4. Regulating way
The use of GR series regulators is the same as the SDR series.
5. Specification
Model | GR200-06 | GR200-08 | GR300-08 | GR300-10 | GR300-15 | |
Fluid | Air | |||||
Port Size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | |
Pressure range | 0.05~0.9 Mpa | |||||
Max. pressure | 1.0 MPa | |||||
Proof pressure | 1.5 Mpa | |||||
Temperature range | -20~70℃ | |||||
Weight | 130g | 360g |
6. Inner structure and Material of major parts
No. | Item | Material | No. | Item | Material |
1 | Valve cap | Aluminum alloy | 9 | Regulator nut | Steel |
2 | O-ring | NBR | 10 | Pressure knob | POM |
3 | Body | Aluminum alloy | 11 | Pressure spring | SWC |
4 | Spool | Brass(GR600)/POM(others) | 12 | Adjusting seat | Aluminum alloy(GR600)/POM(others) |
5 | O-ring | NBR | 13 | Feed back tuble | POM |
6 | Diaphragm | SUS304 & Rubber | 14 | Pressure plug | Brass & steel |
7 | Fixed ring | Aluminum alloy(GR600)/POM(others) | 15 | O-ring | NBR |
8 | Adjusting spindle | Steel | 16 | Spring | Stainless steel |
7. Order code
8. Other products
Filter | Regulator | Lubricator | Filter Regulator | Regulator filter | Filter regulator lubricator |
GF200-06 | GR200-06 | GL200-06 | GFR200-06 | GFC200-06 | GC200-06 |
GF200-08 | GR200-08 | GL200-08 | GFR200-08 | GFC200-08 | GC200-08 |
GF300-08 | GR300-08 | GL300-08 | GFR300-08 | GFC300-08 | GC300-08 |
GF300-10 | GR300-10 | GL300-10 | GFR300-10 | GFC300-10 | GC300-10 |
GF300-15 | GR300-15 | GL300-15 | GFR300-15 | GFC300-15 | GC300-15 |
GF400-10 | GR400-10 | GL400-10 | GFR400-10 | GFC400-10 | GC400-10 |
GF400-15 | GR400-15 | GL400-15 | GFR400-15 | GFC400-15 | GC400-15 |
GF600-20 | GR600-20 | GL600-20 | GFR600-20 | GFC600-20 | GC600-20 |
GF600-25 | GR600-25 | GL600-25 | GFR600-25 | GFC600-25 | GC600-25 |
9. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
