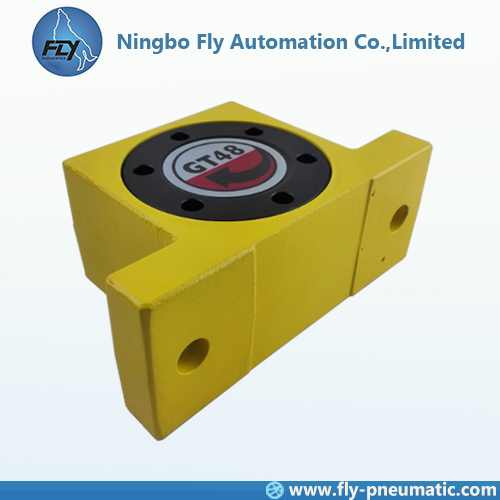

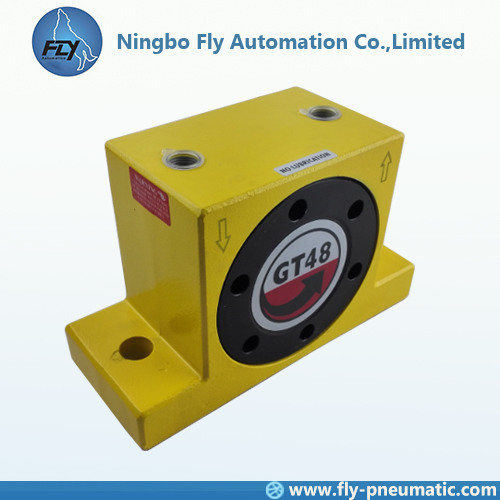

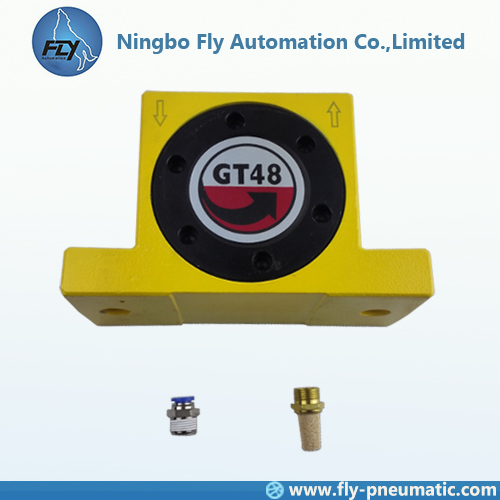

GT40 GT40S GT48 GT48S Findeva Golden Turbine Rotary vibrator Pneumatic vibrator Pneumatic
1. MODEL GT
1. Aluminium Body
2. Rotary Vibrator
3. Frequency / Force adjustable by air pressure
4. Suitable for temperature up to 120 C
5. Force 135 N to 12000 N
6. No Lubrication Required

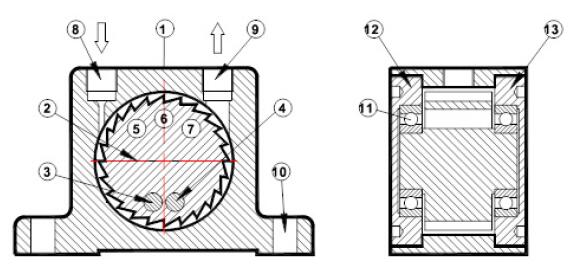

2. Structure and material
1. Extruded Aluminium Alloy Body
2. Hard Coated Aluminium Turbine Wheel
3/4. High Density Mass Positive Movement
5-7. Cavities Giving Negative Moment
8. Air Inlet
9. Air Exhaust
10. Base Mounting Holes
11. Special Pre-Lubricated Matched Sealed Bearings
Hard Coated Aluminium Endplates
12. With Left Hand Thread
13. With Right Hand Thread

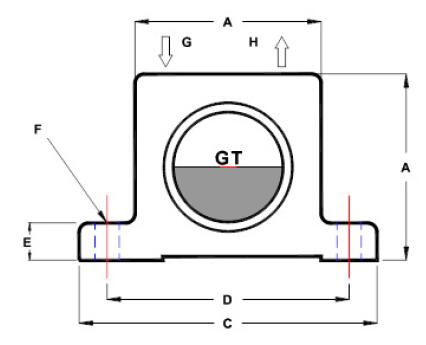

3. Dimenasion
| Type | A | B | C | D | E | F | G/H | Weight |
| mm | mm | mm | mm | mm | mm | BSP | KG |
| GT-4 | 40 | 28 | 70 | 56 | 10 | 6 | G1/8" | 0.2 |
| GT-6 | 40 | 28 | 70 | 56 | 10 | 6 | G1/8" | 0.2 |
| GT-6-S | 40 | 28 | 70 | 56 | 10 | 6 | G1/8" | 0.2 |
| GT-8 | 50 | 33 | 86 | 68 | 12 | 7 | G1/8" | 0.3 |
| GT-10 | 50 | 33 | 86 | 68 | 12 | 7 | G1/8" | 0.3 |
| GT-10-S | 50 | 33 | 86 | 68 | 12 | 7 | G1/8" | 0.3 |
| GT-13 | 65 | 42 | 113 | 90 | 16 | 9 | G1/4" | 0.7 |
| GT-16 | 65 | 42 | 113 | 90 | 16 | 9 | G1/4" | 0.7 |
| GT-16-S | 65 | 42 | 113 | 90 | 16 | 9 | G1/4" | 0.7 |
| GT-20 | 80 | 56 | 128 | 104 | 16 | 9 | G1/4" | 1.2 |
| GT-25 | 80 | 56 | 128 | 104 | 16 | 9 | G1/4" | 1.2 |
| GT-25-S | 80 | 56 | 128 | 104 | 16 | 9 | G1/4" | 1.2 |
| GT-30 | 100 | 73 | 160 | 130 | 20 | 11 | G3/8" | 2.2 |
| GT-36 | 100 | 73 | 160 | 130 | 20 | 11 | G3/8" | 2.4 |
| GT-36-S | 100 | 73 | 160 | 130 | 20 | 11 | G3/8" | 2.6 |
| GT-40 | 120 | 83 | 194 | 152 | 24 | 17 | G3/8" | 3.7 |
| GT-48 | 120 | 83 | 194 | 152 | 24 | 17 | G3/8" | 3.9 |
| GT-48-S | 120 | 83 | 194 | 152 | 24 | 17 | G3/8" | 4.3 |
4. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
5. Quality Standards The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections
