Japan SMC MSQ series Rotary table cylinder MSQB20A

MSQ series high precision type has bore 10mm, 20mm, 30mm, 50mm. Basic type has bore 10mm, 20mm, 30mm, 50mm, 70mm, 100mm and 200mm. According to your requirement, you can choose the type you want.

Quantity:
  • MSQB20A
  • SMC
  • 0017
  • Aluminium
  • 20mm
  • 190°
  • 0 to 60℃ (with no freezing)
1: Product Name: Japan SMC MSQ series Rotary table cylinder MSQB20A

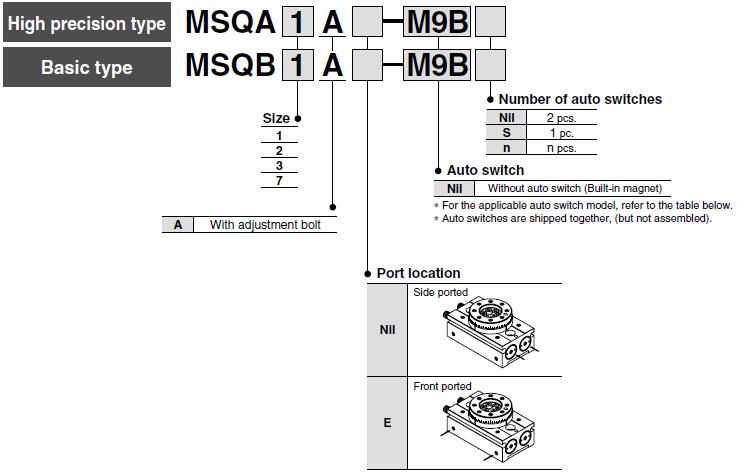

2: Order Code
order code

2: Specification
Size 10 20 30 50 70 100 200
Fluid Air (non-lube)
Max. operating
pressure
With adjustment bolt 1 Mpa
With internal shock absorber 0.6 Mpa (Note 1)
Min. operating
pressure
Basic type 0.1 Mpa
High precision type 0.2 Mpa 0.1 Mpa
Ambient and fluid temperature 0 to 60 ℃ (with no freezing)
Cushion With adjustment bolt Rubber bumper
With internal shock absorber Shock absorber
Shock absorber model RBA0805
-X692
RBA1006-X692 RBA1411
-X692
RBA2015-X821 RBA2725
-X821
Angle adjustment range 0 to 190° (note 2)
Maximum rotation 190°
Cylinder bore size ø15 ø18 ø21 ø25 ø28 ø32 ø40
Port size End ports M5 x 0.8 Rc 1/8
Side ports M5 x 0.8
Note 1) The maximum operating pressure of the actuator is restricted by the maximum allowable thrust
of the shock absorber.
Note 2) Be careful if the rotation angle of a type with internal shock absorber is set below the value in the table below, the piston stroke will be smaller than the shock absorber's effective stroke, resulting in decreased energy absorption ability.
属性下面图片
3: Weight
Size 10 20 30 50 70 100 200
Basic type With adjustment bolt 530 990 1290 2080 2880 4090 7580
With internal shock absorber 540 990 1290 2100 2890 4100 7650
High precision type With adjustment bolt 560 1090 1410 2240
With internal shock absorber 570 1090 1410 2260
Note) Values above do not include auto switch weights.

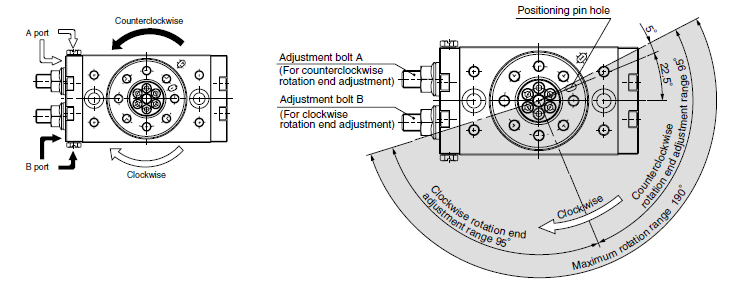

4: Rotation Direction and Rotation Angle
1. The rotary table turns in the clockwise direction where the A port is pressurized, and in the counterclockwise direction when the B port is pressurized.
2. By adjusting the adjustment bolt, the rotation end can be set within the ranges shown in the drawing for the desired rotation angle.
3. The rotation angle can also be set on a type with internal absorber.
With adjust bolt, internal shock absorber
Size Adjustment angle per rotation of
angle adjustment screw
10 10.2°
20 7.2°
30 6.5°
50 8.2°
70 7.0°
100 6.1°
200 4.9°
Note:
1. The drawing shows the rotation range of the positioning pin hole.
2. The pin hole position in the drawing shows the counterclockwise
rotation end when the adjustment bolts A and B are tightened
equally and the rotation is adjusted 180°.
Rotation Direction and Rotation Angle
5: Rotation Range Example
1. Various rotation ranges are possible as shown in the drawings below using adjustment bolts A and B.
(The drawings also show the rotation ranges of the positioning pin hole.)
2. The rotation angle can also be set on a type with inertial absorber.
Rotation Range Example

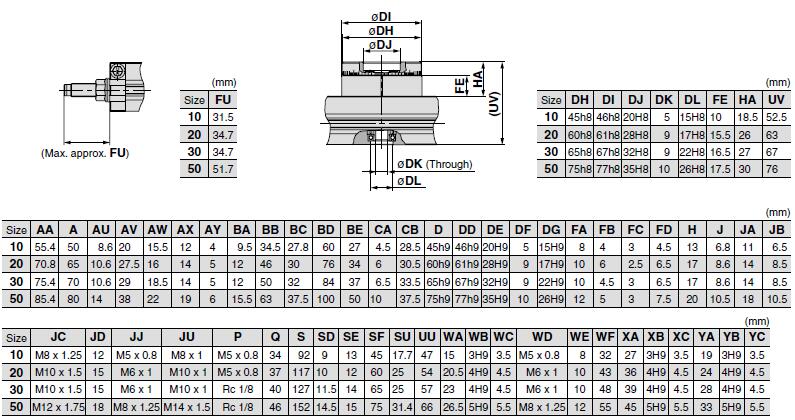

6: Constructure
structure 1
structure 2
7: Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
3. Also we can send by your delivery acount if you want.
4. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
8: After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
