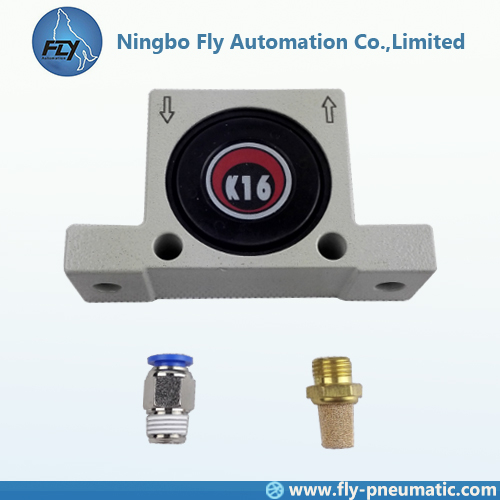

K13 K16 Findeva K type Pneumatic ball vibrator Aluminium Body Rotary Vibrator

Pneumatic ball vibrator K series
1. Aluminium Body
2. Rotary Vibrator
3. 2 Sets of mounting holes
4. Frequency / Force adjustable by air pressure
5. Suitable for temperature up to 100oC
6. Force 130 N to 4050 N

Quantity:
  • K13 K16
  • Findeva
  • 0120
K13 K16 Findeva K type Pneumatic ball vibrator Aluminium Body Rotary Vibrator

1.  Pneumatic ball vibrator K series
1. Aluminium Body
2. Rotary Vibrator
3. 2 Sets of mounting holes
4. Frequency / Force adjustable by air pressure
5. Suitable for temperature up to 100oC
6. Force 130 N to 4050 N

2.  Structure and material
1. Extruded aluminium alloy body
2. Hardened ground steel alloy races
3. Nylon Endplates
4. Hardened lapped ball
5. Air Inlet
6. Air exhaust
7. Base mounting holes
8. Lateral Mounting
Standard Units K8 to K36 with nylon endplates
Max Temperature 100oC=212oF
Special Units K20HT to K36HT
Max Temperature 150oC=300oF
structure and material

3. Performance
Performance date

4. Dimension
Model A B C D E F G H Weight
mm mm mm mm mm mm mm BSP KG
K-8 50 20 86 68 12 7 40 G1/4" 0.2
K10 0.2
K-13 65 27 113 90 16 9 50 G1/4" 0.3
K-16 0.3
K-20 80 38 128 104 16 9 60 G1/4" 0.6
K-25 0.6
K-30 100 50 160 130 20 11 80 G3/8" 1.2
K-36 1.4

5. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
