1. Product Name: K4502 K4503 Goyen Solenoid valve CA-45T Nitrile Viton membranes
2. Code: K4502 or K4503
3. Description High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.
4. Maintenance
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.
5. Operation
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater
6. Installation
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
7. Approvals
Integrally piloted valves meet the requirements of:
1. C-Tick
2. EMC (89/336/CE)
3. ATEX II 3 G & D (94/9/CE) (when fitted with QR or QF type solenoids)
8. Goyen diaphragm Model | Nitrile | Viton | Low Temperature -60℃ | Includes |

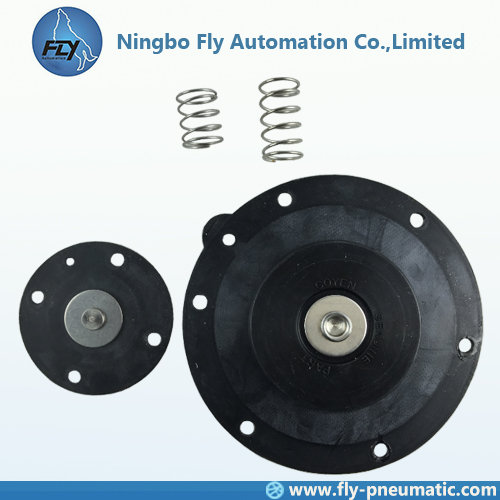

CA/RCA20T | K2000 | K2007 | NA | Diaphragm kits include main and secondary diaphragm (where required) and all springs. These kits are for discontinued valves |
CA/RCA25T | K2501 | K2503 | K2504 |
CA/RCA35T | K3500 | K3501 | K3502 |
CA/RCA40T | K4000 | K4007 | NA |
CA/RCA45T | K4502 | K4503 | K4522 |
CA/RCA50/62T | K5004 | K5000 | NA |
CA/RCA76T | K7600 | K7601 | NA |
Pilot repair kit | K0380 | NA | o-ring, armature assembly, armature spring, ferrule |
Pilot repair kit | K0580 |
9. Delivery 1. If the products we have in store, we will send it out ASAP after payment.
2. Also we can send by your delivery acount if you want.
3. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
