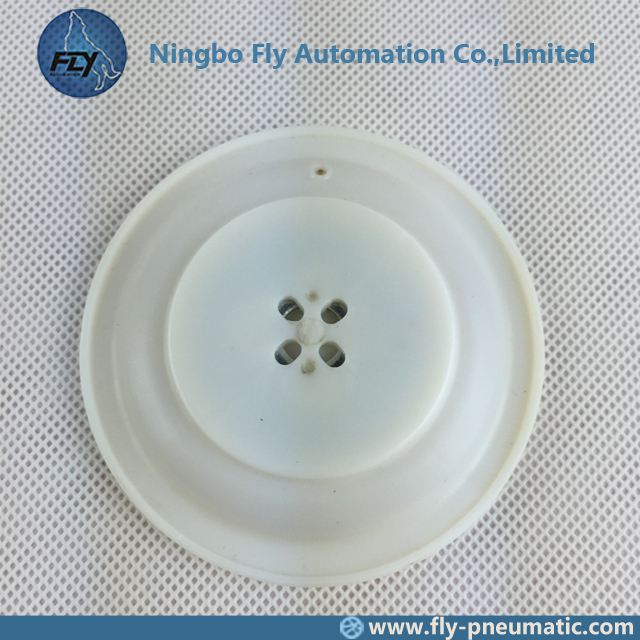

1. Product name: M/D25 Autel Pulse Solenoid Valve 1 Inch AE1825B1 AE1825I06 AE2825I06 Membrane Repair Kit
2. General Description
The Threaded Connection series is a range of electrovalves used for cleaning filter elements in air filtration system. The characteristic of this model is the female threaded connection (both in output and input). The quick opening with a great volume of air allows an high jet in a short time and a reduced air consumption. All That is achieved from a deep studying of internal geometrical characteristics and from a technological research on diaphragm. This guarantees rapid openingclosing and a working for over a million of shots.
3. General specification
Static Operation: Normally closed
Temperature: -20 °C +100 °C
Max Pressure: 8 Bar
Connection: Threaded
Material: Die cast aluminium
Pilot: Brass
Fluid: Filtered air not lubricated
4. Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
5. Operation
Recommended on time range: 50-500ms Recommended time between pulses: 1 minute or greater

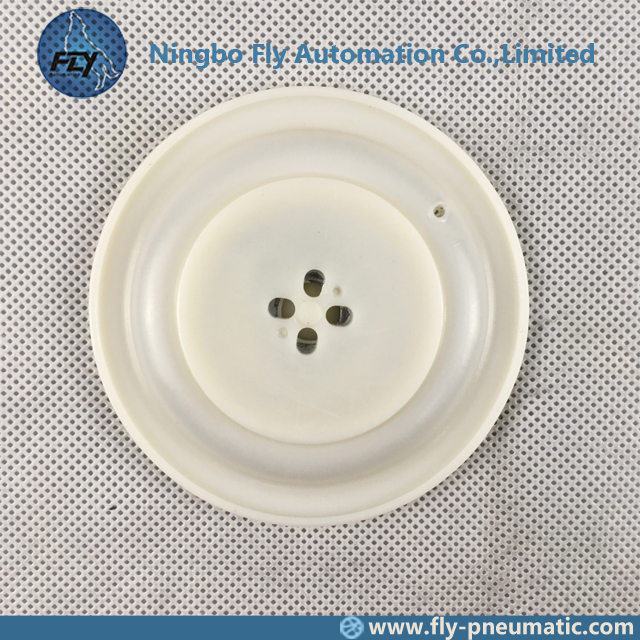

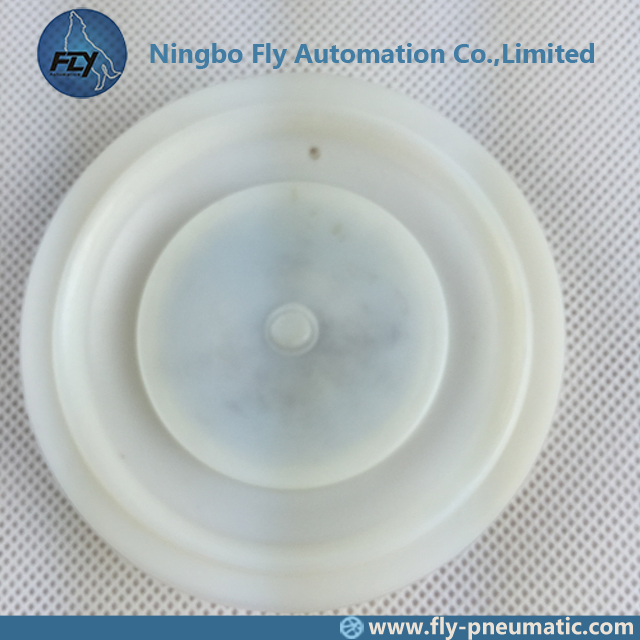

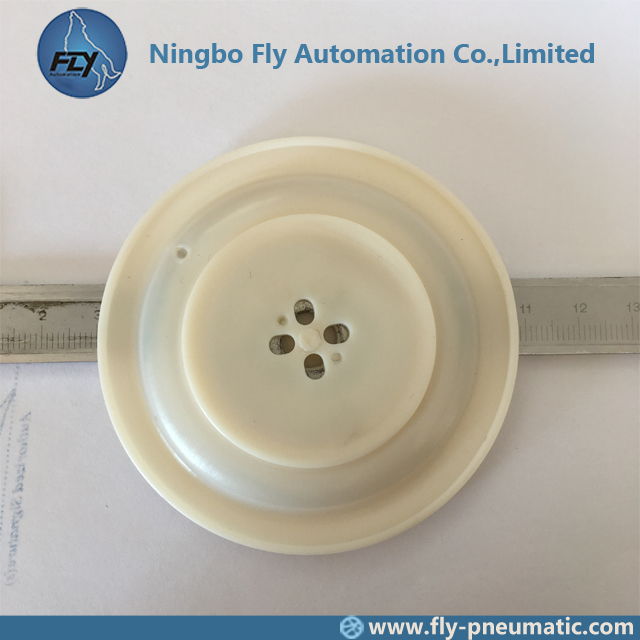

6. Product show

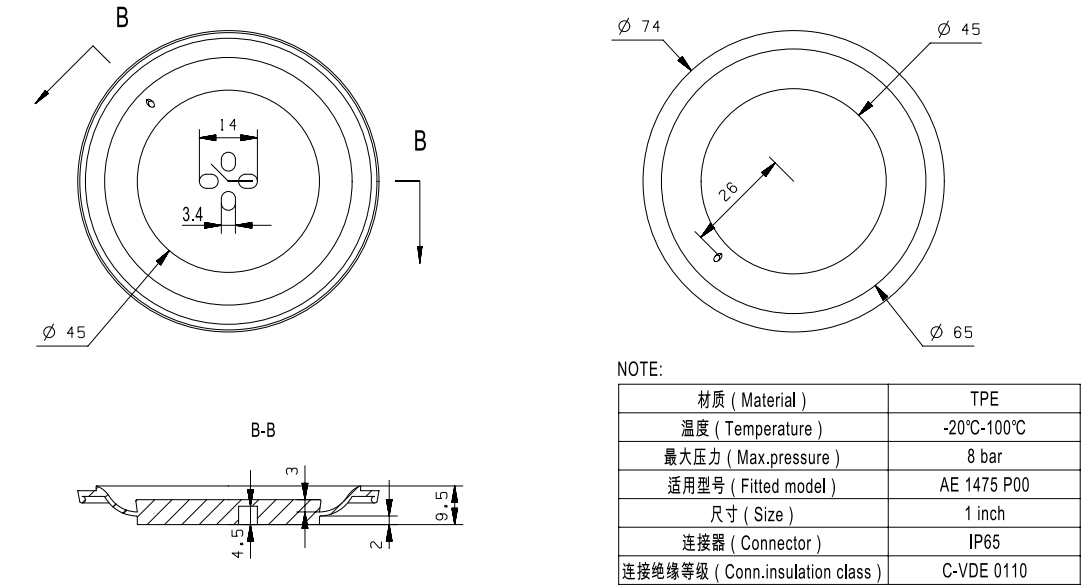

7. Drawing
