MHZ2-20D SMC Standard MHZ2 series High accuracy Parallel type air gripper Double acting

1. Other types contact freely, please!
2. MHZ2-20D means: 2 fingers, 20mm bore
3. Integral guide rail construction
4. High degree of mounting flexibility

Quantity:
  • MHZ2-20D
  • SMC
  • 0033
  • Aluminium
  • 2
  • 20mm
  • 0.1~0.7MPa
  • -10 to +60℃
1. Product Name: MHZ2-20D SMC Standard MHZ2 series High accuracy Parallel type air gripper Double acting

2. Order Code:
order code


3. Specifications
Operating
pressure
Double acting Φ6: 0.15 to 0.7MPa
Φ10: 0.2 to 0.7MPa
Φ6 to Φ40: 0.1 to 0.7MPa
Single acting Normally open Φ6: 0.3 to 0.7MPa
Φ10: 0.35 to 0.7MPa
Φ6 to Φ40: 0.25 to 0.7MPa
Normally closed
Ambient and fluid temperature –10 to 60 °C
Repeatability Φ6 to Φ25: ±0.01mm
Φ32 to Φ40: ±0.02mm
Maximum operating frequency Φ6 to Φ25: 180c.p.m.
Φ32 to Φ40: 60c.p.m.
Lubrication Non-lube
Action Double acting, Single acting
Auto switch (option) Note) Solid state switch (3 wire, 2 wire)
Note) Refer to pages 48 through 60 for details regarding auto switch specifications.

4. Models
Action Model Bore
size
(mm)
Gripping force ① Opening/
Closing
stroke
(both sides)
mm
Weightg
Gripping force per finger Effective value N
External
gripping force
Internal
gripping force
Double acting MHZ2-6D 6 3.3 6.1 4 27
MHZ2-10D(N) 10 11 17 4 55
MHZ2-16D(N) 16 34 45 6 115
MHZ2-20D(N) 20 42 66 10 235
MHZ2-25D(N) 25 65 104 14 430
MHZ2-32D 32 158 193 22 715
MHZ2-40D 40 254 318 30 1275
Single
acting
Normally open MHZ2-6S 6 1.9 _ 4 27
MHZ2-10S(N) 10 7.1 4 55
MHZ2-16S(N) 16 27 6 115
MHZ2-20S(N) 20 33 10 240
MHZ2-25D(N) 25 45 14 435
MHZ2-32S 32 131 22 760
MHZ2-40S 40 217 30 1370
Normally closed MHZ2-6C 6 _ 3.7 4 27
MHZ2-10C(N) 10 13 4 55
MHZ2-16C(N) 16 38 6 115
MHZ2-20C(N) 20 57 10 240
MHZ2-25C(N) 25 83 14 430
MHZ2-32C 32 161 22 760
MHZ2-40C 40 267 30 1370
Note 1) Values based on pressure of 0.5MPa, gripping point L = 20mm, at center of stroke.
Note 2) Values excluding weight of auto switch.



5. Structures

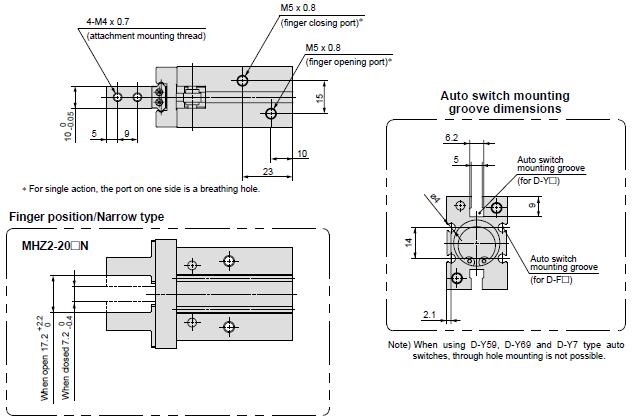

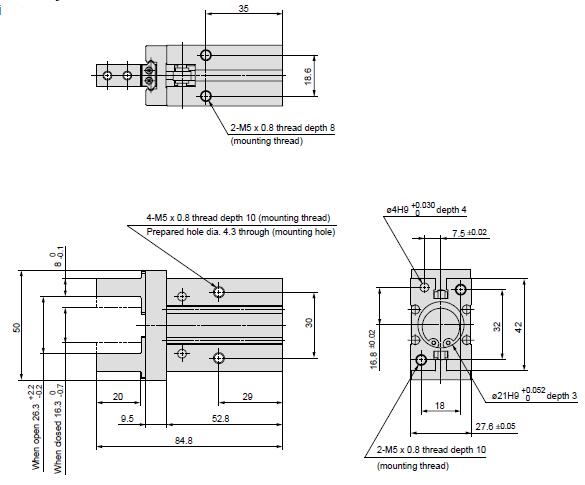

structure 1 structure 2

6. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

7. Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

8. Products Shopping Guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
