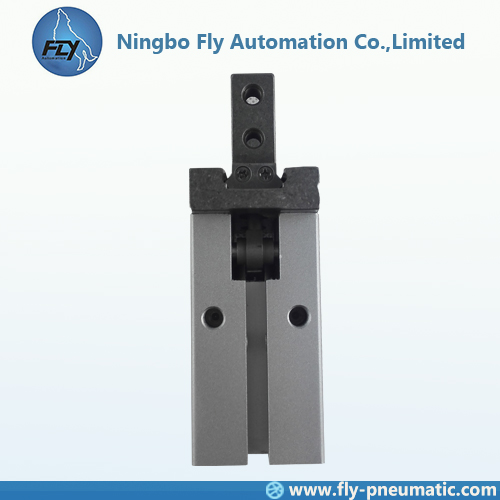

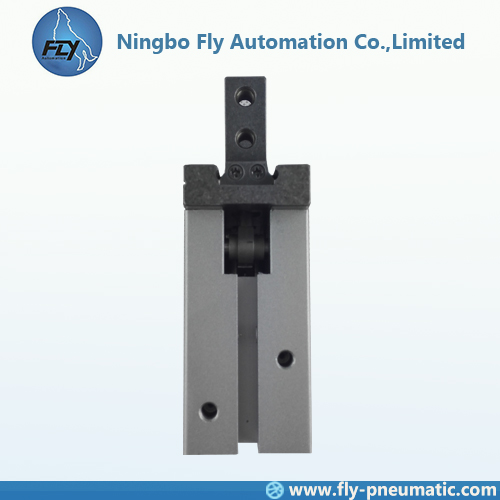

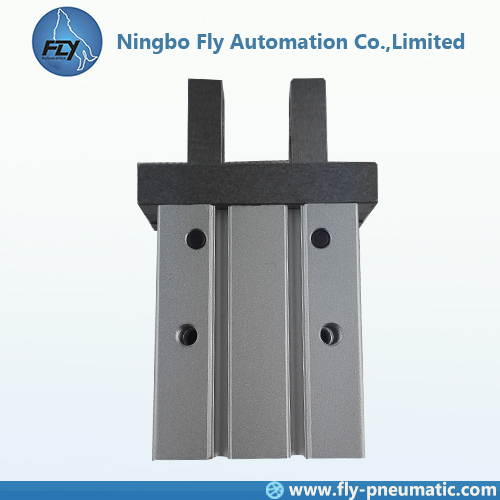

MHZ2-25D SMC Standard MHZ2 series High rigidity Parallel type air gripper Double acting

1. Other types contact freely, please!
2. MHZ2-25D means: 2 fingers, 25mm bore
3. Integral guide rail construction
4. High degree of mounting flexibility

Quantity:
  • MHZ2-25D
  • SMC
  • 0034
  • Aluminium
  • 2
  • 20mm
  • 0.1~0.7MPa
  • -10 to +60℃
1. Product Name: MHZ2-20D SMC Standard MHZ2 series High accuracy Parallel type air gripper Double acting

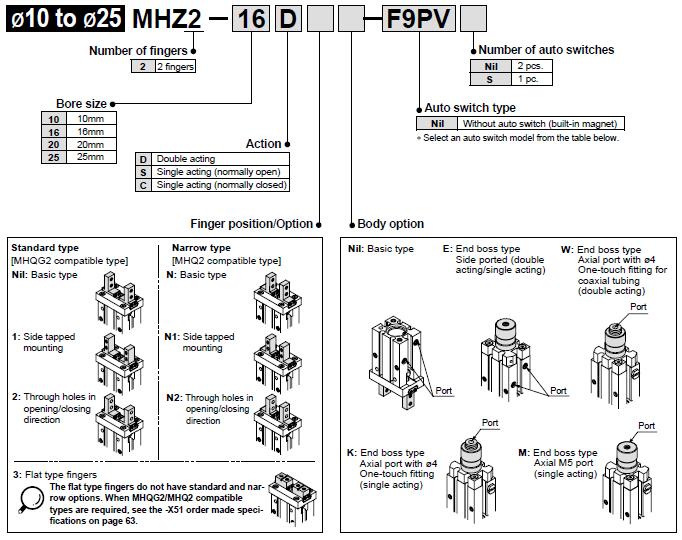

2. Order Code:
order code


3. Specifications
Bore: 6mm, 10mm, 16mm, 20mm, 25mm, 32mm, 40mm
Operating
pressure
Double acting Φ6: 0.15 to 0.7MPa
Φ10: 0.2 to 0.7MPa
Φ6 to Φ40: 0.1 to 0.7MPa
Single acting Normally open Φ6: 0.3 to 0.7MPa
Φ10: 0.35 to 0.7MPa
Φ6 to Φ40: 0.25 to 0.7MPa
Normally closed
Ambient and fluid temperature –10 to 60 °C
Repeatability Φ6 to Φ25: ±0.01mm
Φ32 to Φ40: ±0.02mm
Maximum operating frequency Φ6 to Φ25: 180c.p.m.
Φ32 to Φ40: 60c.p.m.
Lubrication Non-lube
Action Double acting, Single acting
Auto switch (option) Note) Solid state switch (3 wire, 2 wire)
Note) Refer to pages 48 through 60 for details regarding auto switch specifications.

4. Models
Action Model Bore
size
(mm)
Gripping force ① Opening/
Closing
stroke
(both sides)
mm
Weightg
Gripping force per finger Effective value N
External
gripping force
Internal
gripping force
Double acting MHZ2-6D 6 3.3 6.1 4 27
MHZ2-10D(N) 10 11 17 4 55
MHZ2-16D(N) 16 34 45 6 115
MHZ2-20D(N) 20 42 66 10 235
MHZ2-25D(N) 25 65 104 14 430
MHZ2-32D 32 158 193 22 715
MHZ2-40D 40 254 318 30 1275
Single
acting
Normally open MHZ2-6S 6 1.9 _ 4 27
MHZ2-10S(N) 10 7.1 4 55
MHZ2-16S(N) 16 27 6 115
MHZ2-20S(N) 20 33 10 240
MHZ2-25D(N) 25 45 14 435
MHZ2-32S 32 131 22 760
MHZ2-40S 40 217 30 1370
Normally closed MHZ2-6C 6 _ 3.7 4 27
MHZ2-10C(N) 10 13 4 55
MHZ2-16C(N) 16 38 6 115
MHZ2-20C(N) 20 57 10 240
MHZ2-25C(N) 25 83 14 430
MHZ2-32C 32 161 22 760
MHZ2-40C 40 267 30 1370
Note 1) Values based on pressure of 0.5MPa, gripping point L = 20mm, at center of stroke.
Note 2) Values excluding weight of auto switch.



5. Structures
structure 1 structure 2
