NF8327B102 8327B102
ASCO

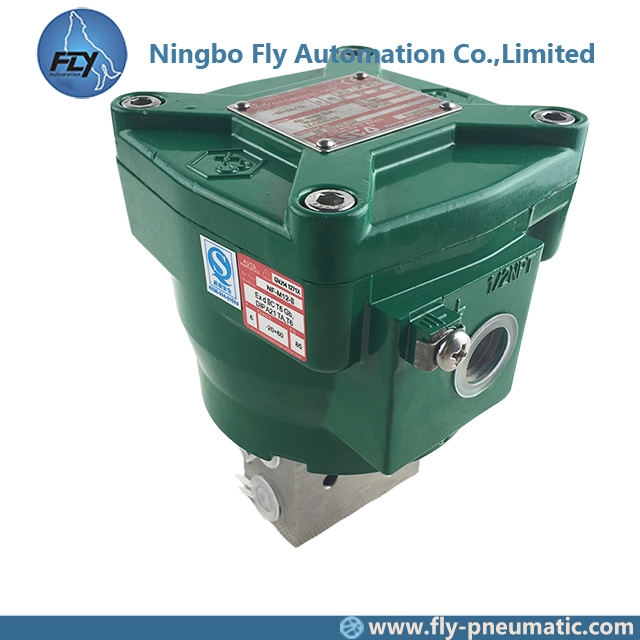

1. Product Name: NF8327B102 8327B102 ASCO 8327 Series 1/4 inch stainless steel Body Explosion Proof Solenoid Valve
2. Serves time
0:00 - 23:59
From Monday to Sunday
3. Product show
4. FEATURES
• Solenoid valves with explosionproof operators NF or WSNF type for use in potentially explosive atmospheres according to ATEX Directive 2014/34/EU
EU type examination certificate no.: LCIE 00 ATEX 6008 X
IECEx Certificate of Conformity no.: IECEx LCI 07.0015X
• Compliance with the Essential Health and Safety Requirements has been as-sured by compliance with the International and European Standards EN-IEC
60079-0, EN-IEC 60079-1 and EN-IEC 60079-31
• The solenoid valves are recommended for pilot applications with high flow, wide pressure ranges and no minimum operating pressure
• Special execution for low ambient and fluid temperatures
• Manual Operators are optional including an under pressure removable type
• The valves are certified according to IEC 61508 Functional Safety data and have
SIL-3 capability (TÜV & Exida certification)

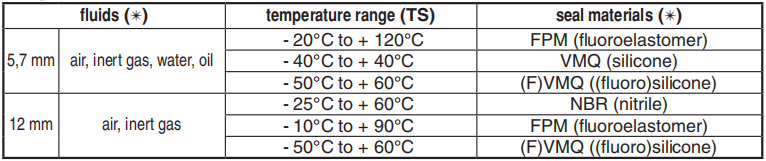

5. GENERAL
Differential pressure 0 - 10 bar [1 bar =100 kPa]
Maximum viscosity 65 cSt (mm2/s)
Response time < 100 ms

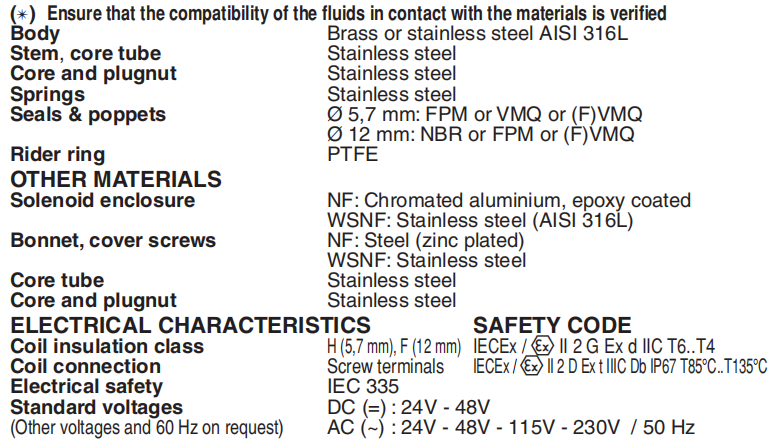

6. MATERIALS IN CONTACT WITH FLUID
