You are here: Home » Products » Pneumatic valve » ASCO Solenoid valve » NFETG210D189 G210D189 ASCO 210 Series 1" DN25 Stainless Steel High Flow General Service Solenoid Valve
Share to:

NFETG210D189 G210D189 ASCO 210 Series 1" DN25 Stainless Steel High Flow General Service Solenoid Valve

1. Port size: 1 inch
2. Material: Stainless Steel

Quantity:
  • NFETG210D189 G210D189
  • ASCO

1. Product Name: NFETG210D189 G210D189 ASCO 210 Series  1" DN25 Stainless Steel High Flow General Service Solenoid Valve

2. Serves time

0:00 - 23:59

From Monday to Sunday

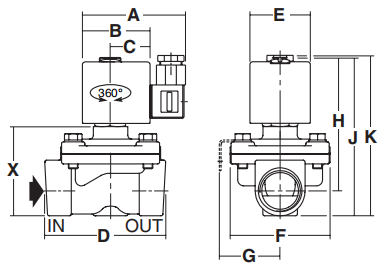

3. Drawing

Drawing

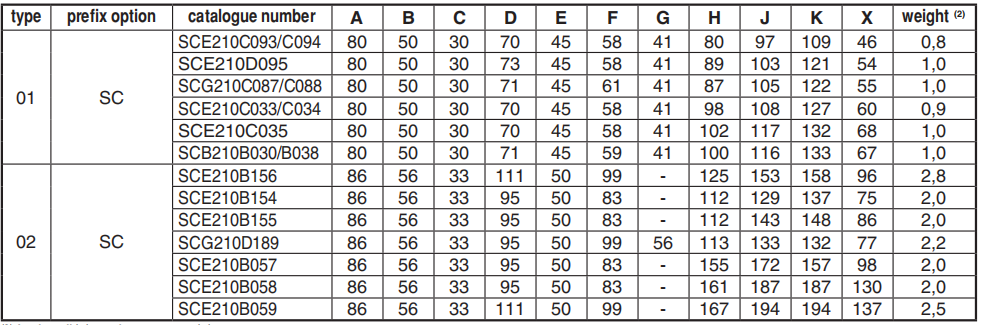

Dimension

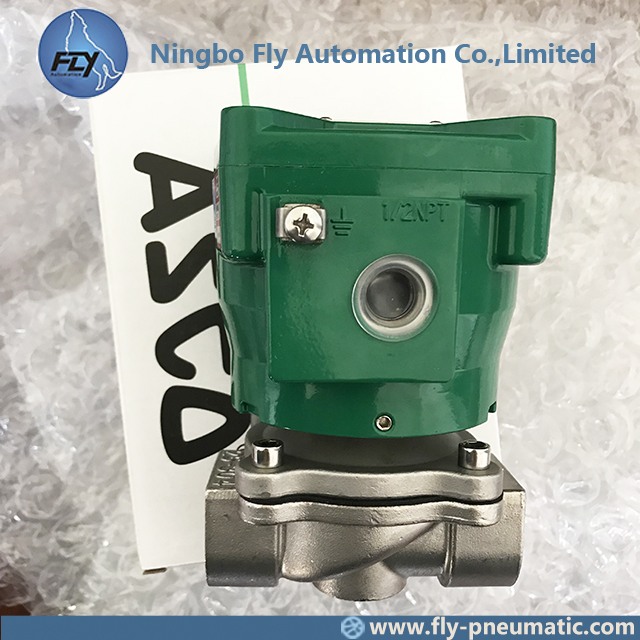

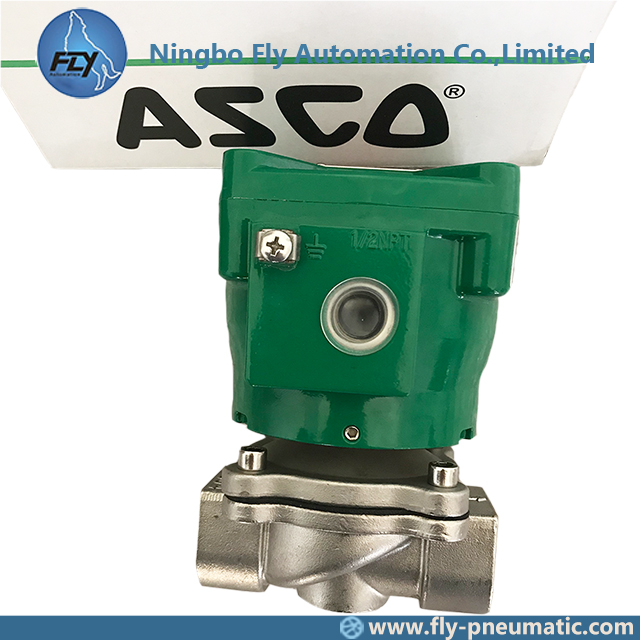

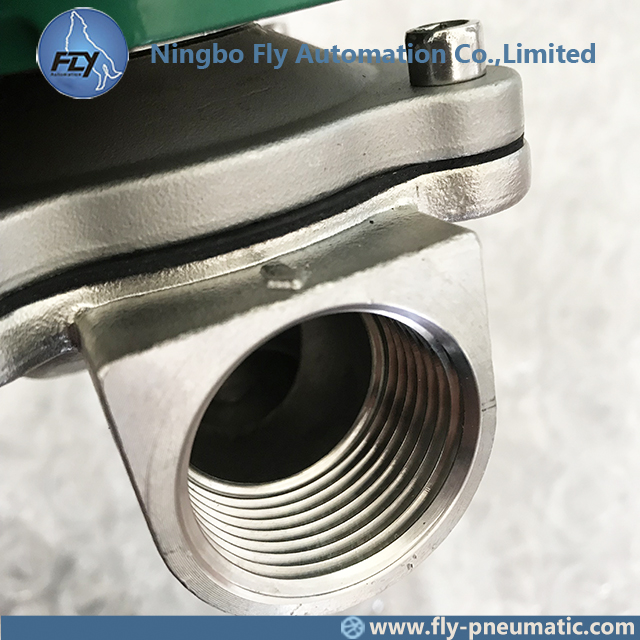

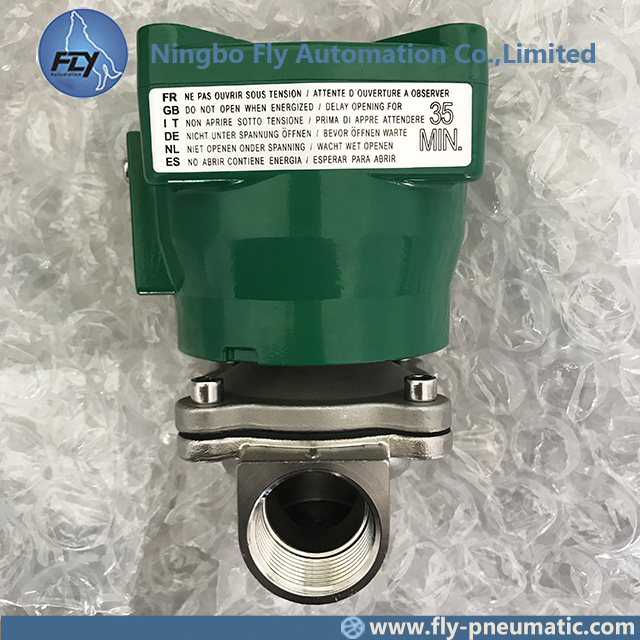

4. Product show

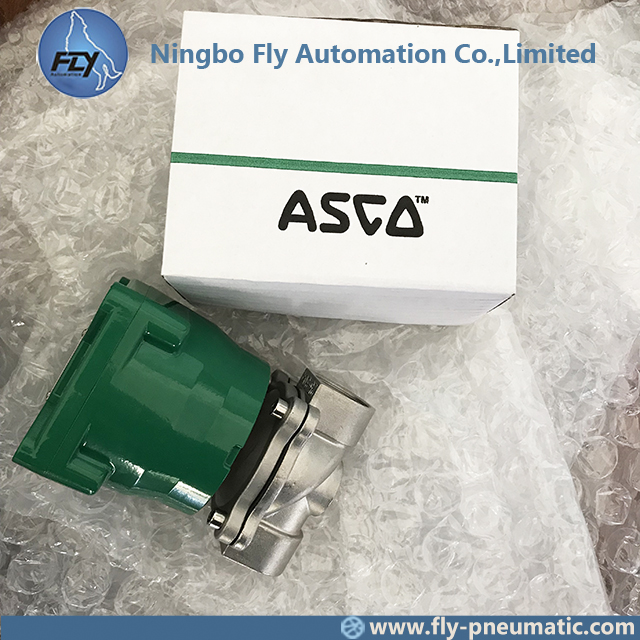

IMG_3033IMG_3036


5. ELECTRICAL CHARACTERISTICS

ELECTRICAL CHARACTERISTICS

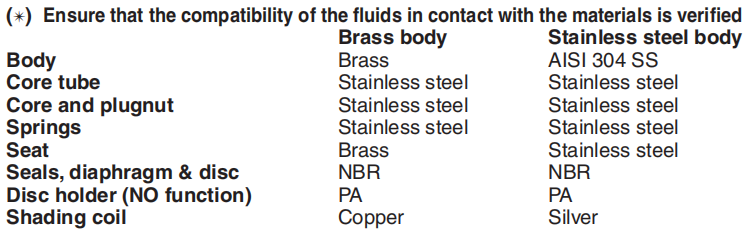

6. MATERIALS IN CONTACT WITH FLUID

MATERIALS IN CONTACT WITH FLUID


7. FEATURES

• Two way shut-off valves for the control air, inert gas, water, oil and other gases/liquids compatible with the sealing material used

• Valves do not require a minimum operating pressure

• All products are covered by Pressure Equipment Directive 2014/68/EU and are suitable for group 1 and 2 fluids

• The solenoid valves satisfy all relevant EU directives


8. GENERAL

Differential pressure         See «SPECIFICATIONS» [1 bar =100 kPa]

Maximum viscosity           65 cSt (mm2/s)

Response time                 15 - 120 ms
