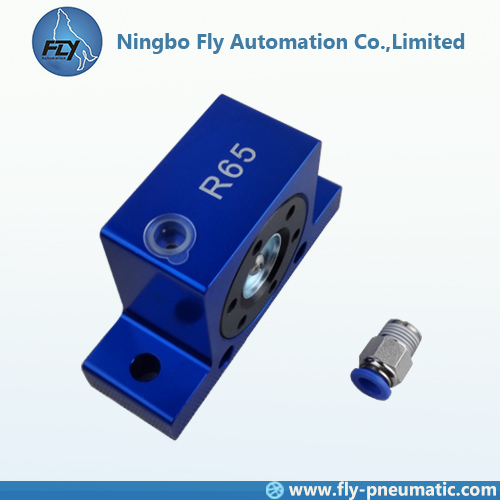

R65 Findeva R series Pneumatic roller vibrator Rotary Vibrator Steel Alloy Roller 1/4" BSP
1. Pneumatic ball vibrator R series
1. Aluminium Body
2. Rotary Vibrator
3. Frequency / Force adjustable by air pressure
4. Suitable for temperature up to 140 C
5. Force 1070 N to 12500 N
2. Structure and material
1. Extruded Aluminium Alloy Casting
2. Cast Iron Liner
3. Steel Alloy Roller
4. Plastic End Plates
5. Vertical Air Inlet
6. Horizontal Air Inlet
7. Air Groove
8. Inlet Jets
9. Exhaust Ports
10. Exhaust Diffuser
11. Silencer Plate
12. Base Mounting Holes
13. Lateral Mounting Holes
3. Performance
4. Dimension
| Type | A | B | C | D | E | F | G | H | Weight |
| mm | mm | mm | mm | mm | mm | mm | BSP | KG |
| R50 | 50 | 29 | 86 | 68 | 12 | 7 | 40 | G1/8" | 0.3 |
| R65 | 65 | 37 | 113 | 90 | 16 | 9 | 50 | G1/4" | 0.6 |
| R80 | 80 | 43 | 128 | 104 | 16 | 9 | 60 | G1/4" | 1.0 |
| R100 | 100 | 52 | 160 | 130 | 20 | 11 | 80 | G3/8" | 1.9 |
| R120 | 120 | 77 | 194 | 152 | 24 | 24 | 17 | G3/8" | 4.4 |
5. Quality Standards The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections
6. Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
