RCA45DD DD Series Goyen Dust Collector 1-1/2" Pulse Solenoid Valve

1. Voltage: DC 24V, AC 110V, AC 220V
2. Port size: DN45

Quantity:
  • RCA45DD
  • Goyen

1. Product Name: RCA45DD DD Series Goyen Dust Collector 1-3/4" Pulse Solenoid Valve


2. Order code
Order code
3.
Operation

Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater


4. Approvals

Integrally piloted valves meet the requirements of:

• Atex II 2D Mechanical

• CSA (C&US), C22.2 No. 139-1982 UL Std No. 429

• C-Tick - integral pilots

• EMC (89/336/CE) - integral pilots



5.  Construction

Body and Dresser Nuts: Aluminium (diecast)

Ferrule: 304 SS Armature: 430FR SS

Seals: Nitrile or Viton (reinforced)

Spring: 304 SS

Screws: 302 SS

Dresser Nut Seals: Nitrile or Viton

Diaphragm Seat: PA-6 (standard), Viton coated mild steel or High Density PE

Refer to Q Series Solenoid product data sheet for solenoid construction details.


6.  Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.



7.  Description
High performance diaphragm valve with dresser nut ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.



8. Maintenance

Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.


9.  Installation
For your safety do not pressurise system until all valves and pipes are fully secured. Do not attempt to remove a fitted valve while system is under pressure. 1. Prepare supply and blowtube pipes* to suit valve specification. Avoid installing valves underneath the tank.  2. Ensure tank and pipes are free from dirt, rust or other particulate.  3. Ensure supply air is clean and dry.  4. Mount valve to inlet pipes and blowtube to valve, tighten dresser nut.  5. Tanks and pipes must be independently restrained from valve.  6. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).  7. Apply moderate pressure to system and check for installation leaks.  8. Fully pressurise system.  9. Test fire and listen for proper actuation and crisp pulse noise.


13. Drawing

cas_dg_45dd

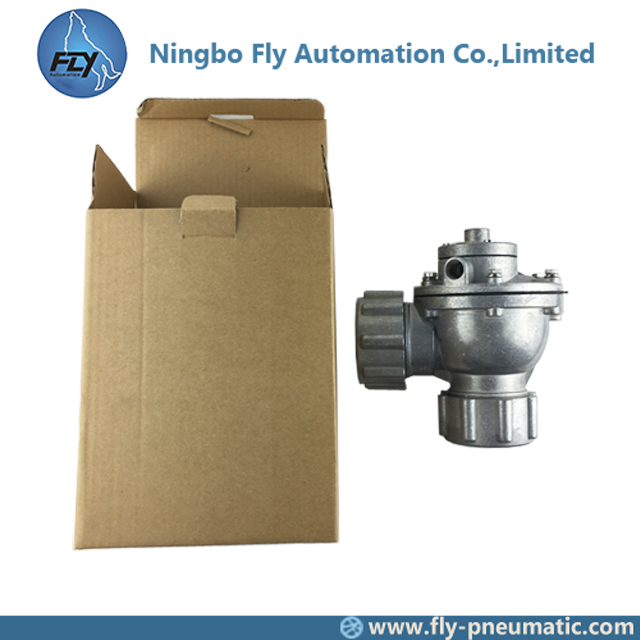

14.Product show

IMG_0075
