S25
Wamgroup

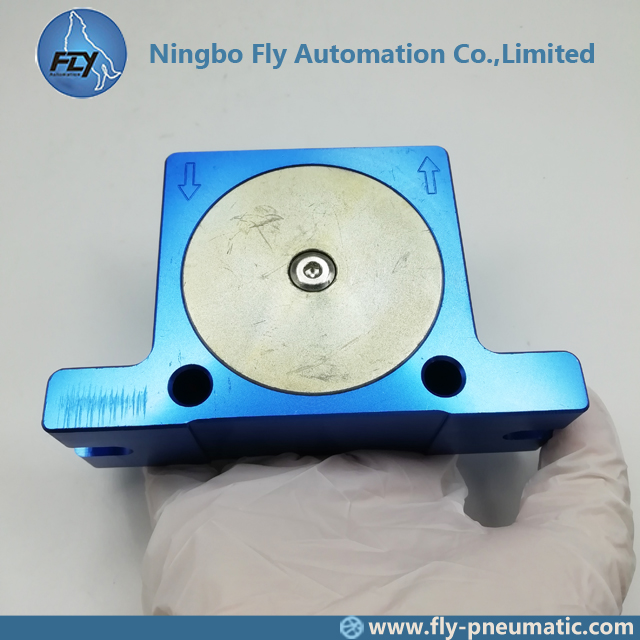

1. Product name: S25 Steel Alloy Roller Wamgroup S Sreies Oli Pneumatic Roller Vibrator
2. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
3. Suit for
| PRODUCT SERIES | APPLICATIONS | POWDERS | FEATURES | BENEFITS |
| S | Silos | Dry powders | Filter sleeve cleaning | Economical |
| Hoppers | Granules | Suitable for outdoor use | Low air consumption | |
| Piping | Plastics | Resistant to oxidation | High frequency vibration | |
| Chutes | Sand | Atex II2G c Tx | ||
| Compacting | Ashes | Atex II2D c Tx | ||
| Cement | ||||
| Lime |
4. Drawing
| DIMENSIONAL SPECIFICATIONS | |||||||||||||||
| MODEL | A | B | C | D | E | F | IN-OUT | WEIGHT | |||||||
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | kg | lb | ||
| S8 | 50 | 2 | 86 | 3.4 | 68 | 2.7 | 12 | 0.5 | 20 | 0.8 | 7 | 0.3 | 1/8" BSPP | 0.13 | 0.29 |
| S10 | 50 | 2 | 86 | 3.4 | 68 | 2.7 | 12 | 0.5 | 20 | 0.8 | 7 | 0.3 | 1/8" BSPP | 0.13 | 0.9 |
| S13 | 65 | 2.6 | 113 | 4.5 | 90 | 3.5 | 16 | 0.6 | 25 | 1 | 9 | 0.4 | 1/4" BSPP | 0.26 | 0.57 |
| S16 | 65 | 2.6 | 113 | 4.5 | 90 | 3.5 | 16 | 0.6 | 28 | 1.1 | 9 | 0.4 | 1/4" BSPP | 0.3 | 0.66 |
| S20 | 80 | 3.2 | 128 | 5.1 | 104 | 4.1 | 16 | 0.6 | 33 | 1.3 | 9 | 0.4 | 1/4" BSPP | 0.53 | 1.17 |
| S25 | 80 | 3.2 | 128 | 5.1 | 104 | 4.1 | 16 | 0.6 | 38 | 1.5 | 9 | 0.4 | 1/4" BSPP | 0.63 | 1.39 |
| S30 | 100 | 3.9 | 160 | 6.3 | 130 | 5.1 | 20 | 0.8 | 45 | 1.8 | 11 | 0.4 | 3/8" BSPP | 1.13 | 2.49 |
| S36 | 100 | 3.9 | 160 | 6.3 | 130 | 5.1 | 20 | 0.8 | 50 | 2 | 11 | 0.4 | 3/8" BSPP | 1.34 | 2.95 |
5. Data
| MODEL | VIBRATION | F.C. MAX | AIR CONSUMPTION | ||||||||||||
| Vpm | 2 bar (29 psi) | 4 bar (58psi) | 6 bar (87 psi) | 2 bar (29 psi) | 4 bar (58psi) | 6 bar (87 psi) | |||||||||
| 2 bar (29 psi) | 4 bar (58psi) | 6 bar (87 psi) | KG | LB | KG | LB | KG | LB | l/min | CF/min | l/min | CF/min | l/min | CF/min | |
| S8 | 25500 | 31000 | 35000 | 13 | 29 | 26 | 57 | 36 | 79 | 83 | 2.9 | 145 | 5.1 | 195 | 6.9 |
| S10 | 22500 | 28000 | 34000 | 25 | 55 | 47 | 103 | 71 | 156 | 92 | 3.2 | 150 | 5.3 | 200 | 7.1 |
| S13 | 15000 | 18500 | 22500 | 32 | 70 | 55 | 121 | 87 | 191 | 94 | 3.3 | 158 | 5.6 | 225 | 7.9 |
| S16 | 13000 | 17000 | 19500 | 45 | 99 | 80 | 176 | 110 | 242 | 122 | 4.3 | 200 | 7.1 | 280 | 9.9 |
| S20 | 10500 | 14500 | 16500 | 72 | 158 | 122 | 268 | 172 | 378 | 130 | 4.6 | 230 | 8.1 | 340 | 12 |
| S25 | 9200 | 12200 | 14000 | 93 | 205 | 157 | 345 | 205 | 451 | 160 | 5.7 | 290 | 10.2 | 425 | 15 |
| S30 | 7800 | 9700 | 12500 | 151 | 332 | 247 | 543 | 321 | 706 | 215 | 7.6 | 375 | 13.2 | 570 | 20.1 |
| S36 | 7300 | 9000 | 10000 | 206 | 453 | 315 | 693 | 405 | 891 | 260 | 9.2 | 475 | 16.8 | 675 | 23.8 |
6. Product show
7. S - ROTARY PNEUMATIC VIBRATORS - BALL
APPLICATION: Hopper and silo - screen - vibrating table - chute
POWDER: Dry and granular
PROBLEM SOLVING: Friction reduction - separation
8. FEATURES
DUTY CYCLE: Continuous
WORKING PRESSURE: From 2 bar to 6 bar (from 29 psi to 87 psi)
PNEUMATIC CIRCUIT: Filter + flow control valve + lubrification + 3/2 ways valve
AIR SUPPLY QUALITY: Class 5.4.4.
WORKING TEMPERATURE: From -20 °C to 200 °C (from -4 °F to 392 °F)
MAX NOISE LEVEL: 90 dB(a)
TECHNOLOGY: Rotary vibration - high frequency
ATEX: II 2D C TX, II 2G C TX
MATERIAL: Aluminium body and zinc plate cover
9. Applies to
1. Animal Feed Milling
2. Flour Milling
3. Paint & Varnish Processing
4. Plastics Processing
