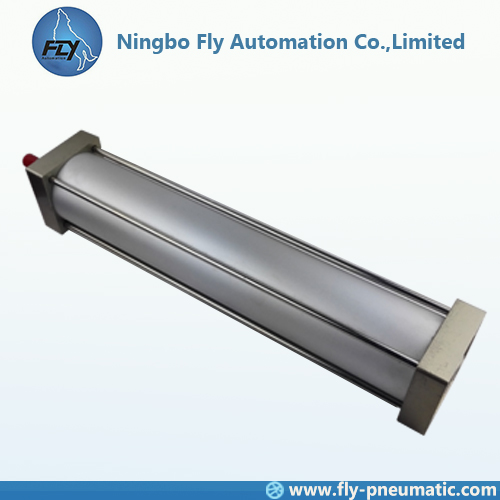

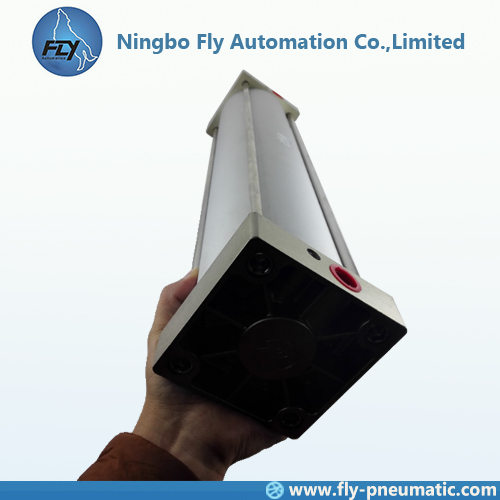

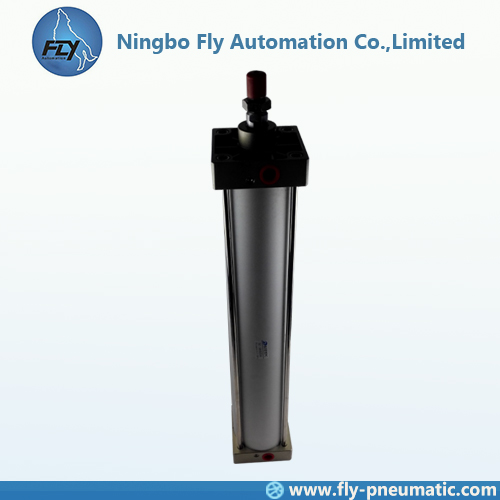

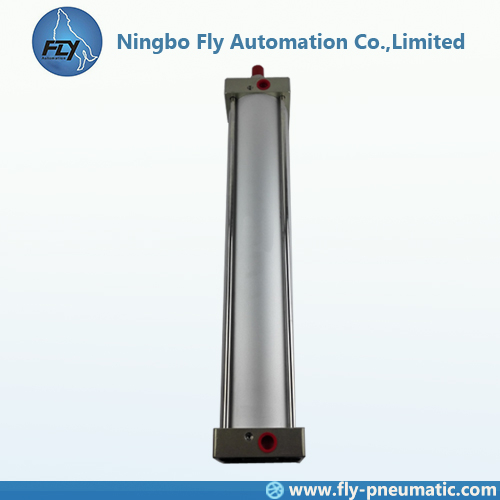

SC-100x500 Airtac SC series Standard Air cylinder Double acting type

1. This SC cylinder bore 100mm, stroke 500mm.
2. Other big size type please contact freely.
  • SC-100x500
  • Airtac
  • 0037
  • Aluminium alloy
  • 100mm
  • 500mm
  • 0.1~1.0MPa
  • -10 to +70℃
  • Double acting
1: Product Name: SC-100x500 Airtac SC series Standard Air cylinder Double acting type

2: Order code

3: Product features
1.Standard cylinder manufactured by our enterprise.
2. Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.
3.The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the function of grease reservation.
4.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
5.Cylinders and mounting accessories with several specifications are optional.
6. The buffer adjustment of cylinder is smooth and steady.
7.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃.
4: Specification
Bore size(mm) 32 40 50 63 80 100
Acting type Double acting
Fluid Air (to be filtered by 40 um filter element)
Mounting type SC Basic FA FB CA CB CR LB TC FTC TCM1
Operating pressure 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature  °c -20~80
Speed range mm/s 30~800
Cushion type Variable cushion
Adjustable cushion stroke mm  21 28 29
Port size 1/8" 1/4" 3/8" 1/2"
5: Installation
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.The medium used by cylinder shall be filtered to 40μm or below.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
6.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
7.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
8.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the  surface. Anti-dust caps shall be added in air inlet and outlet ports.
6: Product instructure
1. SC series cylinders
2. SCD SCJ series cylinders

SCD SCJ 7: Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
8: Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
9: After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
