SC 32x150 Airtac SC series Air cylinder Double acting type

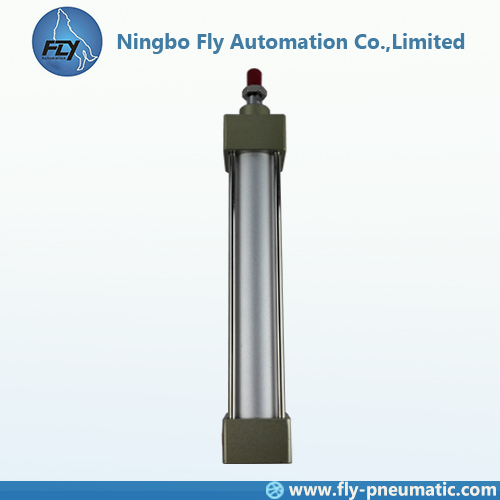

This SC cylinder bore 32mm, stroke 150mm. Front cover and back cover were painted with light yellow. Looks very beautiful and touched very smooth. Also, you can choose different bore and stroke, we can do it for you too.

Quantity:
  • SC 32X150
  • Airtac
  • 0008
  • Aluminium alloy
  • 32mm
  • 150mm
  • 0.1~1.0MPa
  • -10 to +70℃
  • Double acting
1: Product Name: SC 32x150 Airtac SC series Air cylinder Double acting typy

2: Order code

订购码
3: Product features
1.Standard cylinder manufactured by our enterprise.
2. Compared with ISO15552 standard cylinder, SC series cylinder with the same bore size is shorter.
3.The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the function of grease reservation.
4.It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
5.Cylinders and mounting accessories with several specifications are optional.
6. The buffer adjustment of cylinder is smooth and steady.
7.The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃.
4: Specification
Bore size(mm) 32 40 50 63 80 100
Acting type Double acting
Fluid Air (to be filtered by 40 um filter element)
Mounting type SC Basic FA FB CA CB CR LB TC FTC TCM1
SCD SCJ Basic FA LB TC TCM1
Operating pressure 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature  °c -20~80
Speed range mm/s 30~800
Cushion type Variable cushion
Adjustable cushion stroke mm  21 28 29
Port size 1/8" 1/4" 3/8" 1/2"
5: Installation
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40μm or below.
6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the  surface. Anti-dust caps shall be added in air inlet and outlet ports.
6: Product instructure
1. SC series cylinders
SC结构尺寸
2. SCD SCJ series cylinders

SCD SCJ 7: Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
3. Also we can send by your delivery acount if you want.
4. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
8: Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
9: After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
