1. Product Name: SCB320B174 B320B174 ASCO 320 Series 1/4 Inch Stainless Steel Direct Operated High Pressure Solenoid Valve
2. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

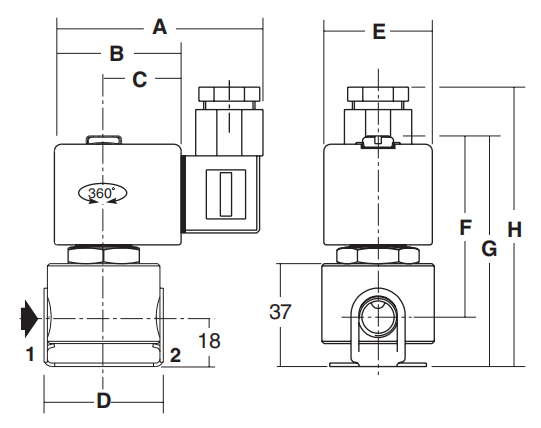

3. Drawing
| prefix option | A | B | C | D | E | F | G | H | J | K | L | X | Weight |
| SC | 80 | 50 | 30 | - | 43 | 45 | 21 | 36 | 70 | 96 | 108 | 45 | 0.57 |

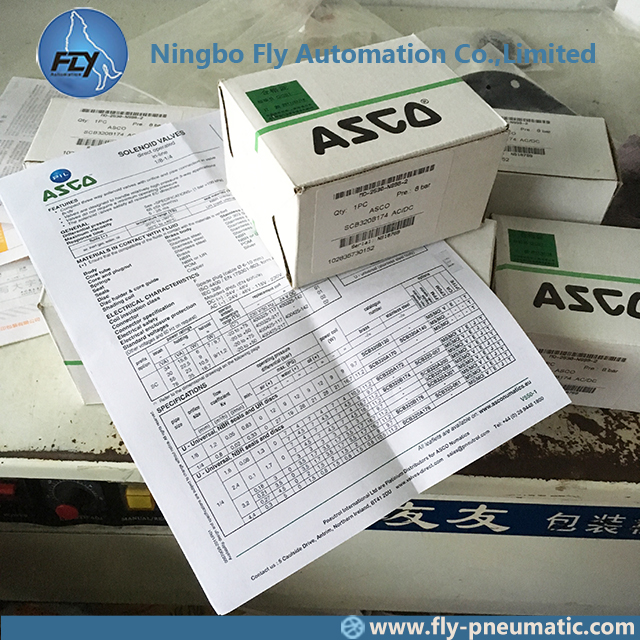

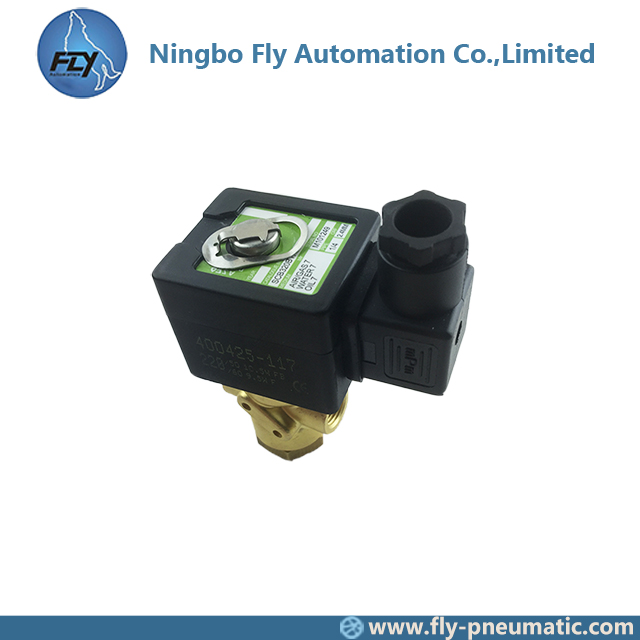

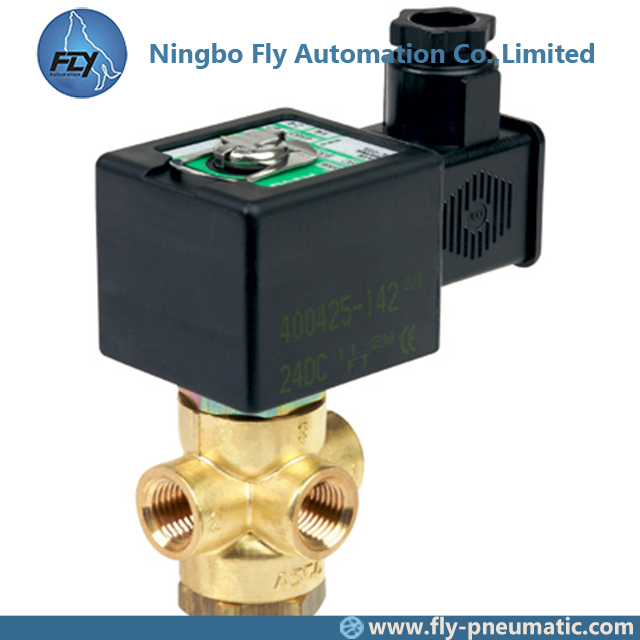

4. Product show
5. FEATURES
• Compact three way solenoid valves with orifice and pipe connection in valve body
• Valves are designed to handle relatively high pressure 3-way applications
• Valves do not require a minimum operating pressure
• The solenoid valves satisfy all relevant EU directives
6. GENERAL
Differential pressure See «SPECIFICATIONS» [1 bar =100 kPa]
Maximum viscosity 65 cSt (mm2/s)
Response time 5 - 25 ms

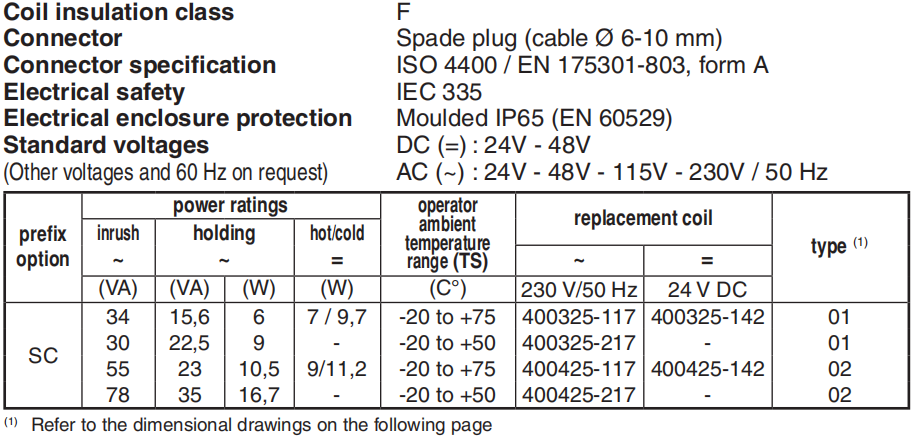

7. ELECTRICAL CHARACTERISTICS

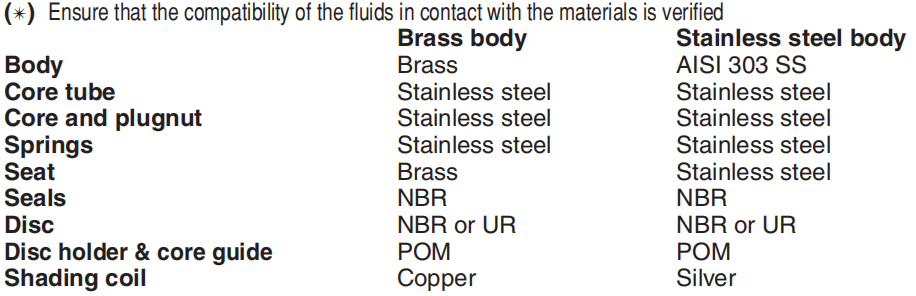

8. MATERIALS IN CONTACT WITH FLUID
