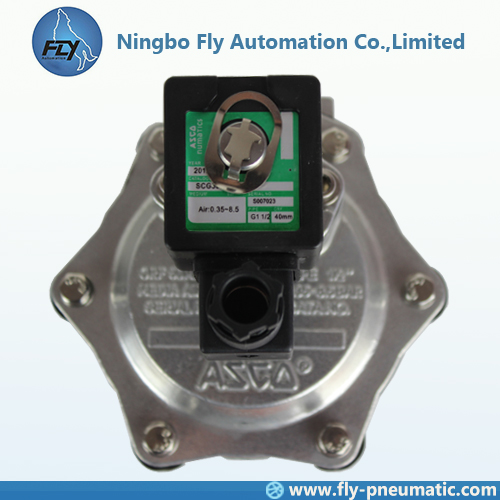

SCG353A051 ASCO 353 series 2.5" Aluminium Solenoid valve coil 400425-117

1. Port size: 2.5 inch
2. Material: Aluminium
3. Diaphragm repair kits code: C113686

Quantity:
  • SCG353A051
  • ASCO
  • 0085
  • Aluminium
  • 2.5 inch
  • 0.1~0.8MPa
  • -10~70℃
  • DC 24V, AC 110V, AC 220V
  • 1.5 million times or 5 years
1. Product Name: SCG353A051 ASCO 353 series 2.5" Aluminium Solenoid valve coil 400425-117

2. Order code: SCG353A051

3. GENERAL
Differential pressure: 0,35 - 8,5 bar [1 bar = 100kPa]
Ambient temperature range: -20 to +85°C
Coil insulation class: F
Connector: Spade plug (cable Φ 6 - 10 mm)
Electrical safety: IEC 335
Standard voltages: DC (=): 24V (Other voltages and 60 Hz on request) AC (~): 24V - 115V - 230V / 50 Hz

4. MATERIALS IN CONTACT WITH FLUID
Note: Ensure that the compatibility of the fluids in contact with the materials is verified
Body: Aluminium
Core tube: Stainless steel
Core and plugnut: Stainless steel
Springs: Stainless steel
Seals & disc: NBR (nitrile)
Diaphragms: CR (chloroprene)
Shading coil: Copper

5. FEATURES
1. The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3. The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4. The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
5. Integral pilot operated valves satisfy all relevant EC directives

6. Installations
1. The valves can be mounted in any position without affecting operation
2. Threaded pipe connection is: G (ISO 228/1) or compression fitting
3. For compression fitting types tightness is achieved by the compressed gasket on the blow tube
4. The use of the rubber gaskets as sealing members will allow a slight misalignment in piping
5. Other pipe threads are available on request
6. Installation/maintenance instructions are included with each valve
7. Spare Parts Kit and replacement coils are available

7. Operating options
1. Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE 10
2. Explosionproof solenoids for hazardous locations according to “ATEX” (CENELEC) and national standards
3. Electronic timer
4. Explosionproof and watertight solenoids according to “NEMA” standards
5. Hose connection executions (3" only)
6. Compliance with “UL” standards
7. Plug with visual indication and/or peak voltage suppression
8. Valves can also be supplied with FPM (fluorelastomer) diaphragms and seals. Use the appropriate suffix letter for identification

8. Structures and Dimension
structure
catalogue number A B C D E F G H J K L weight
SCG353A047 80 50 30 71 130 136 45 G 3/8 131 161 178 1.40
SCG353A050 80 50 30 95 168 165 45 G 3/4 165 210 227 2.90
SCG353A051 80 50 30 95 168 165 45 G 3/4 165 210 227 2.60


9. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

10. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
