SCG531C002 G531C002
ASCO
1. Product Name: SCG531C002 G531C002 ASCO 531 Series 1/4 Inch Aluminium Body Single/dual Solenoid Valve
2. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

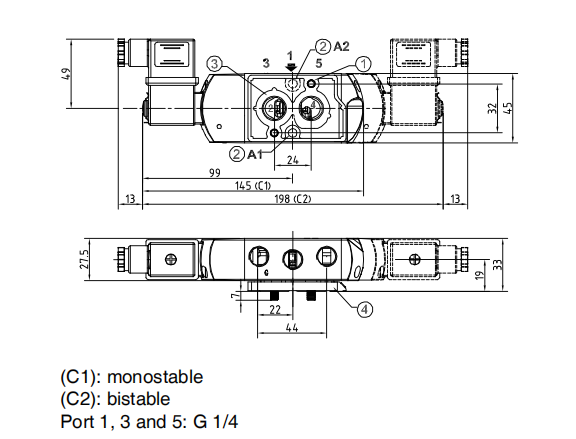

3. Drawing

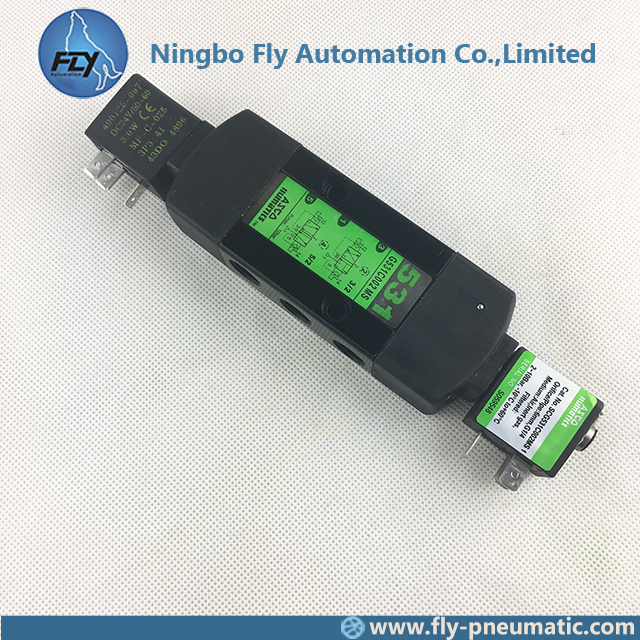

4. Product show
5. FEATURES
• The "NAMUR" style spool valve comes with threaded port connection and Namur interface, while the "THREADED" style spool valve comes with threaded port connection.
• Alltheexhaustportsofthis spool valveareconnectable, providingbetterenvironmental protection, particularly recommended for sensitive areas such as clean rooms as ell as applications in the pharmaceutical and food processing sectors
• The valve offers environmental protection against the ingress of liquids, dusts or any other foreign matters (environmentally-protected construction)
6. MATERIALS IN CONTACT WITH FLUID
Body Aluminium, black anodized
End cover (spring) Glass-filled PA
lnternal parts Zamak, stainless steel, (POM) aluminium
Core and plugnut Stainless steel
Sealings NBR+PUR
Shading coil Copper
7. GENERAL
Differential pressure 2 - 10 bar [1 bar = 100 kPa]
Flow (Qv at 6 bar) 1100 l/min (ANR)
Fluids air, inert gas, filtered
Temperature Range (TS) - 10°C to + 60°C
Sealings NBR (nitrile) + PUR (polyurethane)
