SCG531C017MS1 G531C017
ASCO
1. Product Name: SCG531C017MS1 G531C017 ASCO 531 Series 1/4 Inch Aluminium Pilot Operated Solenoid Valve
2. Serves time
0:00 - 23:59
From Monday to Sunday
3. Drawing

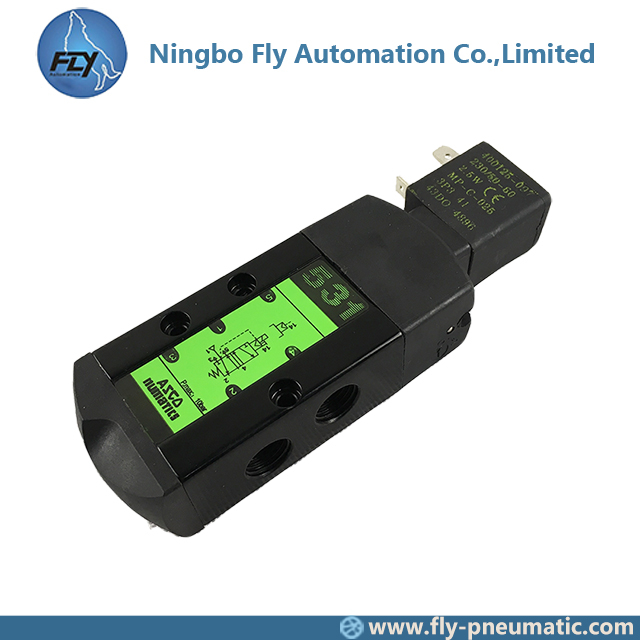

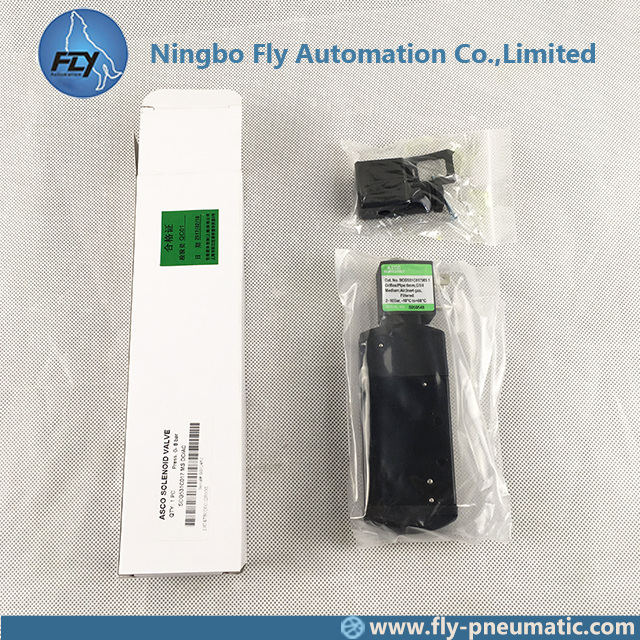

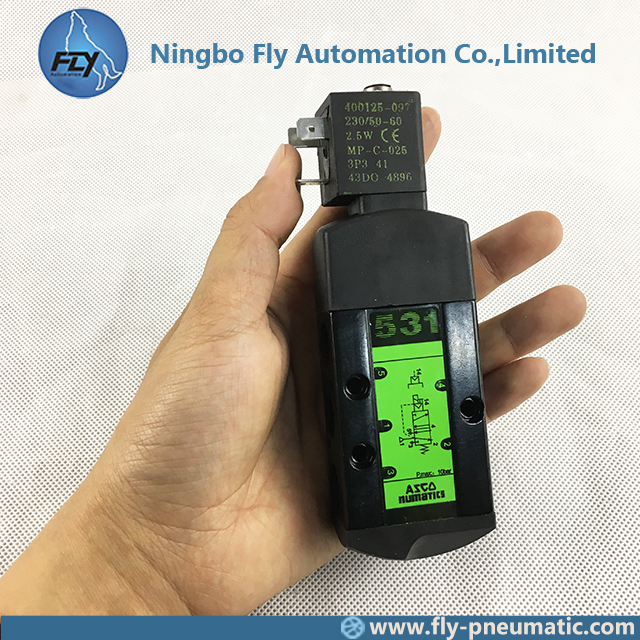

4. Product show
5. FEATURES
• The "NAMUR" style spool valve comes with threaded port connection and Namur interface, while the "THREADED" style spool valve comes with threaded port connection.
• Alltheexhaustportsofthis spool valveareconnectable, providingbetterenvironmental protection, particularly recommended for sensitive areas such as clean rooms as ell as applications in the pharmaceutical and food processing sectors
• The valve offers environmental protection against the ingress of liquids, dusts or any other foreign matters (environmentally-protected construction)
6. MATERIALS IN CONTACT WITH FLUID
Body Aluminium, black anodized
End cover (spring) Glass-filled PA
lnternal parts Zamak, stainless steel, (POM) aluminium
Core and plugnut Stainless steel
Sealings NBR+PUR
Shading coil Copper
7. GENERAL
Differential pressure 2 - 10 bar [1 bar = 100 kPa]
Flow (Qv at 6 bar) 1100 l/min (ANR)
Fluids air, inert gas, filtered
Temperature Range (TS) - 10°C to + 60°C
Sealings NBR (nitrile) + PUR (polyurethane)
