SK60
0131

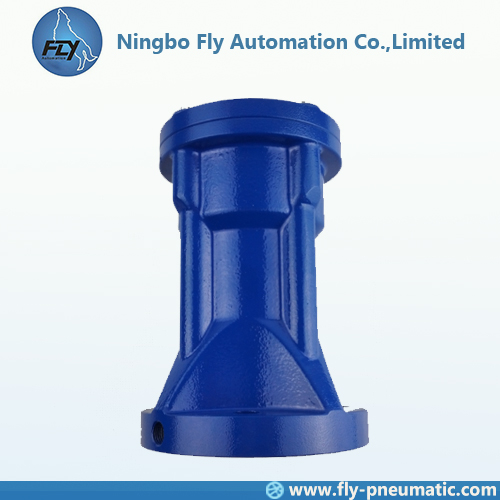

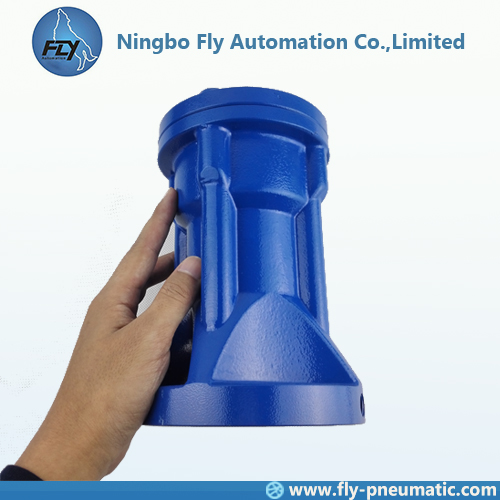

SK60 Japan SK Type Air knocker Pneumatic percussion hammer SK-60 Air vibrator
1. SK-Air Knocker
SK-type is the latest model of air knockers. Principle of the strong impact is magnetic as the same as the old types. Weights of the main bodies are reduced and durability is increased.
2. Specifications
| Type | Working pressure Mpa | Air Consumption L/one time | impact force Ns | Weight kg |
| SK-30 | 0.35~0.6 | 0.028 | 1.0~1.5 | 1.0 |
| SK-40 | 0.35~0.6 | 0.082 | 3.3~5.1 | 2.9 |
| SK-60 | 0.35~0.6 | 0.228 | 7.1~10.8 | 7.8 |
| SK-80 | 0.35~0.6 | 0.455 | 19.3~29.5 | 11.8 |
| SK-100 | 0.35~0.6 | 1.012 | 44.5~67.9 | 35.2 |
3. Structure and Dimension
| Type | ΦA | B | ΦC | D | E | ΦF | G | H | PCDH | S | T | ΦY | R |
| SK30 | 65 | 15 | 70 | 10 | 4 | 9 | 1/8 | 110 | 55 | 6 | 40 | 27.2 | 1/4 |
| SK40 | 90 | 22 | 95 | 16 | 4 | 11 | 1/8 | 160 | 70 | 12 | 90 | 34 | 1/4 |
| SK60 | 120 | 30 | 140 | 16 | 4 | 15 | 1/4 | 210 | 110 | 12 | 100 | 76.3 | 1/4 |
| SK80 | 139 | 40 | 150 | 18 | 4 | 17 | 3/8 | 250 | 120 | 14 | 110 | 76.3 | 3/8 |
| SK100 | 176 | 44 | 210 | 24 | 6 | 21 | 3/8 | 328 | 170 | 22 | 145 | 114.3 | 3/8 |
