SMC CJP Series Pin Cylinder/Single Acting Spring Return

1. CJP series pneumatic cylinders has two mounting types: plug mounting and panel mounting
2. Bore: 6mm, 10mm and 15mm
3. Stroke: 5mm, 10mm, and 15mm
4. If you have any need in this respect, please contact freely

Quantity:
  • CJP series
  • SMC
  • 0047
  • Aluminium
  • 0.7MPa
  • –10 to 70°C (Non-freezing)
  • 50 to 500mm/s
1. Product Name: SMC CJP Series Pin Cylinder/Single Acting Spring Return

2. Order code
order code
3. Description

A short stroke miniature cylinder with a shorter overall length.
The installation space can be significantly reduced because this cylinder can be recessed directly into a machine body or installed on a panel. Thus, the machines can be made more compact.
4. Specification
Action  Single acting spring return
Max. operating pressure 0.7MPa
Min. operating pressure ø6 0.2MPa
ø10, ø15 0.15MPa
Proof pressure 1.05MPa
Ambient and fluid temperature –10 to 70°C (Non-freezing)
Lubrication Not required
Operating piston speed 50 to 500mm/s
Cushion None
Stroke tolerance +1.0~0
Thread tolerance JIS 2 class
Rod end thread With thread/Without thread
Mounting method Panel mounting Plug mounting
Standard accessories Mounting nut (2) Mounting nut (1)
Hose nipple (1) Gasket (1)
Rod end nut (2)* Rod end nut (2)*
5. Standard Strokes
Bore size (mm) Stroke (mm)
6 5, 10, 15
10 5, 10, 15
15 5, 10, 15
6. Weight
Model Stroke (mm)
5 10 15
CJP□6 10.6 13.1 15.6
CJP□10 28 33 38
CJP□15 72 82 92
Unit: g
7. Construction componentparts
Construction

NO. Description Material Note
Cover Brass Electroless nickel plated
Piston Stainless steel
Collar Brass
Return spring Piano wire Zinc chromate
Piston seal NBR
Gasket NBR Special product (O ring) Plug mounting only
Mounting nut Brass Electroless nickel plated
Rod end nut Steel Nickel plated
8. Mounting type
Mounting type

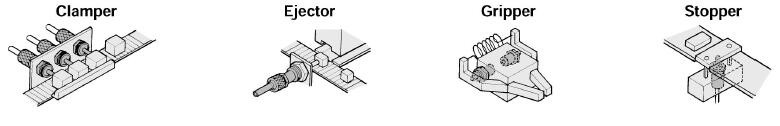

9. Application ExamplesApplication Examples
Application Examples
10. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. Also we can send by your delivery acount if you want.
3. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
11. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
