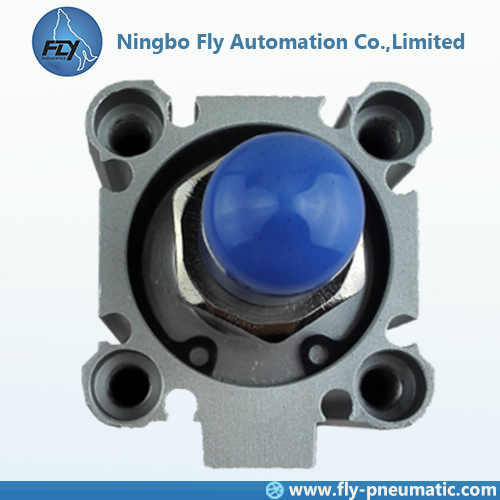

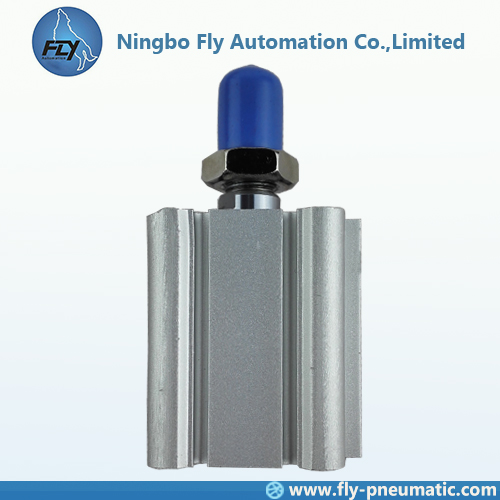

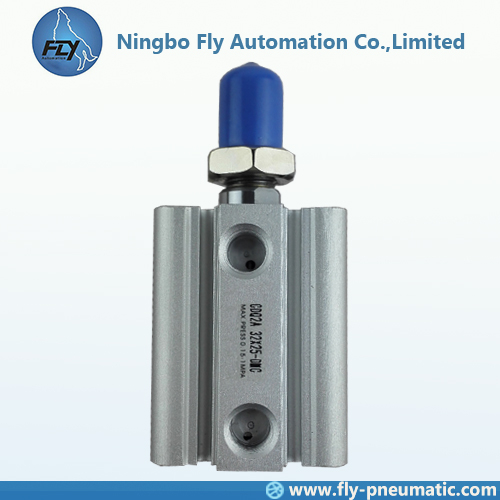

SMC CQ2 series Compact cylinder CDQ2A32X25DMC Standard double acting

SMC CQ2 series cylinder has two types, CQ2 and CDQ2 series. CQ2 without auto switch, CDQ2 with auto witch and built-in magnet.

Quantity:
  • CDQ2A32X25DMC
  • SMC
  • 0009
  • Aluminium alloy
  • 32mm
  • 25mm
  • 0.1~1.0MPa
  • -10 to +70℃
  • Double acting
1: Product Name: SMC CQ2 series Compact cylinder CDQ2A32X25DMC Standard double acting

2: Order Code
order code3: Specification

Bore(mm) 12 16 20 25 32 40 50 63 80 100
Fluid Air
Action Double acting, single rod
Proof pressure 1.5MPa
Maximum operating pressure  1.0 Mpa
Minimum operating pressure
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication Lubrication
Piston speed 50 to 500 mm/s
Allowable kinetic energy (J) 0.02 0.04 0.06 0.09 0.15 0.26 0.46 0.77 1.36 2.27
Stroke length tolerance +1.0 mm Note)
0
4: Stroke Standard
Bore Size Standard Stroke
20, 25 5, 10, 15, 20, 25, 30, 35, 40, 45, 50
32, 40 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100
50, 63, 80, 100 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100
5: Weight
Bore size (mm)
5 10 15 20 25 30 35 40 45 50 75 100
12 29 35 41 47 54 60 - - - - - -
16 42 50 59 67 76 84 - - - - - -
20 63 75 88 101 114 127 140 152 165 178 - -
25 86 100 115 129 144 158 173 187 202 216 - -
32 125 145 165 184 204 224 244 263 283 303 448 547
40 187 208 230 251 273 294 315 337 358 380 552 664
50 - 339 372 405 438 471 504 537 570 603 872 1043
63 - 480 518 556 594 632 670 708 746 784 1112 1308
80 - 916 976 1036 1097 1157 1217 1277 1338 1398 1917 2215
100 - 1608 1688 1768 1849 1929 2010 2090 2170 2251 2982 3391
6: Installation Caution
1. Allowable lateral load
Lateral load that can apply to the piston rod end is limited. If a cylinder is used with
a lateral load over the limit, it may cause air leakage due to abnormal friction of seals, galling of cylinder tubes and pistons, or abnormal friction of the bearing part. The lateral load applied to the piston rod must be within the allowable range indicated in this catalog. When the load exceeds the limit, use a double rod cylinder, install a guide, or change the bore size to suit the load in order to make the load within the allowable range. As a standard product, an anti-lateral load type cylinder that is resistant to approx. 2 times more than the conventional compact CQ2 series is also available (page 128).
2. Connection with a work piece
When a work piece is mounted on the piston rod end, connect them aligning the center of piston rod and a work piece. If they are offcenter, lateral load is generated and phenomena mentioned in (1) may occur. In order not to apply the off-center load, use of a floating joint or simple joint is recommended.
3. Simultaneous use of multiple cylinders
It is difficult to control the speed of pneumatic cylinders. The following conditions cause speed change: change in supply pressure, load, temperature and lubrication, performance difference of each cylinder, deterioration of each part over time, etc. A speed controller can be used to control the speed of multiple cylinders simultaneously for a short period of time, but depending on conditions, it may not work as desired. If multiple cylinders cannot operate simultaneously, unreasonable force is applied to the piston rod because cylinder positions may not be the same. This may cause abnormal friction of seals and bearings, and galling of cylinder tubes and pistons. Do not use an application to operate several cylinders simultaneously by adjusting cylinder speed. If this is inevitable, use a high rigid guide against load, so that the cylinder is not damaged even when the each cylinder output is slightly different.
7: Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
8: Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
9: After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
