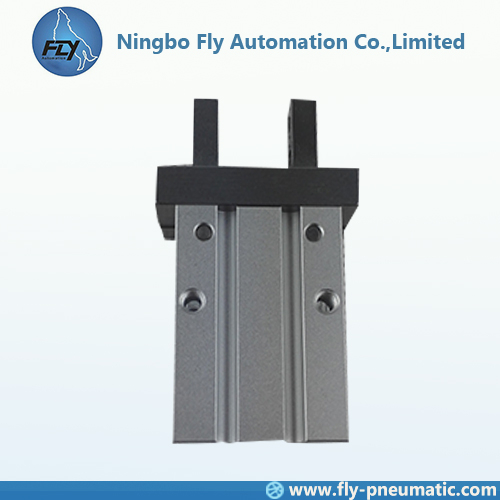

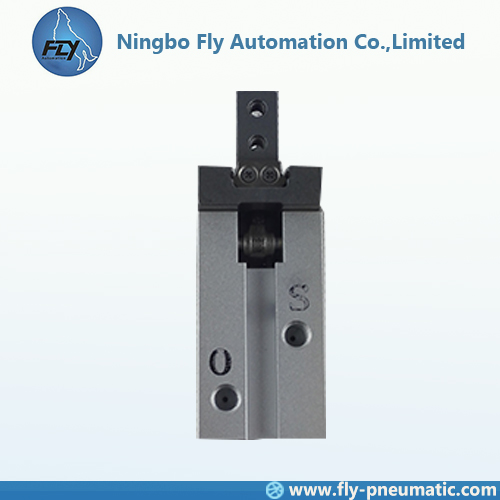

SMC Standard MHZ2 series Parallel type air gripper MHZ2-16D Double acting

1. Other types contact freely, please!
2. MHZ2-16D means: 2 fingers, 16mm bore
3. Integral guide rail construction
4. High degree of mounting flexibility

Quantity:
  • MHZ2-16D
  • SMC
  • 0032
  • Aluminium
  • 2
  • 16mm
  • 0.1~0.7MPa
  • -10 to +60℃
1. Product Name: SMC Standard MHZ2 series Parallel type air gripper MHZ2-16D Double acting

2. Order Code:
order code


3. Specifications
Operating
pressure
Double acting Φ6: 0.15 to 0.7MPa
Φ10: 0.2 to 0.7MPa
Φ6 to Φ40: 0.1 to 0.7MPa
Single acting Normally open Φ6: 0.3 to 0.7MPa
Φ10: 0.35 to 0.7MPa
Φ6 to Φ40: 0.25 to 0.7MPa
Normally closed
Ambient and fluid temperature –10 to 60 °C
Repeatability Φ6 to Φ25: ±0.01mm
Φ32 to Φ40: ±0.02mm
Maximum operating frequency Φ6 to Φ25: 180c.p.m.
Φ32 to Φ40: 60c.p.m.
Lubrication Non-lube
Action Double acting, Single acting
Auto switch (option) Note) Solid state switch (3 wire, 2 wire)
Note) Refer to pages 48 through 60 for details regarding auto switch specifications.

4. Models
Action Model Bore
size
(mm)
Gripping force ① Opening/
Closing
stroke
(both sides)
mm
Weightg
Gripping force per finger Effective value N
External
gripping force
Internal
gripping force
Double acting MHZ2-6D 6 3.3 6.1 4 27
MHZ2-10D(N) 10 11 17 4 55
MHZ2-16D(N) 16 34 45 6 115
MHZ2-20D(N) 20 42 66 10 235
MHZ2-25D(N) 25 65 104 14 430
MHZ2-32D 32 158 193 22 715
MHZ2-40D 40 254 318 30 1275
Single
acting
Normally open MHZ2-6S 6 1.9 _ 4 27
MHZ2-10S(N) 10 7.1 4 55
MHZ2-16S(N) 16 27 6 115
MHZ2-20S(N) 20 33 10 240
MHZ2-25D(N) 25 45 14 435
MHZ2-32S 32 131 22 760
MHZ2-40S 40 217 30 1370
Normally closed MHZ2-6C 6 _ 3.7 4 27
MHZ2-10C(N) 10 13 4 55
MHZ2-16C(N) 16 38 6 115
MHZ2-20C(N) 20 57 10 240
MHZ2-25C(N) 25 83 14 430
MHZ2-32C 32 161 22 760
MHZ2-40C 40 267 30 1370
Note 1) Values based on pressure of 0.5MPa, gripping point L = 20mm, at center of stroke.
Note 2) Values excluding weight of auto switch.



5. Structures
structure

6. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
3. Also we can send by your delivery acount if you want.
4. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

7. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

8. Serves Time
0:00 - 23:59
From Monday to Sunday
